Complete Briquette Production Line – up to 4 t/h
- Turns charcoal fines, biochar, sawdust and agricultural residues into fuel briquettes
- Crusher, ribbon blender, briquette press, conveyors and storage bin in one line
- HF briquette press producing up to 4 tonnes per hour
- Ribbon blenders of 330 kg or 660 kg for starch-type binders
- For small, medium and large briquette businesses
Product Specifications
Product information
A Ritingwe briquette line takes loose charcoal fines, biochar or sawdust and turns it into a saleable, easy-to-handle fuel. Each machine can be bought on its own or as part of the full line.

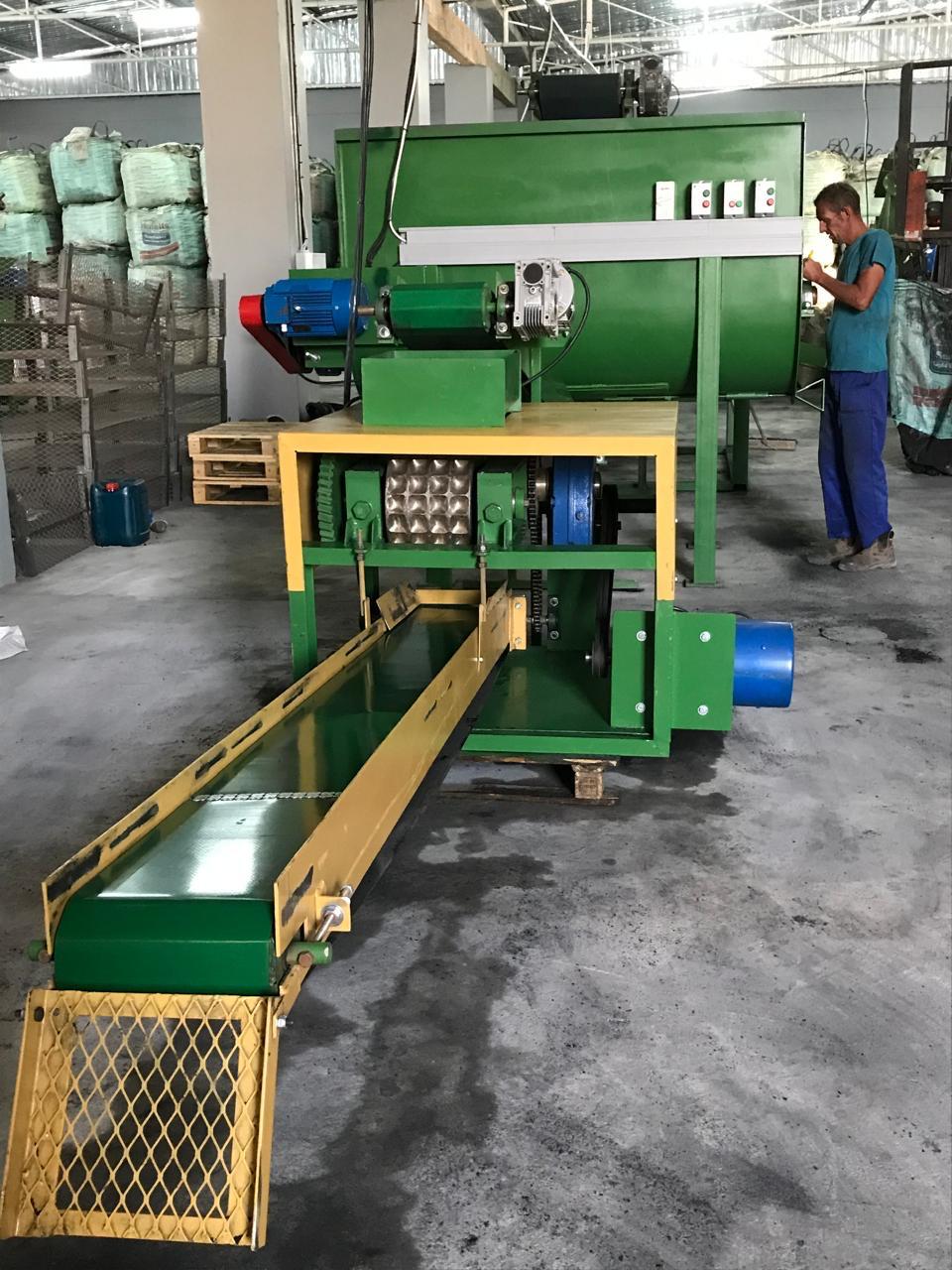

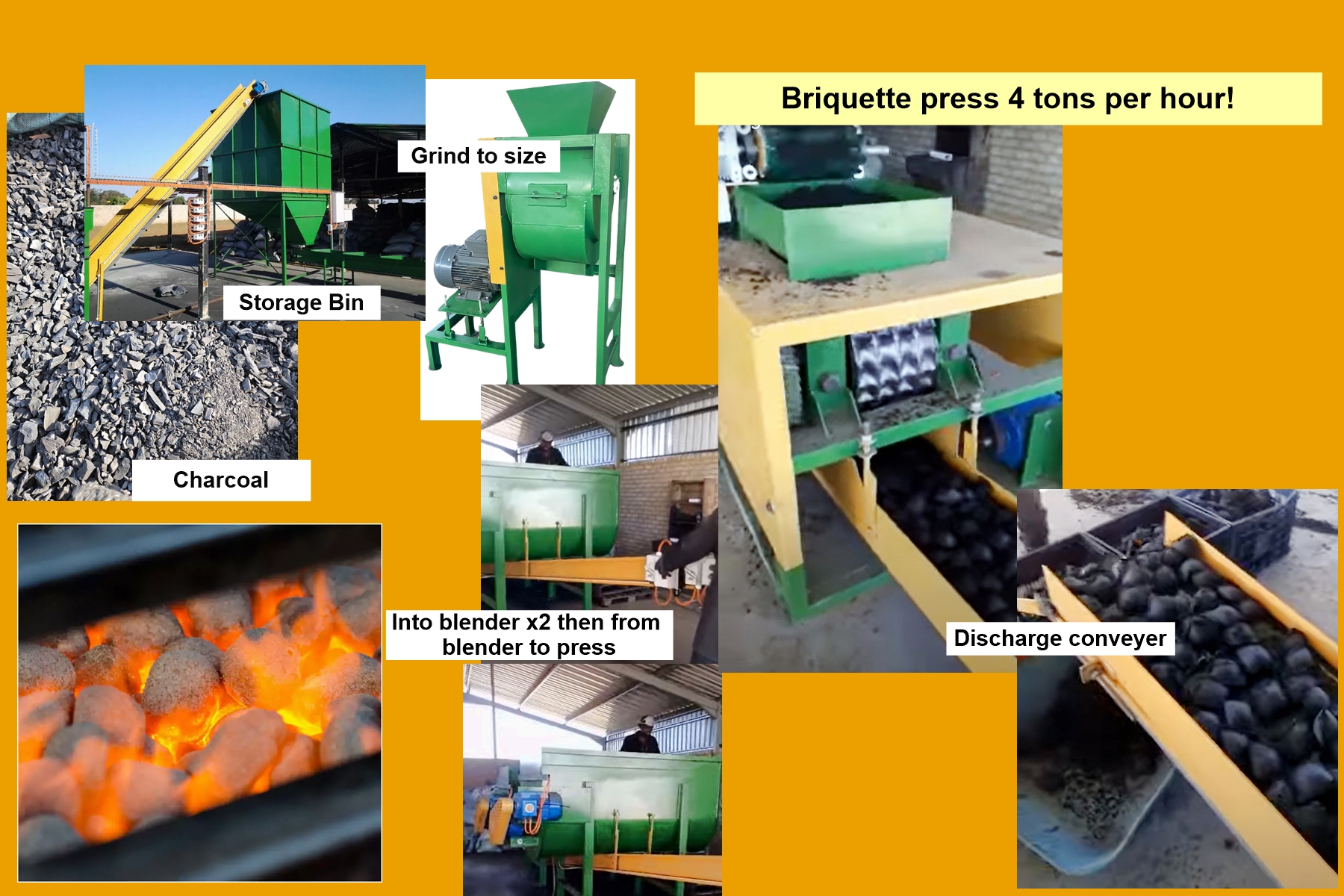

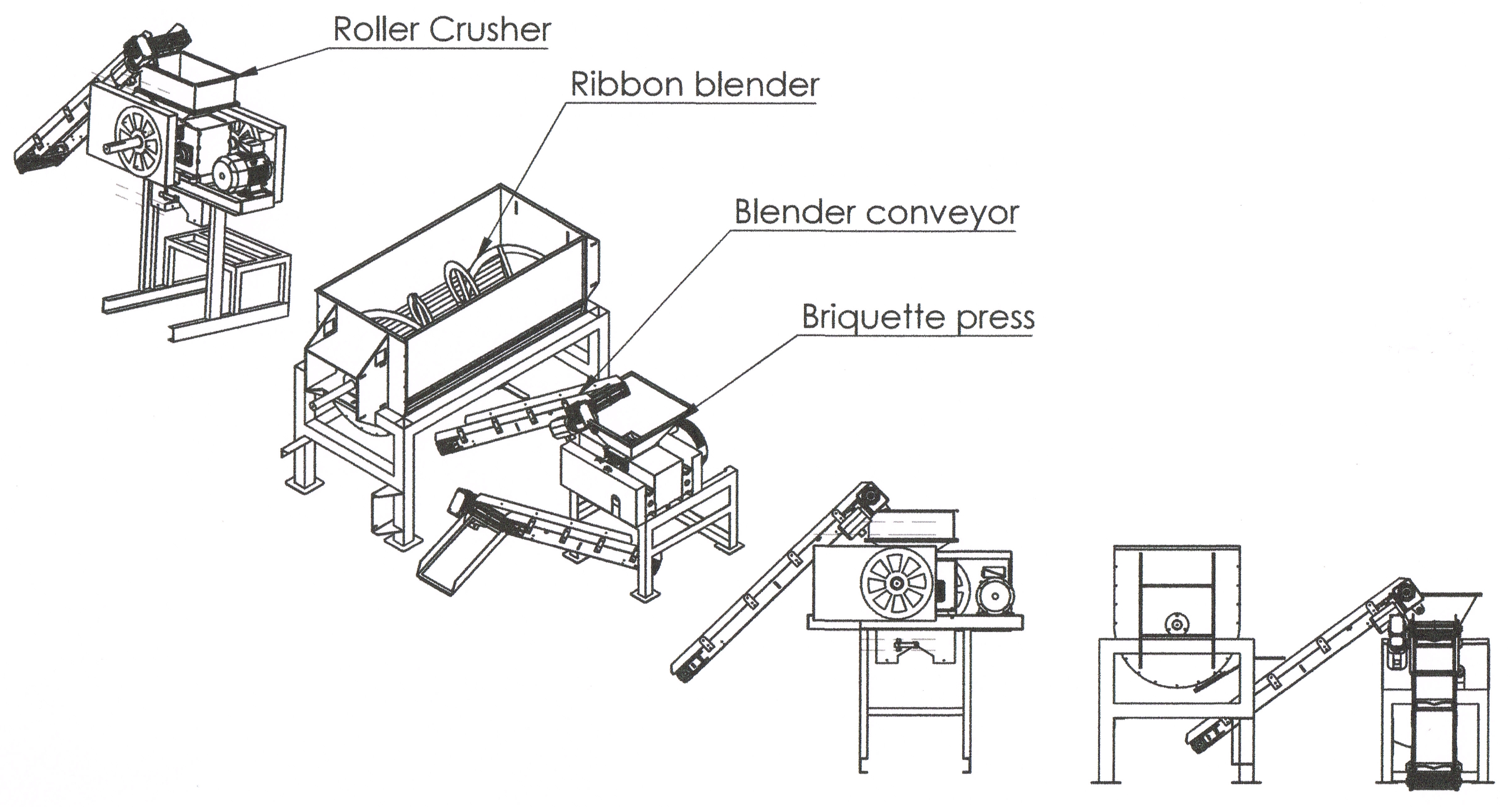

How the line works

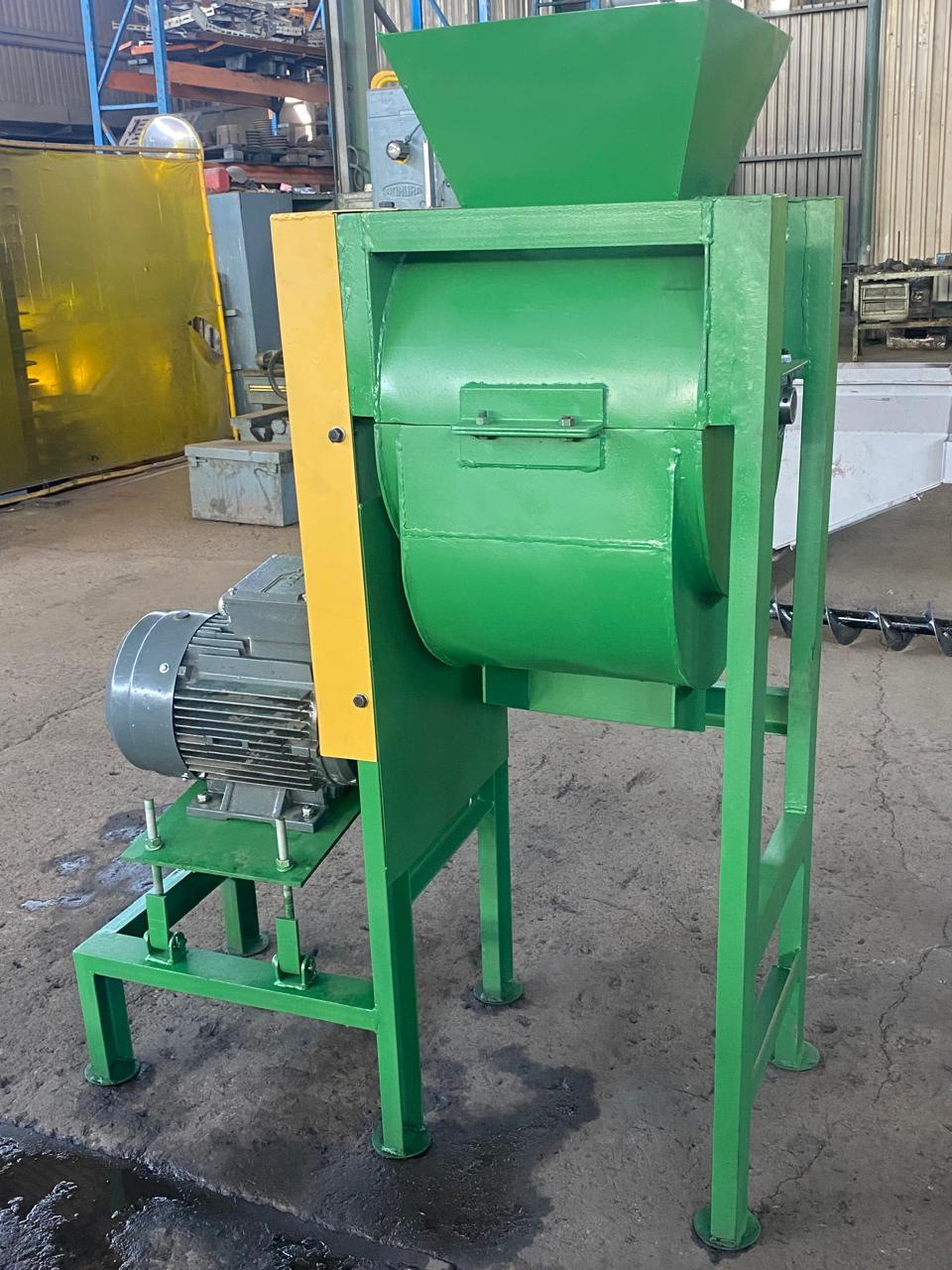

1. Crusher – reduces the material to fine, even dust (about 4 t/h, 11 kW).

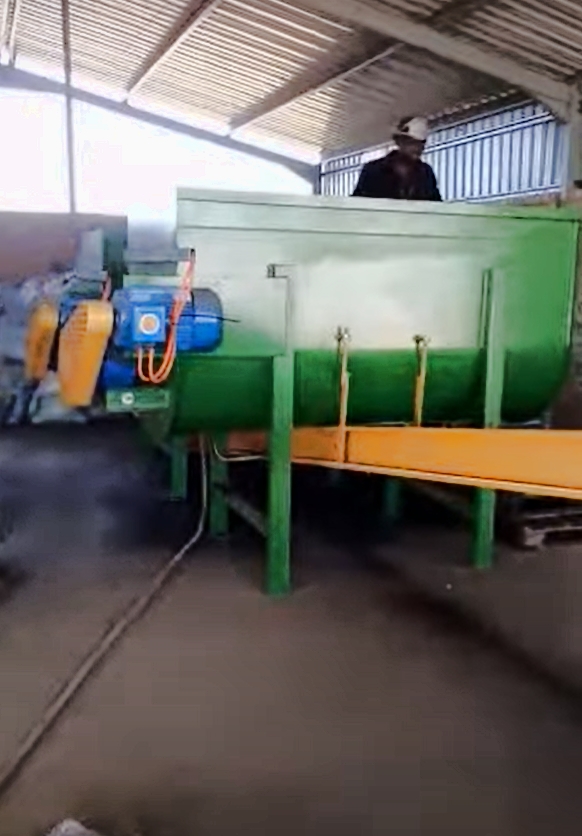

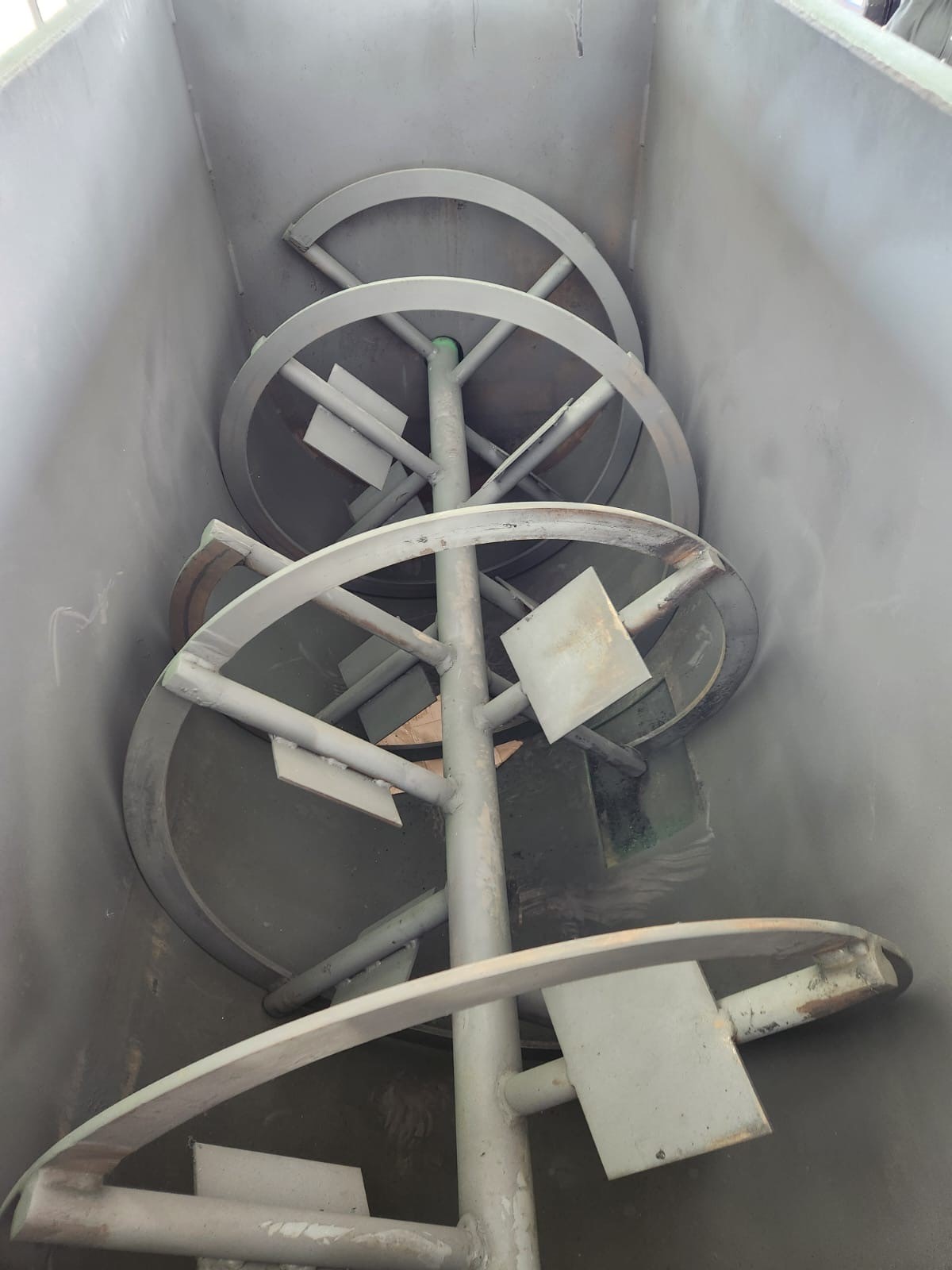

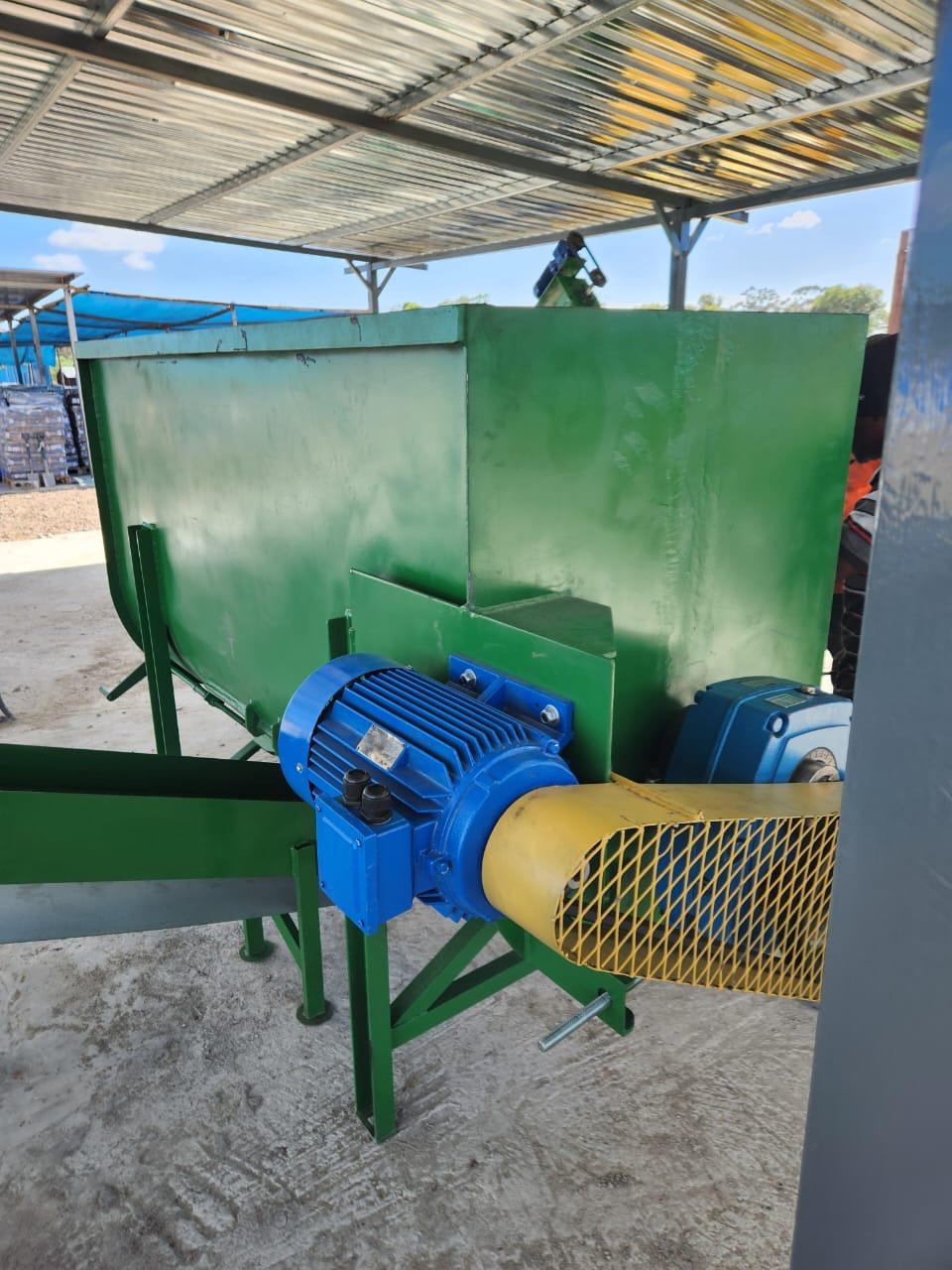

2. Ribbon blender – mixes in a starch-type binder (330 kg or 660 kg batches).

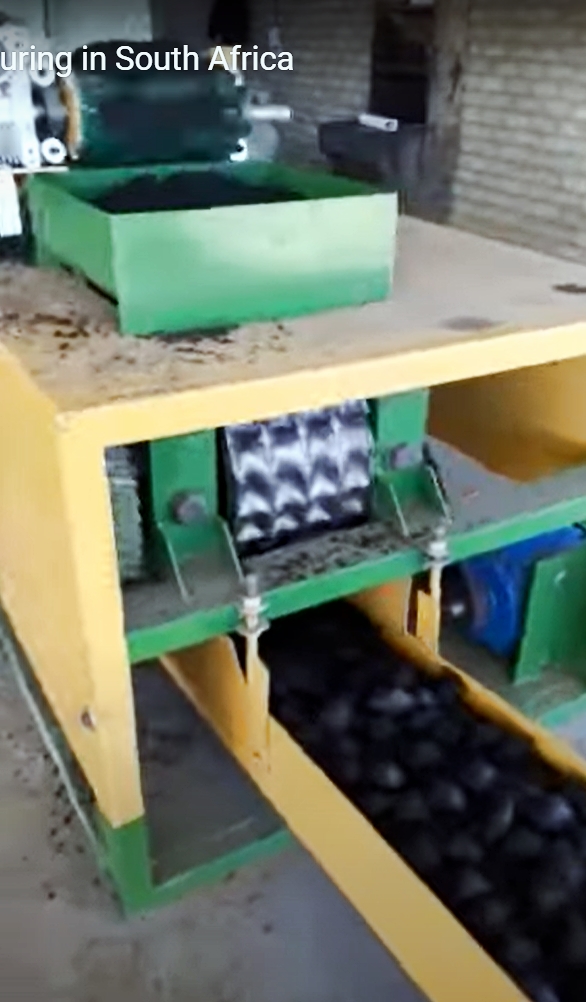

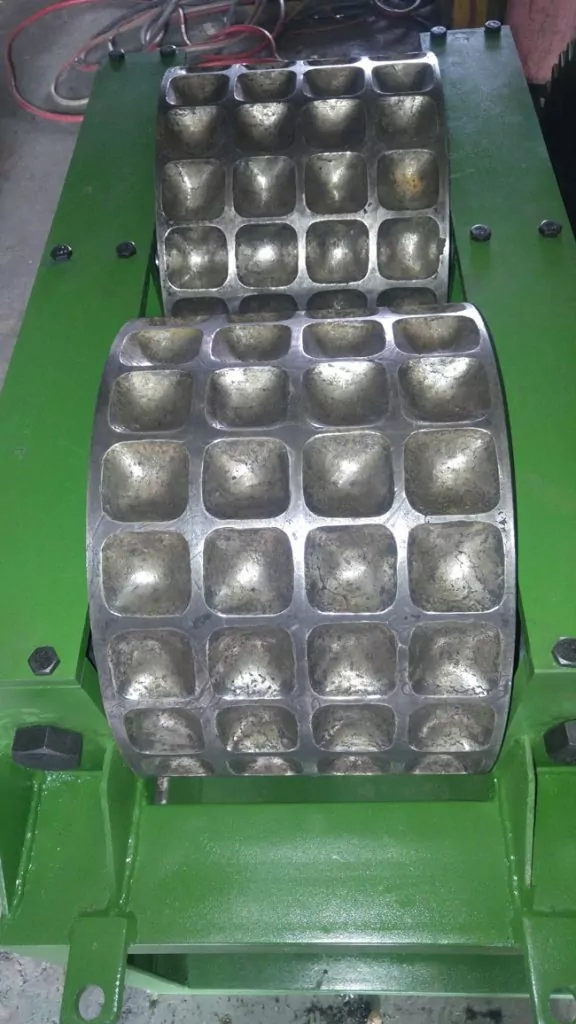

3. HF briquette press – presses up to 4 tonnes of briquettes per hour.

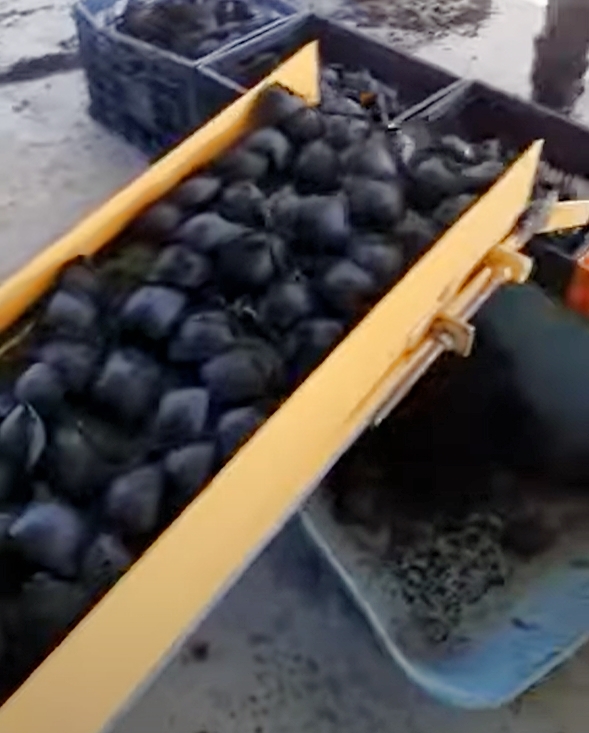

4. Conveyors and storage bin – move material between stages and hold up to 4 tonnes.
Frequently asked questions
What can I make briquettes from?
Charcoal and biochar fines, sawdust and agricultural residues.
Can I start small?
Yes. Machines are sold individually, and there is a hand-operated press for small projects.
Full specifications

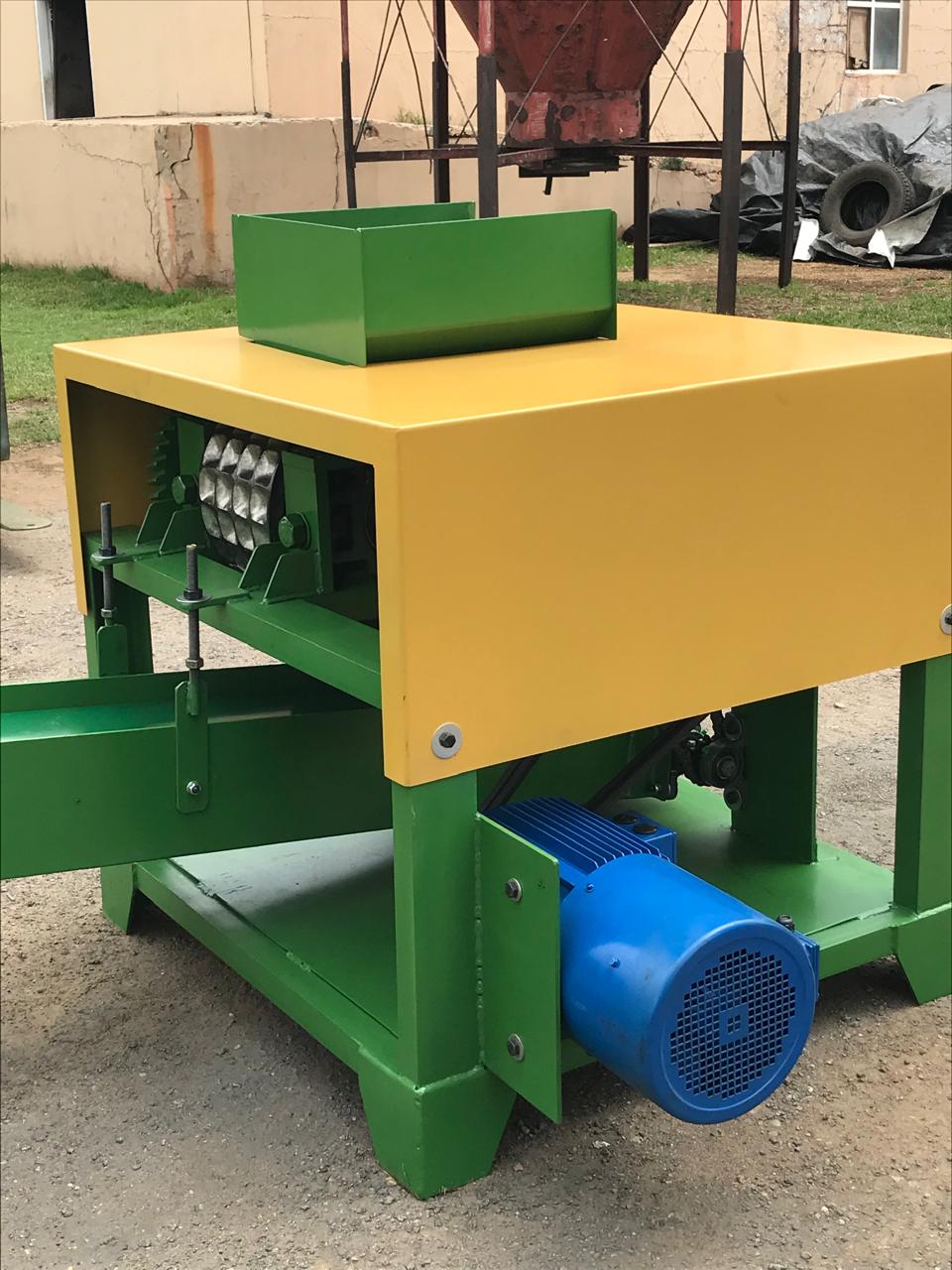

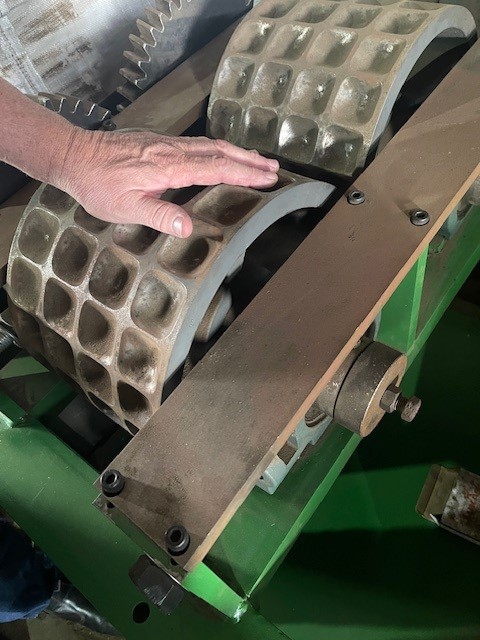

HF press
| Production | Up to 4 t/h |
| Power | 2.2 kW, 380 V |
| Dimensions | 1,100 L × 1,200 H × 1,000 W mm |
| Weight | 870 kg |
Blender 330
| Capacity | 330 kg |
| Power | 9.2 kW |
| Weight | 1,000 kg |
Blender 660
| Capacity | 660 kg |
| Power | 9.2 kW |
| Weight | 1,400 kg |
Crusher
| Production | About 4 t/h |
| Power | 11 kW |
| Weight | 500 kg |
Storage bin
| Capacity | 4 t, with loading conveyor |
Conveyors
| Discharge | 3 m × 300 or 400 mm |
