Lippel Dragon 1200 Forestry Drum Chipper – up to 60 m³/h
- Heavy forestry drum chipper from Lippel, Brazil
- Chips soft logs up to 330 mm and hard logs up to 280 mm
- Up to 60 m³ of chips per hour

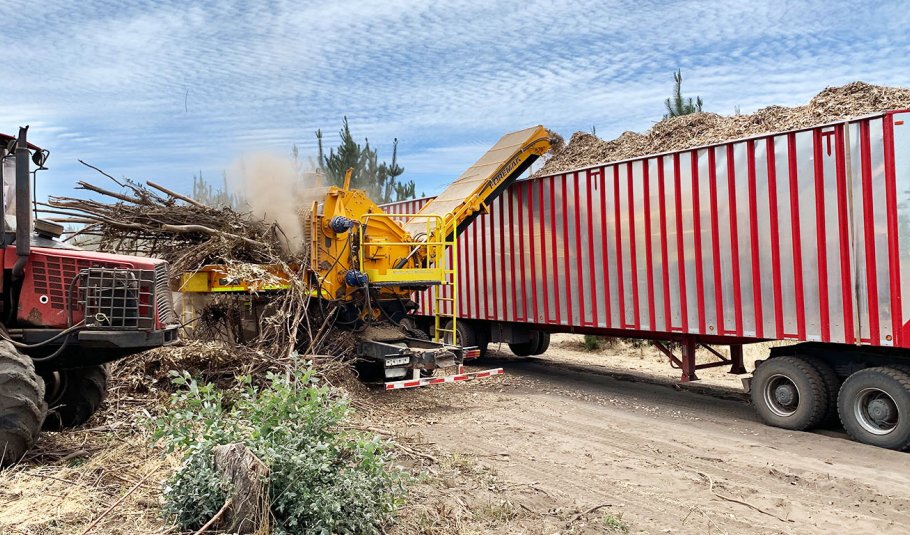

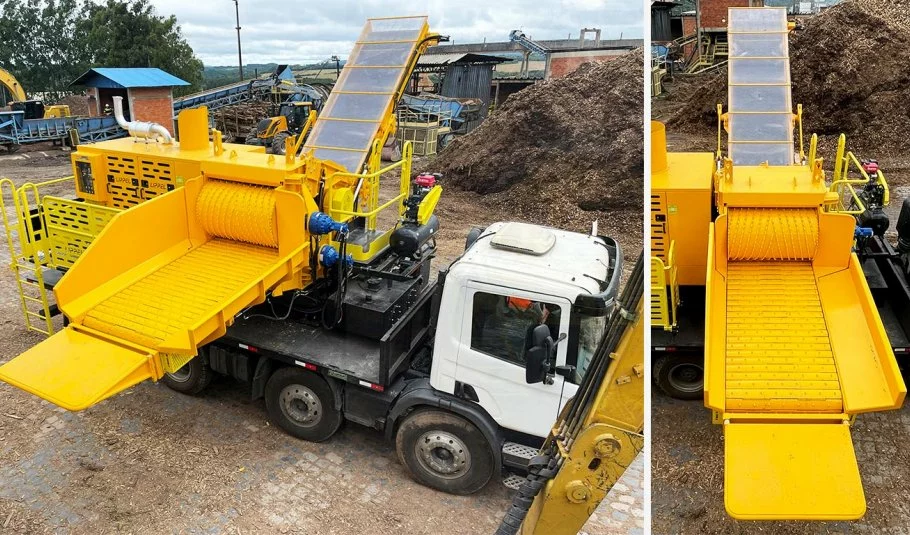

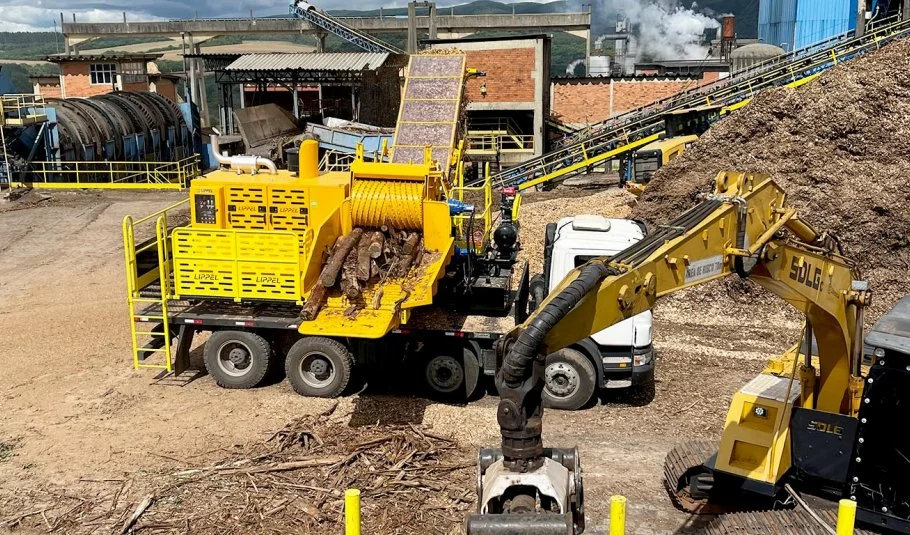

- Mounted across the chassis so it can work side-on to the wood pile
- NO-STRESS controller adjusts the feed to protect the engine and keep output steady
- Feed opening
- 525 × 400 mm
- Branches
- Up to 380 mm
- Soft logs
- Up to 330 mm
- Hard logs
- Up to 280 mm
- Output
- Up to 60 m³/h
- Rotor diameter
- 560 mm
Product Specifications
Product information
The Dragon 1200 is a Lippel forestry drum chipper for contractors and biomass producers who process large volumes of logs and branches. Ritingwe supplies and supports the Lippel range in Southern Africa.
How it works

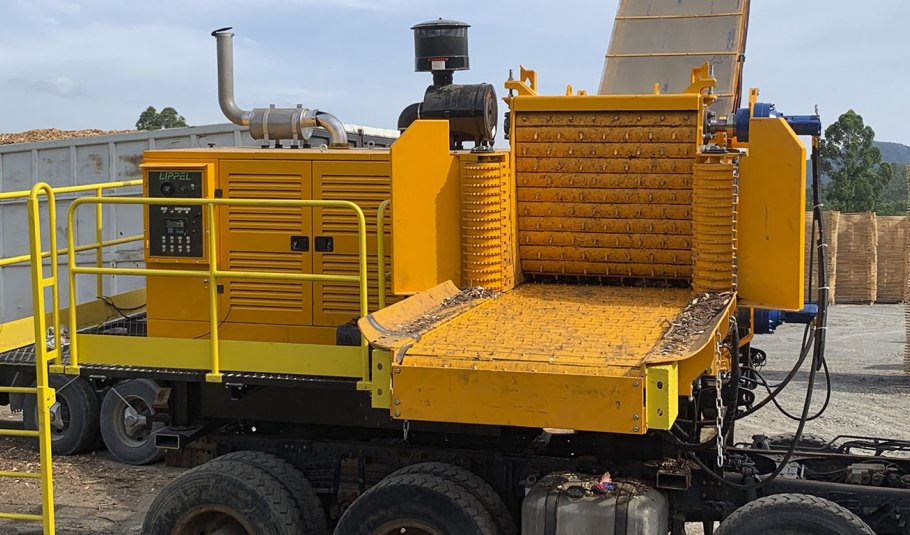

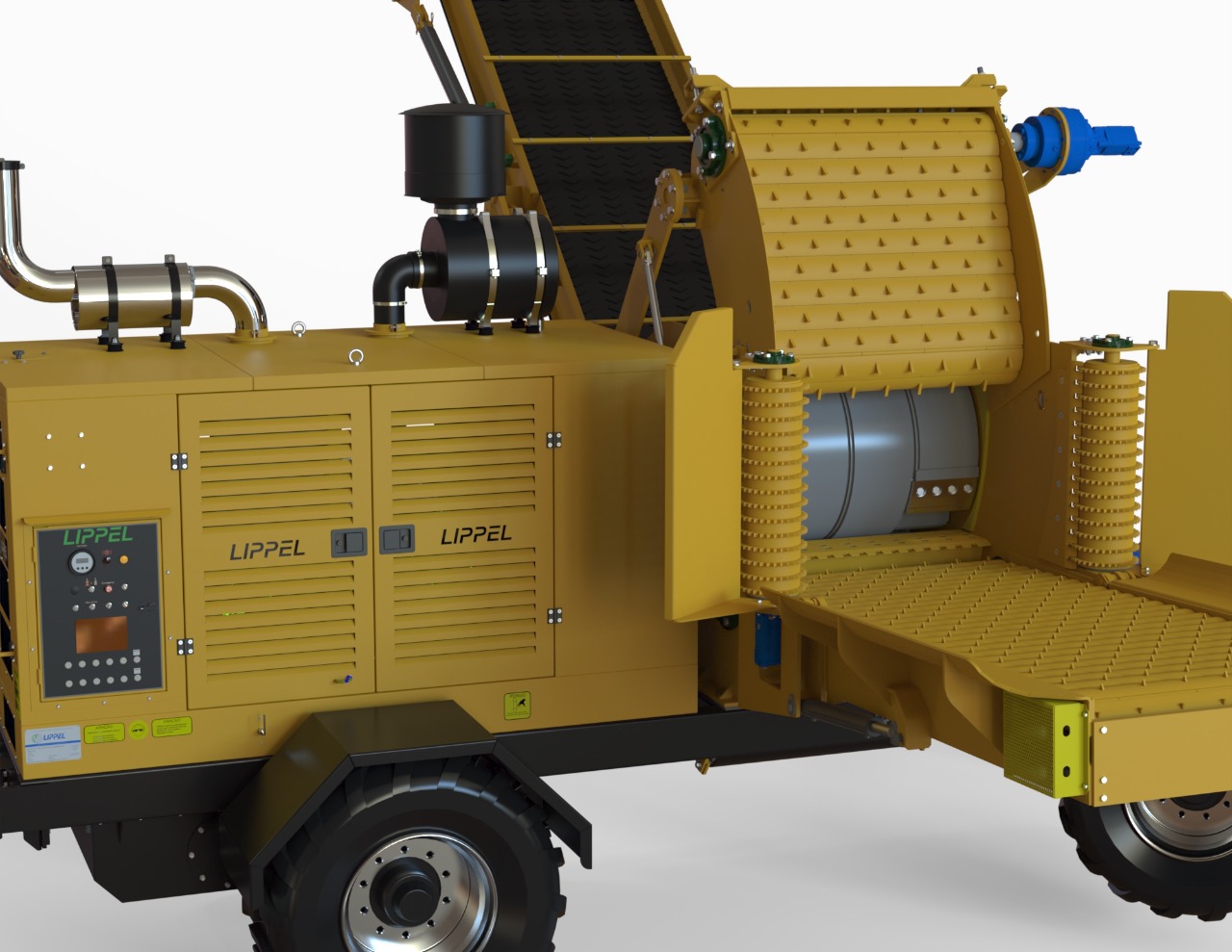

A 560 mm drum with segmented knives does the cutting, and a 450 mm traction roller pulls material in. The chipper is mounted across the chassis, so it can be parked alongside the wood pile and fed without repositioning. The NO-STRESS controller monitors the drum and adjusts the feed speed automatically.
Features
- Segmented knife system with 3 or 6 knives
- Adjustable chip length, with a 30–100 mm sieve
- Chip discharge at 4.8 m height
- All functions on a control panel at the operator's hand
Where it is used
- Forestry and plantation residues
- Biomass fuel chip production
- Land clearing and large-scale wood waste
Frequently asked questions
How big a log can it chip?
Up to 330 mm soft logs, 280 mm hard logs and 380 mm branches.
Are larger models available?
Yes, the Dragon 1500 (up to 70 m³/h) and the Hercules 1400 whole-tree chipper.
Full specifications
Capacity
| Feed opening | 525 × 400 mm |
| Branches | Up to 380 mm |
| Soft logs | Up to 330 mm |
| Hard logs | Up to 280 mm |
| Output | Up to 60 m³/h |
Cutting
| Rotor diameter | 560 mm |
| Knives | 3 or 6, segmented |
| Sieve | 30–100 mm |
Feeding
| Traction roller | 450 mm diameter |
| Feed belt length | 2,000 mm |
| Feed chute width | 1,550 mm |
Machine
| Discharge height | 4,800 mm |
| Transport size (L × W × H) | 5,000 × 2,950 × 3,100 mm |
| Weight | About 7,500 kg |
