Lippel Hercules 1400 Whole-Tree Chipper – 611 hp
- Whole-tree drum chipper from Lippel, Brazil, with a 1,400 × 600 mm infeed
- Chips wood up to 500 mm diameter
- Estimated output up to 100 tonnes per hour
- Own 611 hp diesel engine on a road-approved chassis
- NO-STRESS electronics control the infeed automatically to protect the drum and engine
- Infeed opening (W × H)
- 1,400 × 600 mm
- Chipping capacity
- Up to 500 mm
- Estimated output
- Up to 100 t/h
- Infeed chute length
- 3,600 mm
- Traction roller
- 900 mm diameter
- Engine
- 611 hp electronic diesel (TAD 1345 GE)
Product Specifications
Product information

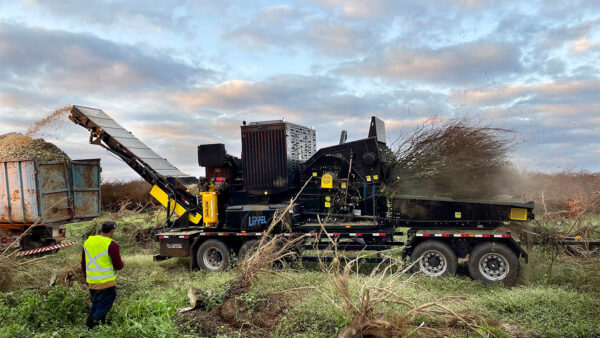

The Hercules 1400 is Lippel's whole-tree forestry chipper for large biomass and land-clearing operations. It takes whole trees and crowns through a 1,400 mm wide infeed and chips it at industrial rates. Ritingwe supplies and supports the Lippel range in Southern Africa.
How it works

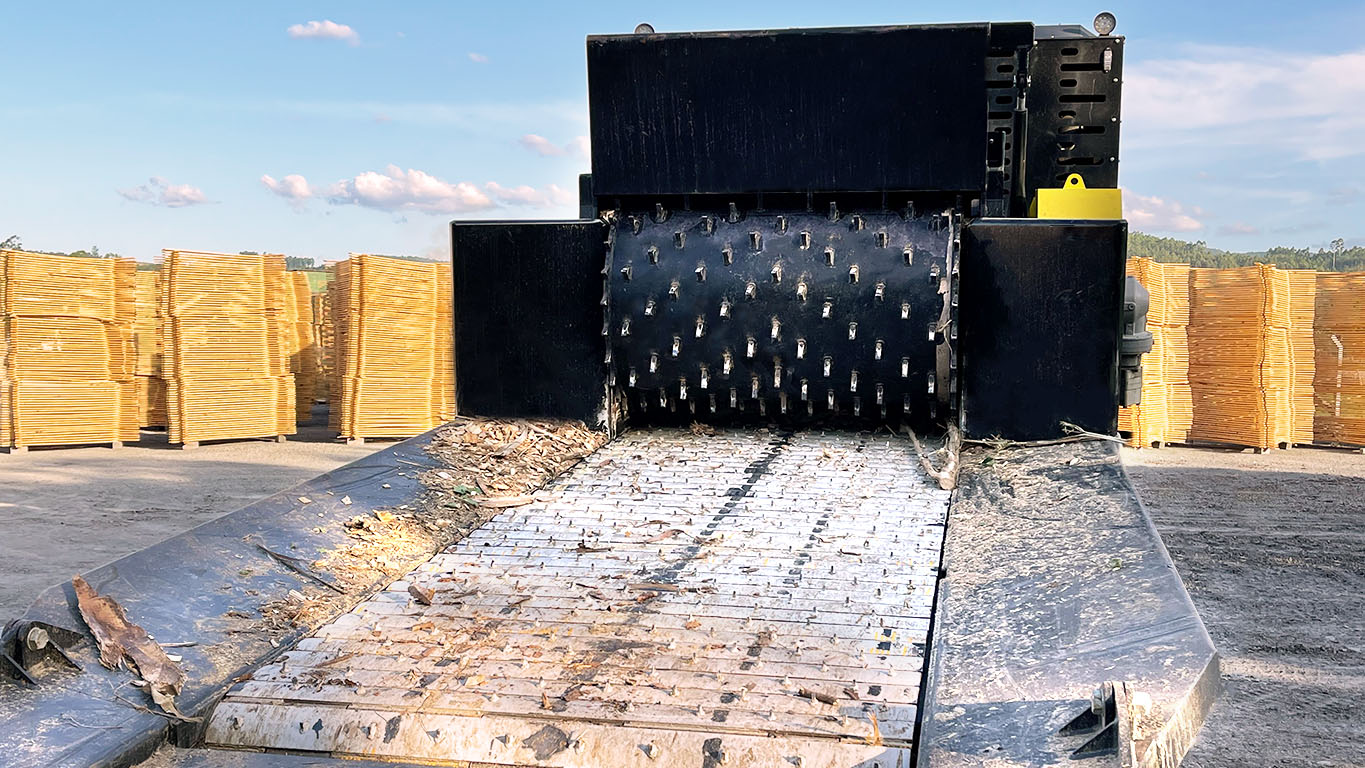

A drum cutting system does the chipping, powered by an on-board electronic diesel engine. 900 mm traction rollers pull material in along a 3.6 m infeed chute. The NO-STRESS system continuously monitors drum speed and automatically controls the infeed so the drum never stalls.
Where it is used

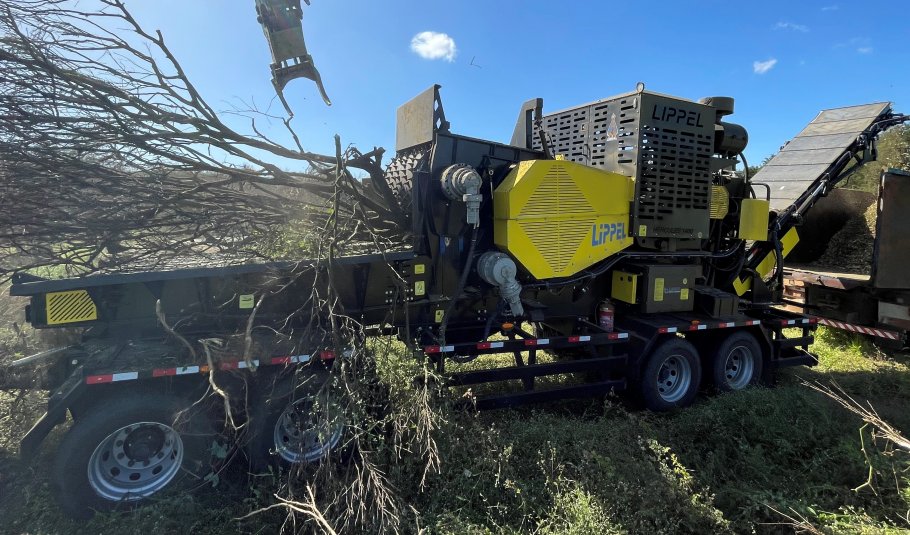

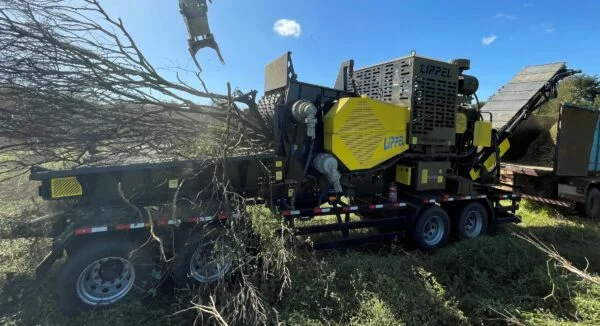

- Whole trees, crowns and branches in forestry
- Biomass fuel chip production

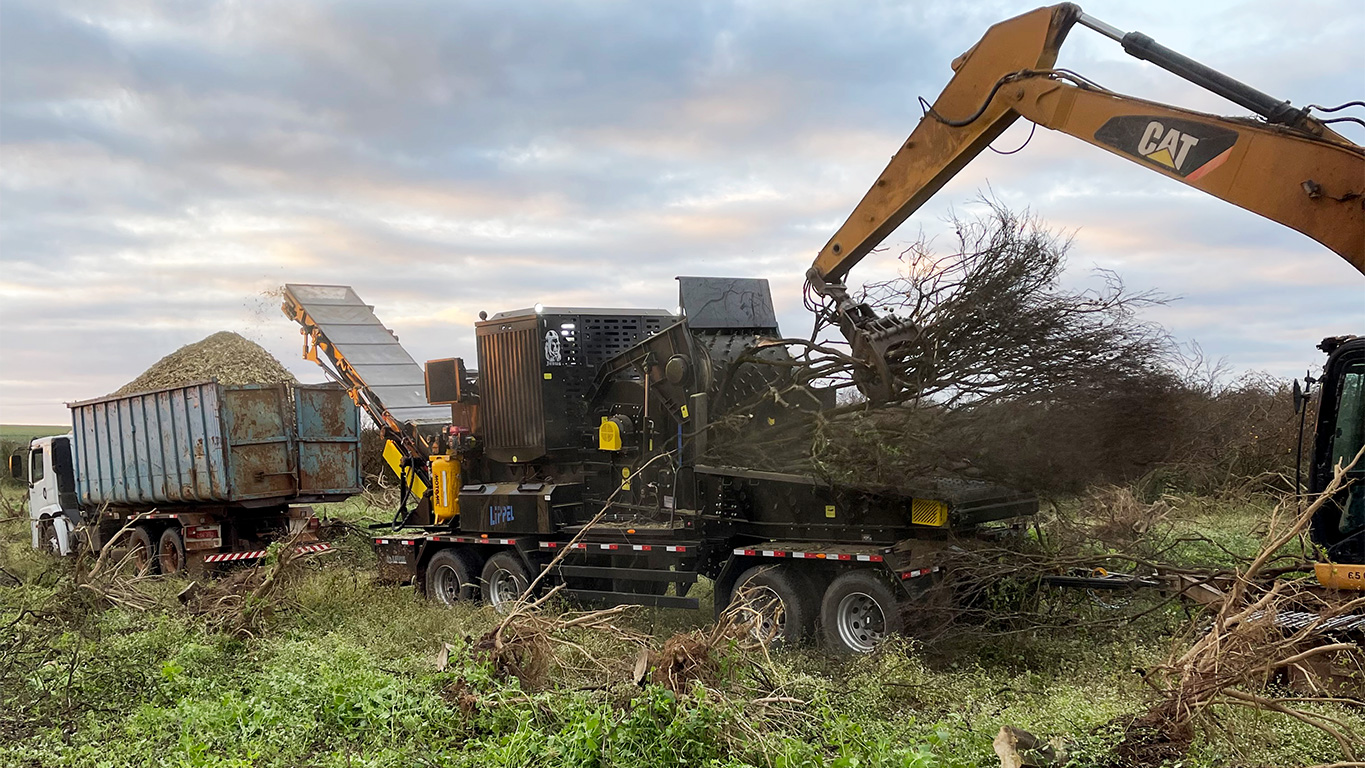

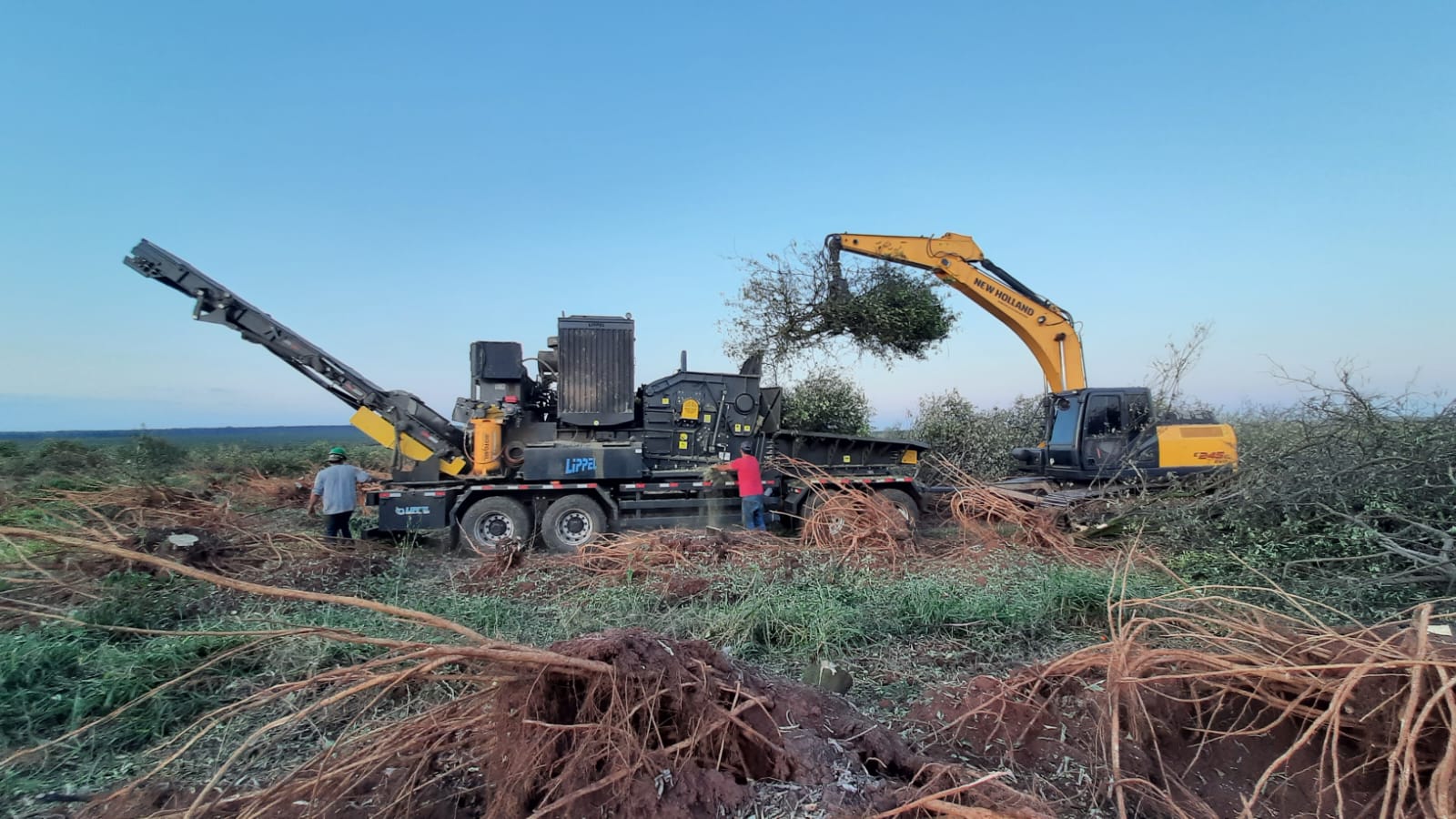

- Large land-clearing projects
Frequently asked questions
How big a tree can it take?
Wood up to 500 mm diameter, through a 1,400 × 600 mm infeed.
Can it travel on the road?

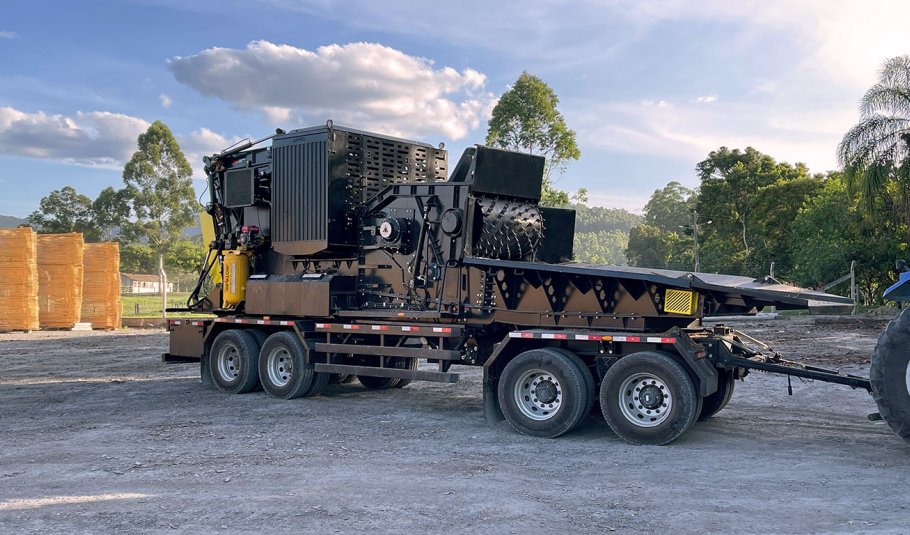

Yes, the chassis is road approved, with two front and two rear axles.
Is there a smaller Lippel chipper?
Yes, the Dragon range (up to 70 m³/h) and the PDF disc chippers for tractors.
Full specifications
Capacity
| Infeed opening (W × H) | 1,400 × 600 mm |
| Chipping capacity | Up to 500 mm |
| Estimated output | Up to 100 t/h |
Feeding

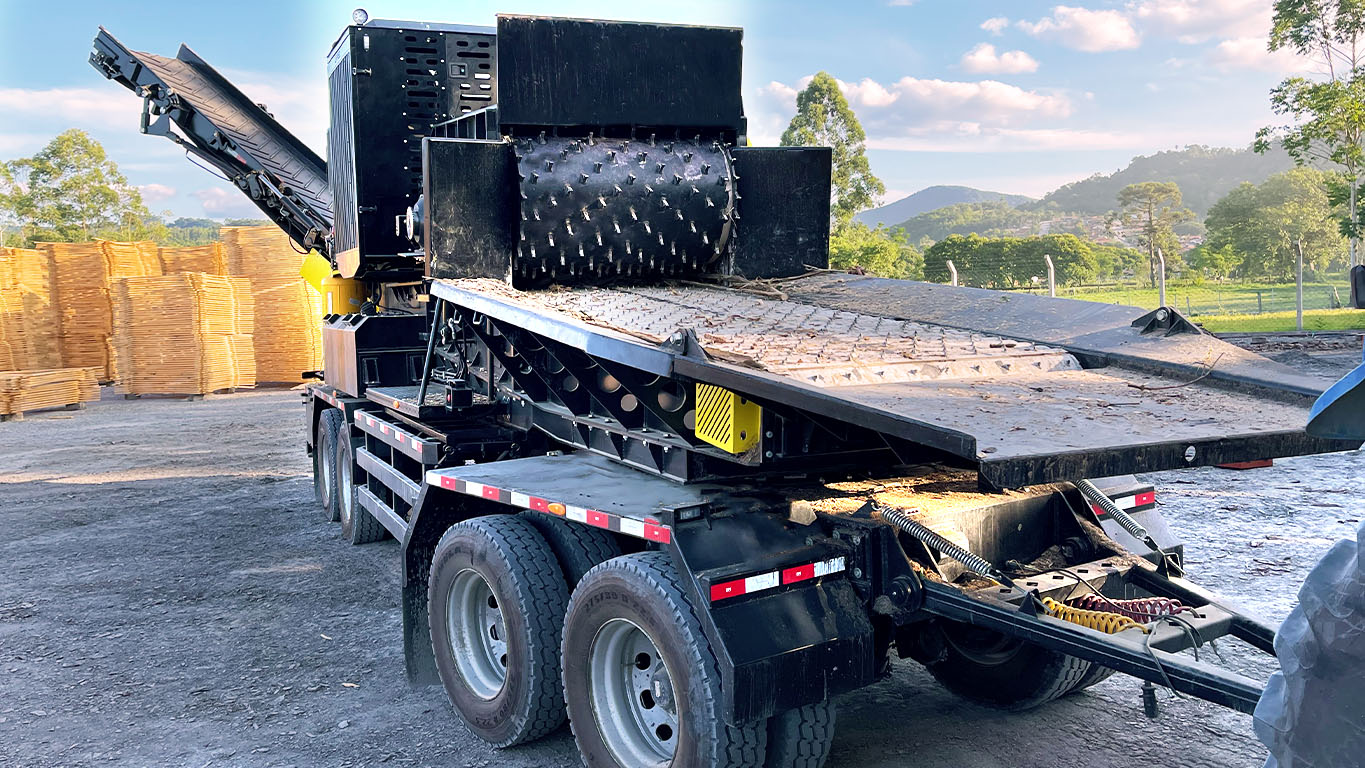

| Infeed chute length | 3,600 mm |
| Traction roller | 900 mm diameter |
Power
| Engine | 611 hp electronic diesel (TAD 1345 GE) |
| Engine speed | 1,800 rpm |
Hydraulics
| Operating pressure | 180–210 bar |
| Oil tank | About 740 L |
Machine
| Diesel tank | About 520 L |
| Discharge height | About 5,000 mm |
| Chassis | Road approved, 2 front and 2 rear axles |
