Products / Kon-Tiki Biochar Kiln / Kon-Tiki Flame-Curtain Biochar Kilns – 500 to 3,500 Litres
Kon-Tiki Flame-Curtain Biochar Kilns – 500 to 3,500 Litres
Kon-Tiki Biochar Kiln

Kon-Tiki Flame-Curtain Biochar Kilns – 500 to 3,500 Litres

  • Conical open-flame kilns for low-cost biochar from dry woody biomass
  • Five sizes, from a 500-litre domestic kiln to a 3,500-litre commercial unit
  • 5 mm boiler-steel cone with a 10-year guarantee on the cone

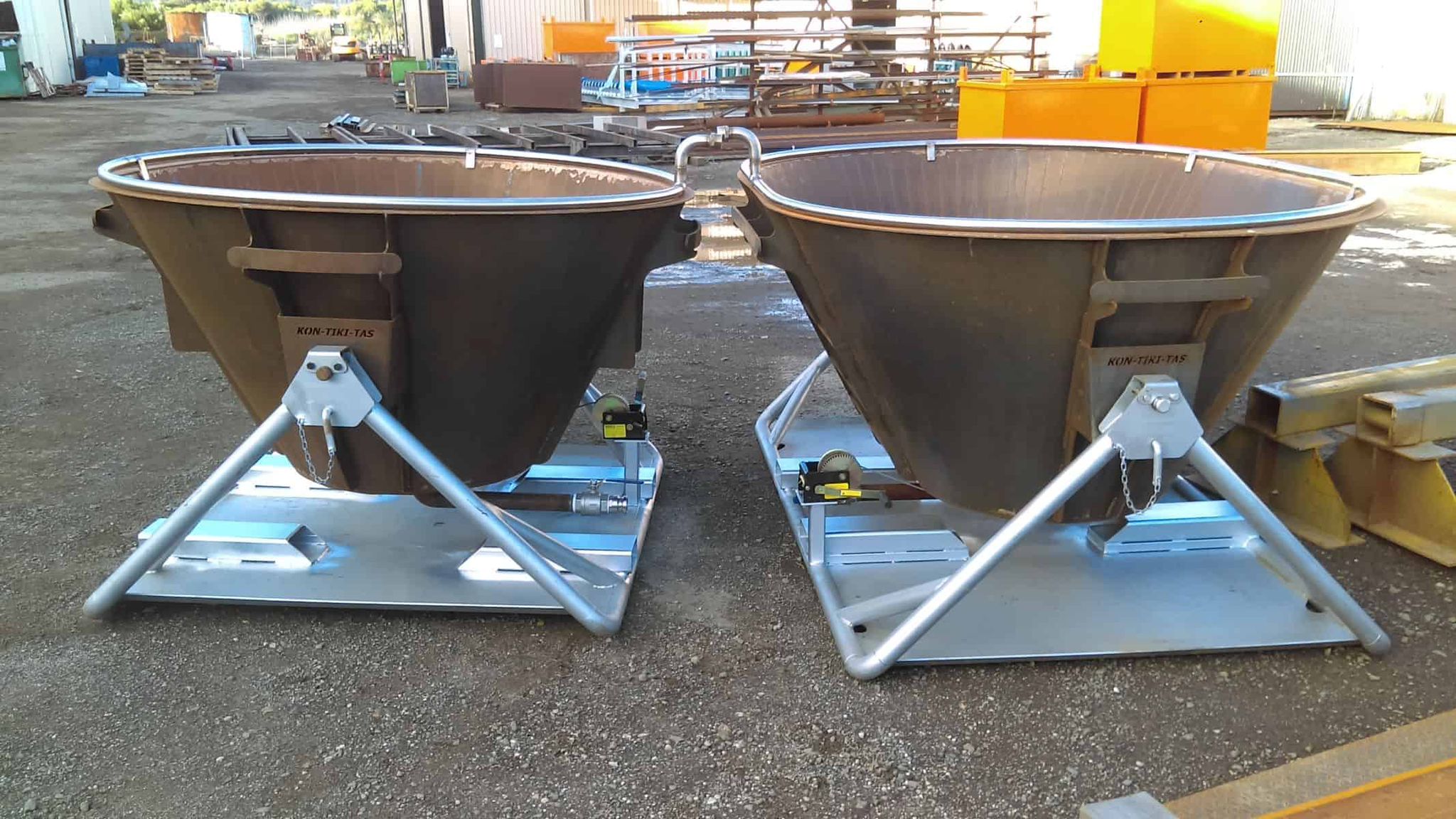

  • Pivot frame and ratchet for easy emptying
  • For farms, estates, contractors and community projects
Request a Quote

Product Specifications

Product information

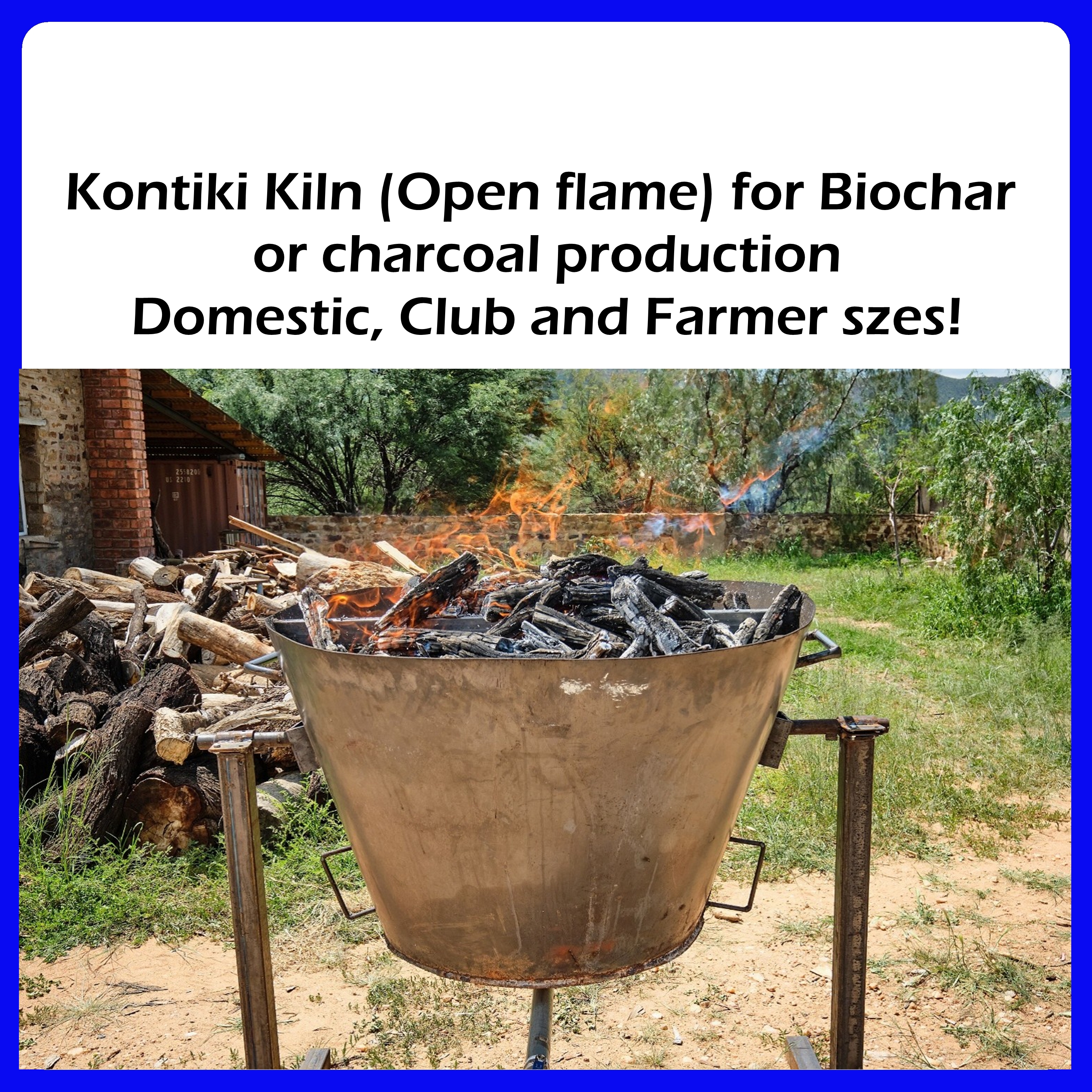

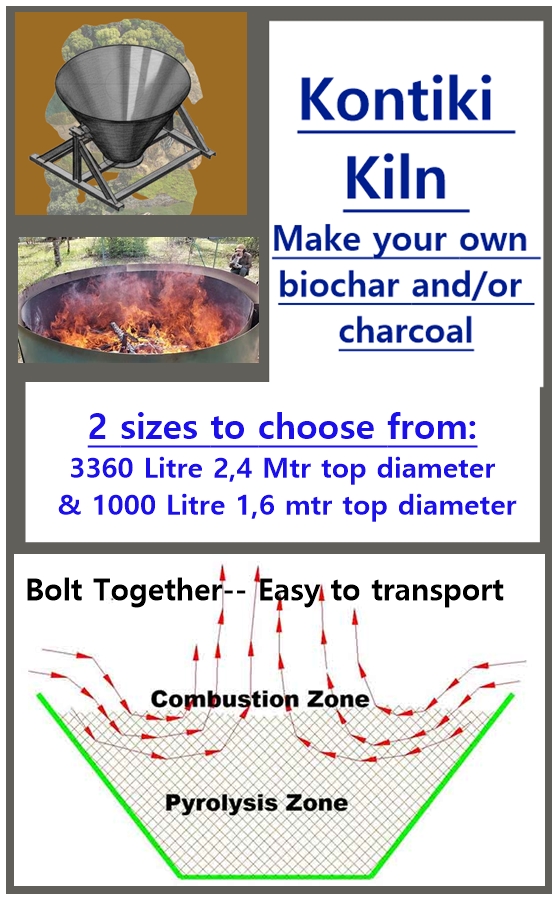

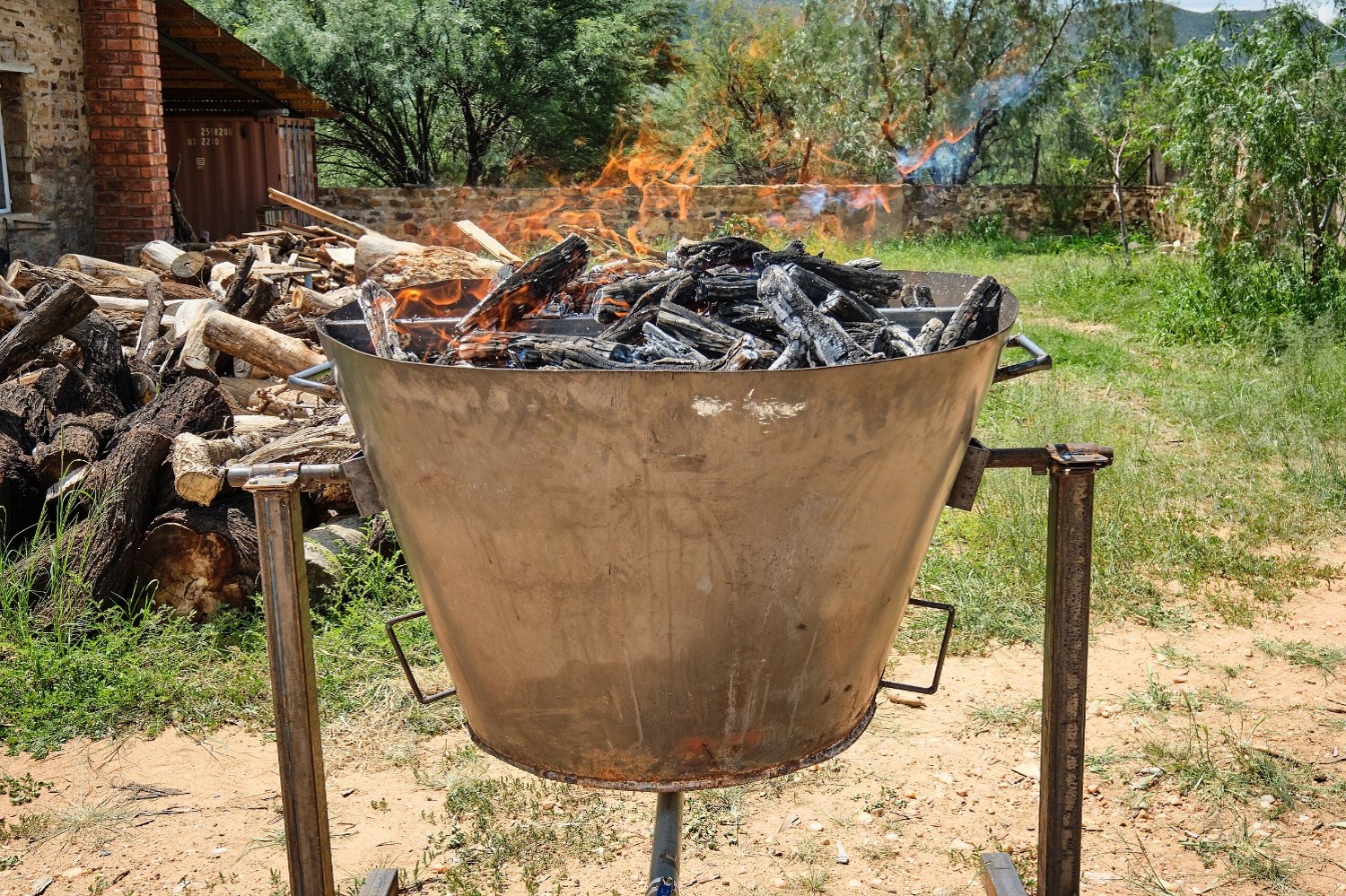

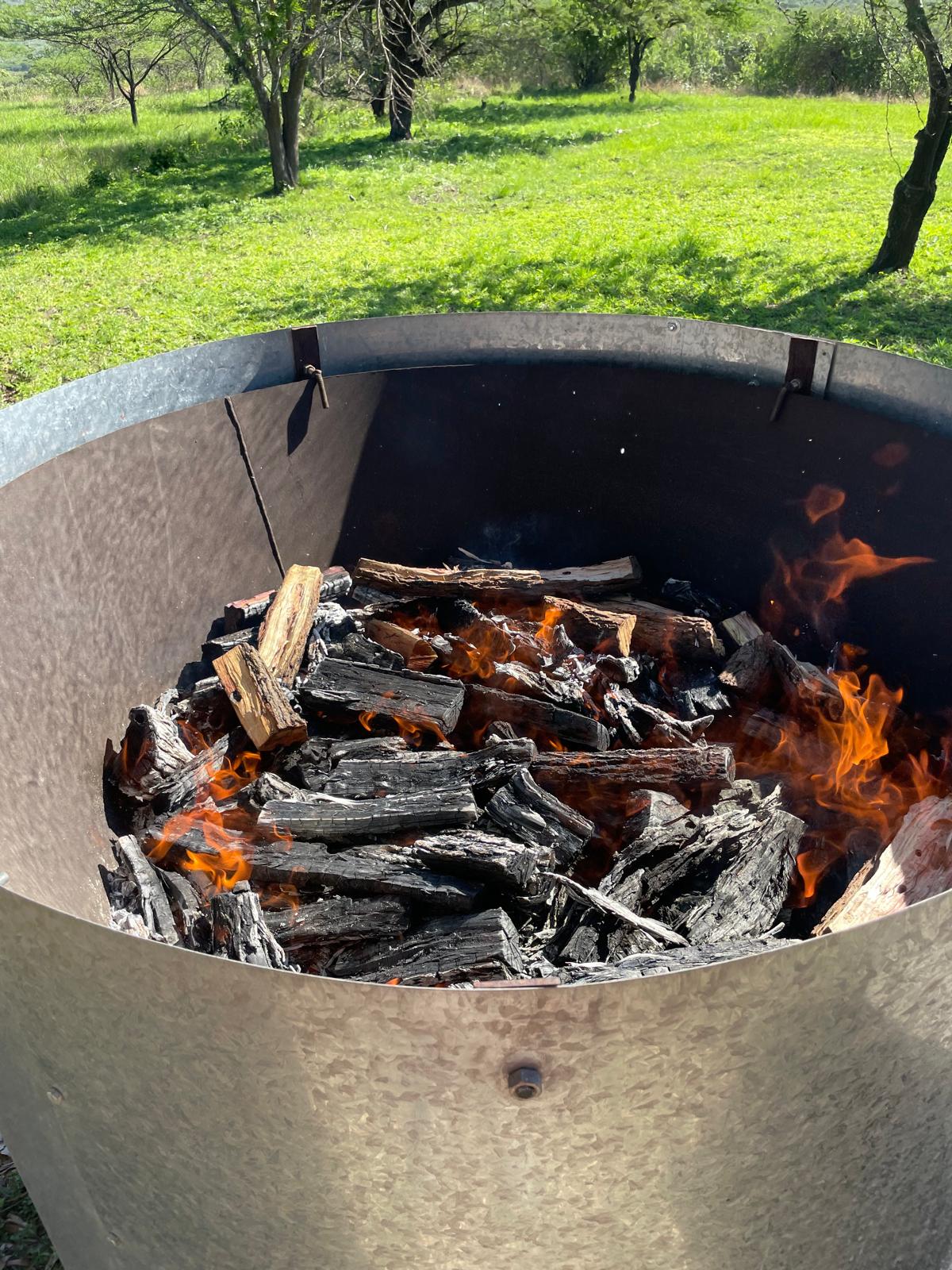

The Kon-Tiki is a cone-shaped kiln that makes biochar with a "flame curtain". Dry wood is added in layers on top of the fire; the flames on the surface use up the oxygen, so the wood underneath turns to char instead of ash. It is simple, robust and easy to operate.

How to use it

1. Light a fire in the cone with dry, clean woody biomass.
2. Keep adding material in layers, maintaining an active flame curtain.
3. Stop the burn before the char turns to ash: quench it.
4. When it has cooled completely, tip the kiln with the pivot frame and ratchet.

Sizes

  • Domestic – 500 litres, 0.95 m, 140 kg
  • Small – 1,000 litres, 1.60 m, 270 kg
  • Club / Estate – 1,500 litres, 1.65 m, 420 kg
  • Large – 3,000 litres, 2.30 m, 840 kg
  • Big – 3,500 litres, 2.50 m, 980 kg

Frequently asked questions

What should I burn?

Suitably dry, clean woody biomass such as branches, prunings and invasive alien wood.

What is biochar used for?

As a soil amendment, mixed into compost, and for long-term carbon storage.

Is there a cleaner, larger option?

Yes, the sealed biochar kilns (2 to 14 m³), which also recover wood vinegar.

Full specifications

Domestic

Volume 500 litres
Size / weight 0.95 m, 140 kg

Small

Volume 1,000 litres
Size / weight 1.60 m, 270 kg

Club / Estate

Volume 1,500 litres
Size / weight 1.65 m, 420 kg

Large

Volume 3,000 litres
Size / weight 2.30 m, 840 kg

Big

Volume 3,500 litres
Size / weight 2.50 m, 980 kg

All sizes

Cone 5 mm boiler steel, 10-year guarantee
Emptying Pivot frame and ratchet
