Slow-Speed Grinders & Shredders

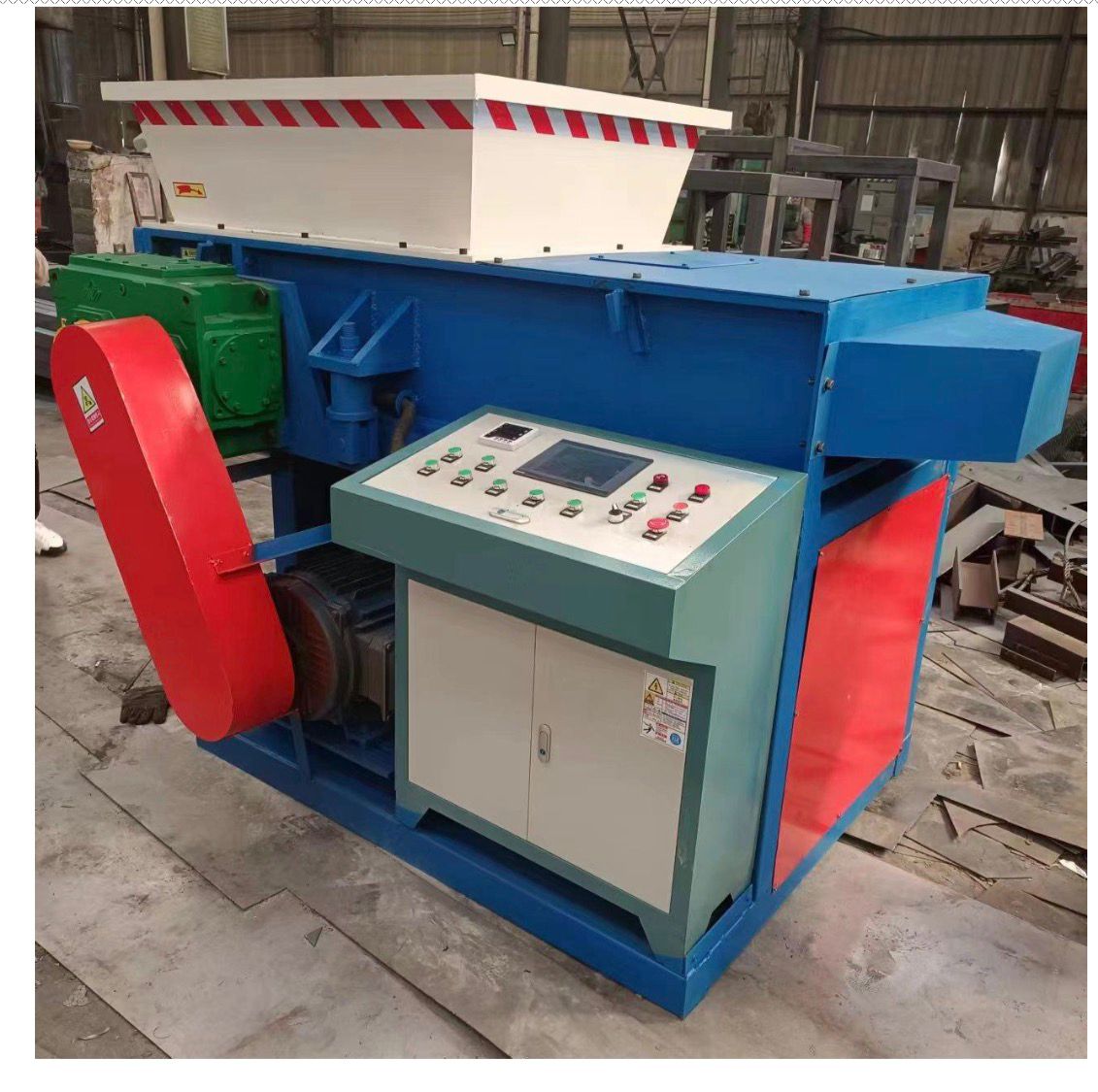

Model 600 Single-Shaft Shredder – 22 kW
- Heavy-duty single-shaft shredder for higher-volume waste reduction
- 22 kW main motor, 360 mm rotor turning at 62.5 rpm
- 40 moving and 2 fixed knives in wear-resistant D2 steel
- Independent 2.2 kW hydraulic feed system
- PLC control for easy operation and monitoring
- Main motor
- 22 kW
- Rotor
- 360 mm diameter
- Speed
- 62.5 rpm
- Knives
- 40 moving, 2 fixed, D2 steel
- Spindle
- 300 mm
- Hydraulic system
- Independent, 2.2 kW
Product information
The Model 600 is a slow-speed, high-torque single-shaft shredder. A hydraulic ram pushes material against the rotor, where the knives cut it down to size. The slow speed keeps dust, noise and wear low.
Frequently asked questions
Is there a smaller single-shaft model?
Yes, the 11 kW single-shaft shredder with a 20 mm screen and hydraulic pusher.
Full specifications
Machine
| Main motor | 22 kW |
| Rotor | 360 mm diameter |
| Speed | 62.5 rpm |
Cutting
| Knives | 40 moving, 2 fixed, D2 steel |
Machine
| Spindle | 300 mm |
Feeding
| Hydraulic system | Independent, 2.2 kW |
Control
| System | PLC |
Product Gallery
