Backhus Compost Turners
Backhus Self-Propelled Compost Turners – 3 to 7.5 m Rows
- German-built self-propelled windrow turners – no tractor needed
- Models for windrows from 3.0 m to 7.5 m wide and 1.3 m to 3.3 m high
- Turning capacity up to 7,000 m³ per hour on the largest model
- Height-adjustable, reversible rotor with optional armoured tools
- For municipalities, recyclers and commercial compost producers
- Windrow width
- 3.0 m to 7.5 m
- Windrow height
- 1.3 m to 3.3 m
- Turning capacity
- Up to 700 m³/h (smallest) to 7,000 m³/h (largest)
- Rotor diameter
- 730 mm to 1,800 mm
- Engine power
- 34 kW (45 hp) to 447 kW (600 hp)
- Drive
- Self-propelled, crawler tracks; wheel drive optional (A 45–A 65)
Product Specifications
Product information

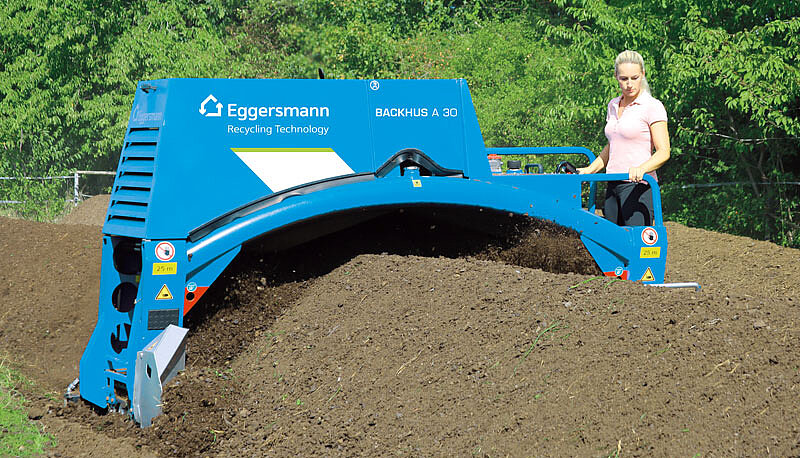

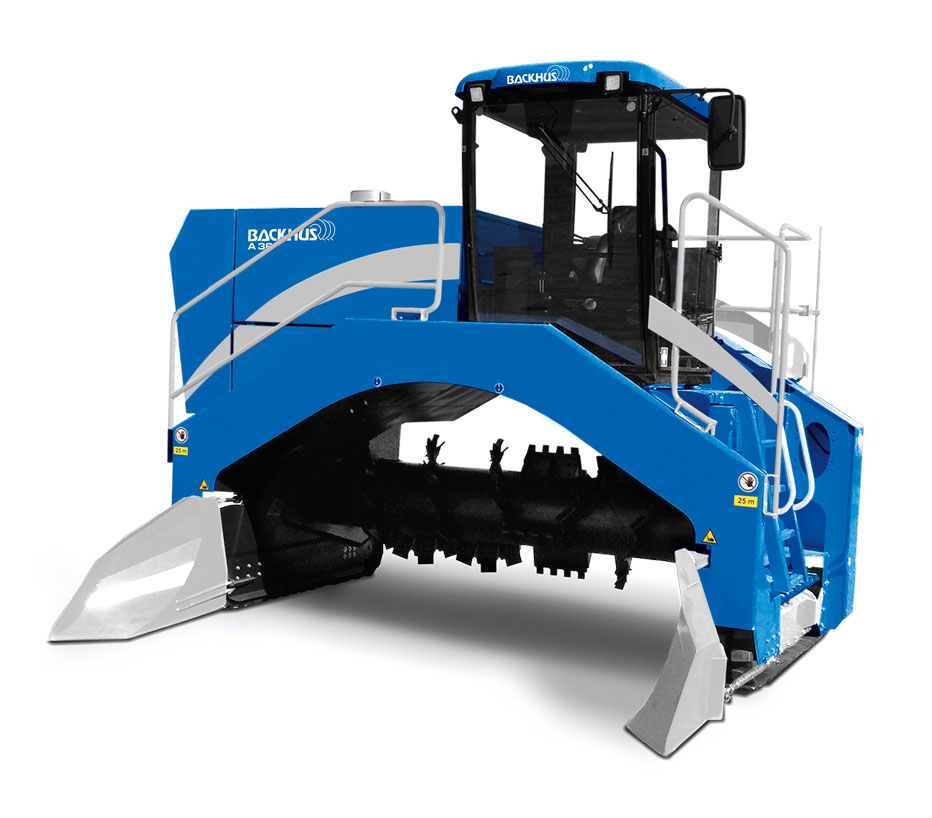

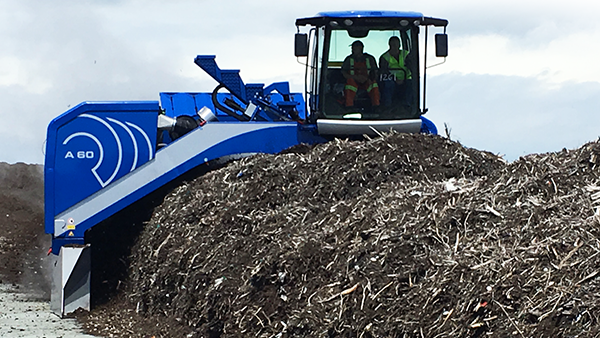

Backhus self-propelled compost turners are built in Germany for professional windrow composting. They straddle the row on their own tracks, turning, aerating and mixing the material in one pass. Ritingwe offers the Backhus range with local sales and technical support.
The range
Backhus builds turners from the compact, easy-to-transport A 30 up to the A 75. Choose by the width of row you want to run:
- Smallest models: rows 3.0 m wide × 1.3 m high, with turning capacity up to 700 m³/h
- Largest model: rows 7.5 m wide × 3.3 m high, with turning capacity up to 7,000 m³/h
- Engines from 34 kW (45 hp) up to 447 kW (600 hp)
Features
- Self-propelled on crawler tracks (steel tracks with rubber plates); wheel drive optional on the A 45 to A 65

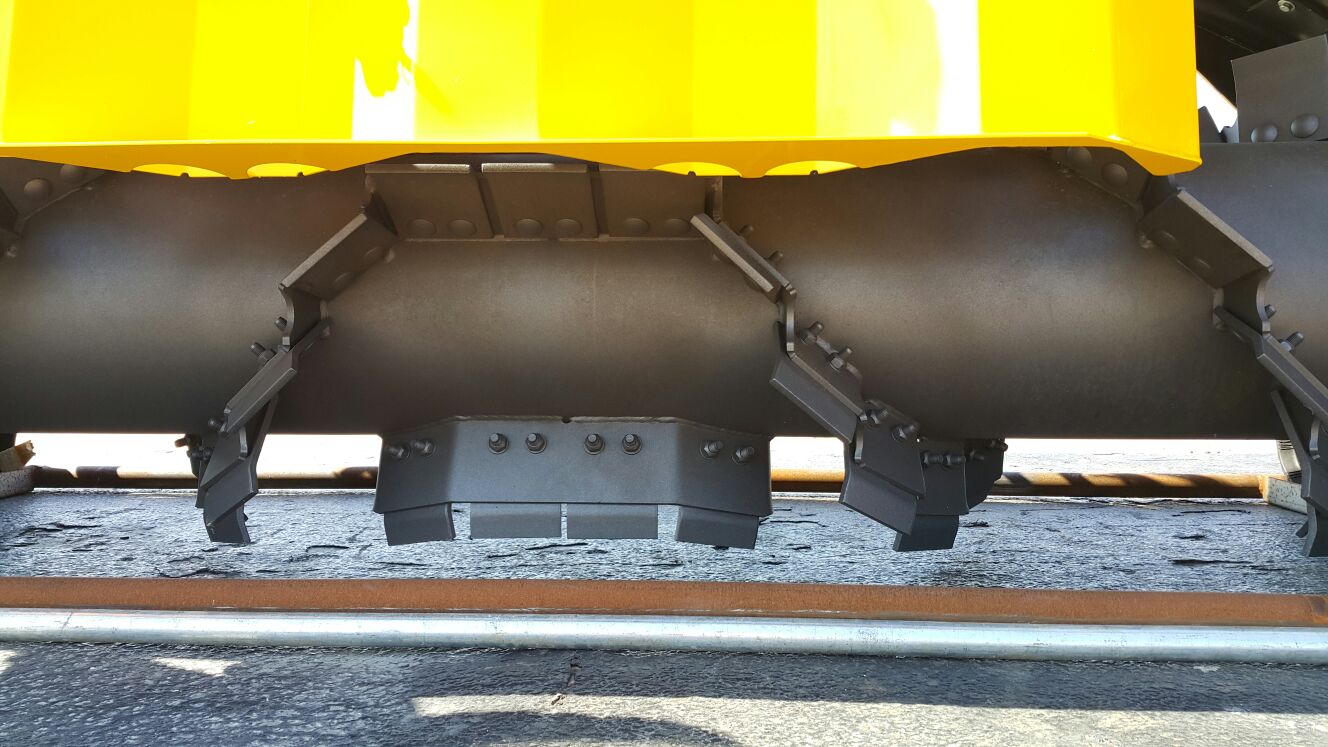

- Height-adjustable, reversible rotor
- Cabin with 360° view, air-suspended seat and intuitive hand controls on larger models
- Adjustable track clearers keep the path clean
- Options include a radio-controlled irrigation hose drum and a fleece winder for covered windrows
What it turns
- Green and municipal organic waste
- Poultry litter and livestock manure
- Biosolids and organic by-products
Frequently asked questions
Do I need a tractor?
No. Backhus turners are self-propelled.
Which model suits my site?
Start from the windrow width you want to run. Ask us and we will match a model to your volumes.
Is there a tractor-driven alternative?

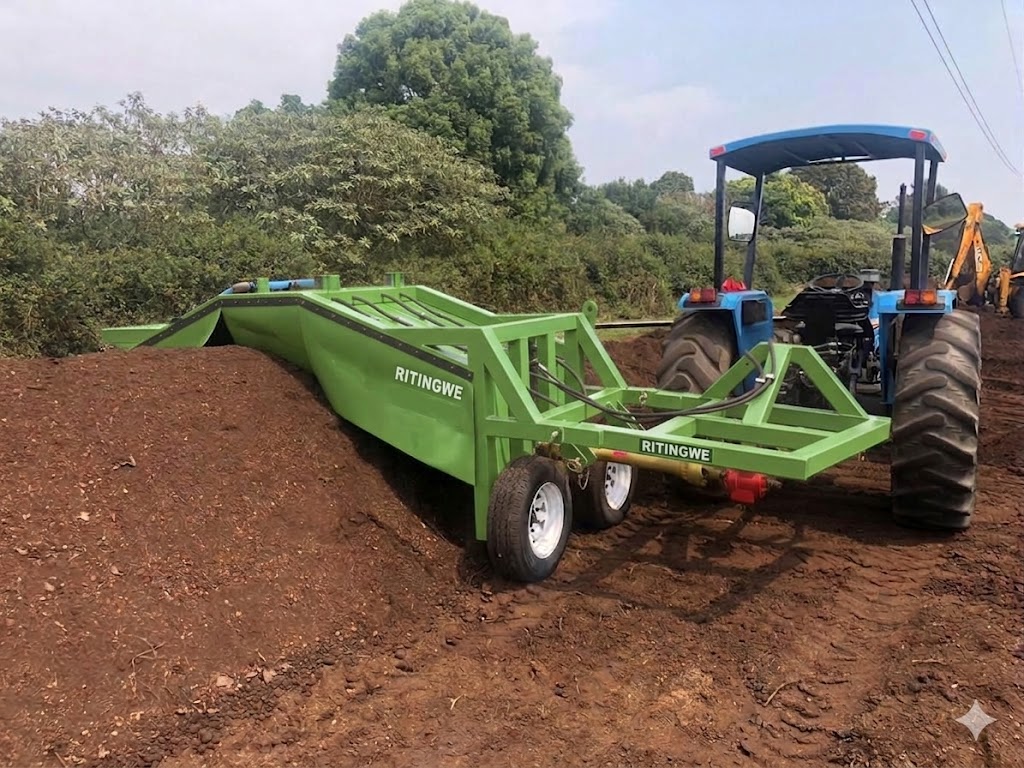

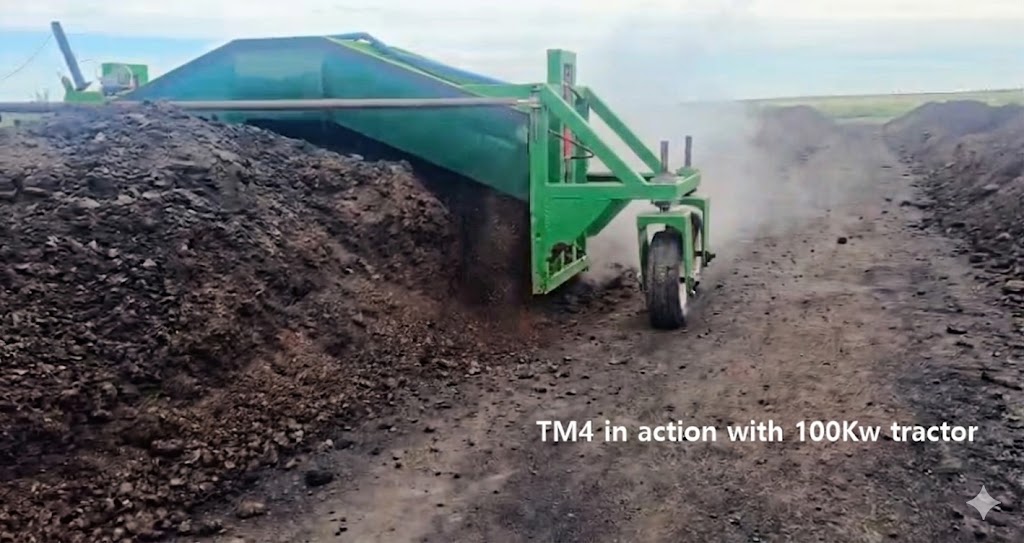

Yes, the Ritingwe TM3 (3 m rows) and TM4 (4 m rows) tractor compost turners.
Full specifications
Range
| Windrow width | 3.0 m to 7.5 m |
| Windrow height | 1.3 m to 3.3 m |
| Turning capacity | Up to 700 m³/h (smallest) to 7,000 m³/h (largest) |
| Rotor diameter | 730 mm to 1,800 mm |
| Engine power | 34 kW (45 hp) to 447 kW (600 hp) |
Machine
| Drive | Self-propelled, crawler tracks; wheel drive optional (A 45–A 65) |
| Rotor | Height-adjustable, reversible |
Options
| Irrigation | Radio-controlled hose drum |
| Covered windrows | Fleece winder |
