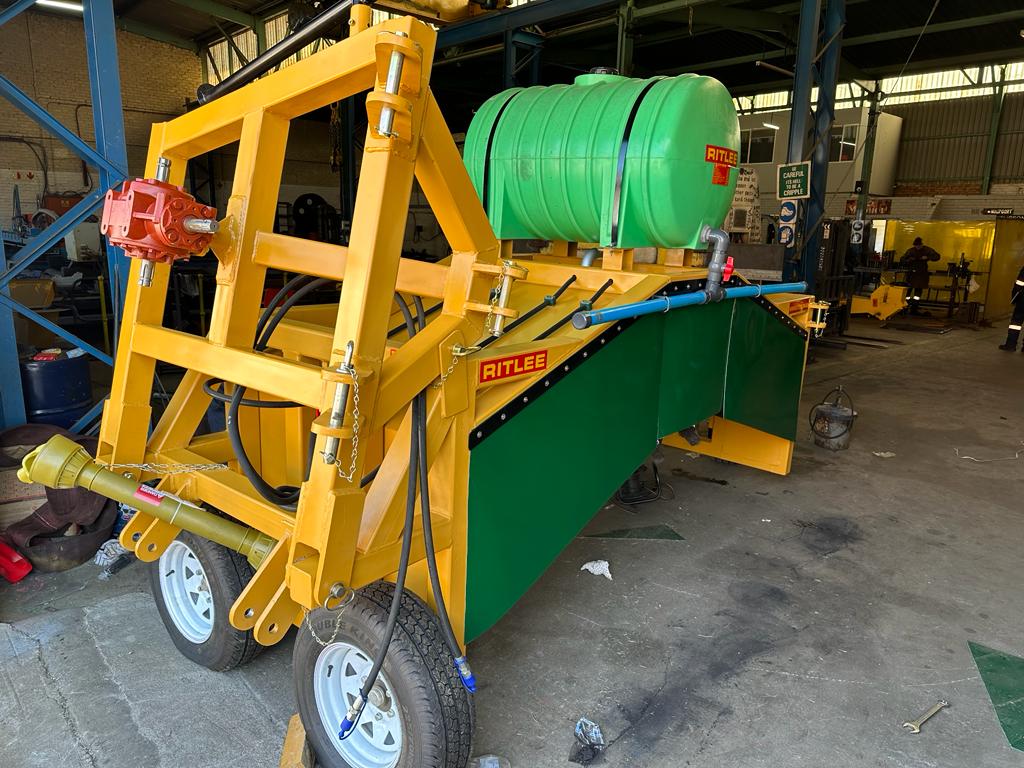

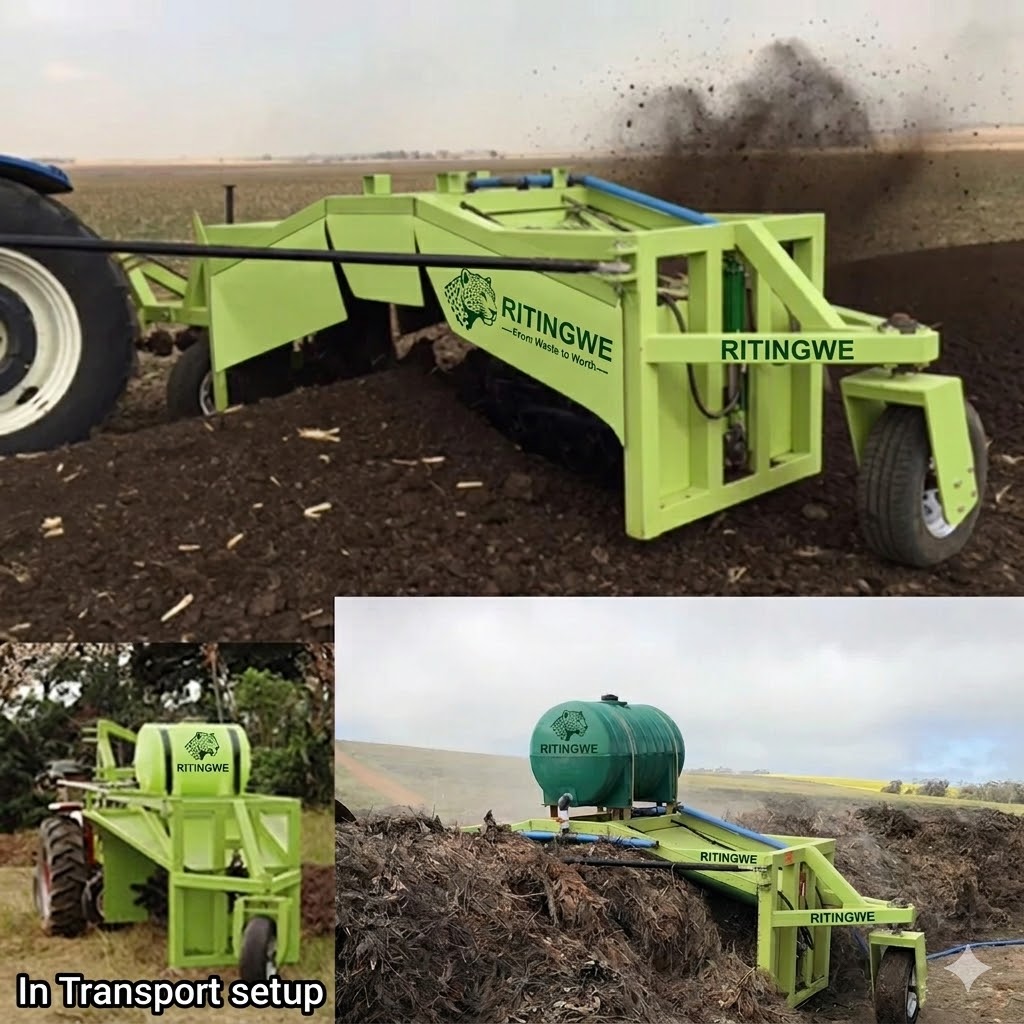

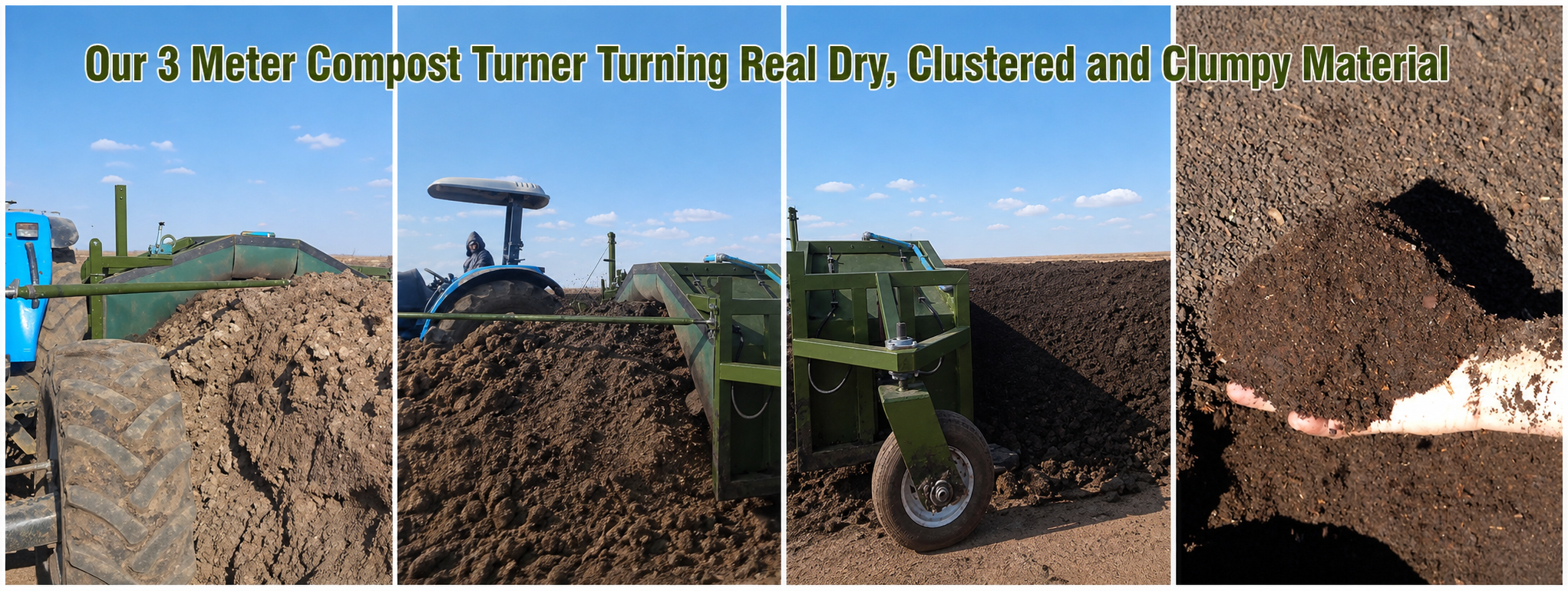

TM3 Tractor-Mounted Compost Turner – 3 m Windrows
- Turns windrows up to 3 m wide × 1.5 m high, of any practical length
- Up to 675 m³ per hour in good conditions
- PTO-driven from your own tractor, keeping running and maintenance costs low
- Hydraulically adjustable rotor height for heavy or difficult rows
- Integrated water system adds moisture right where the material is turned
- South African design, in service since 2004
- Windrow width
- Up to 3 m
- Windrow height
- Up to 1.5 m
- Row length
- Any practical length
- Output
- Up to 675 m³/h (ideal conditions)
- Mounting
- Tractor-mounted
- Drive
- Tractor PTO
Product Specifications
Product information
The TM3 is a tractor-mounted windrow compost turner. It mixes, aerates and wets compost rows in one pass, so manure and green waste become stable, crumbly compost faster and more evenly than an unturned heap.
How it works
A 12 mm, dynamically balanced drum fitted with Bennox steel spatula blades lifts and throws the material. This breaks up clumps, lets out heat and CO₂, and draws in fresh air. Water can be added through the integrated system during the turn. Rubber safety curtains contain the material and leave a neat, reshaped row.
- Low vibration: the balanced drum keeps the machine stable on the tractor
- Pushes brick-sized stones to the side of the row so they can be picked out
- Rotor height adjusts hydraulically from the tractor for first turns and heavy rows
What it turns
- Chicken litter and poultry manure
- Kraal, feedlot and dairy manure
- Green waste, crop residues, straw, teff and grass
- Blended feedstocks for commercial compost
Frequently asked questions
How long until the compost is ready?
Typically 8 to 10 weeks from laying down the row, with regular turning.
How often should I turn?
A useful start is 3 turns in weeks 1–2, 2 turns in weeks 3–4, then weekly until the temperature stays stable.
When is a row due for a turn?
When the core approaches 65–70 °C, or sooner if it starts to smell sour.
How wet should the compost be?
About 55–60% moisture, like a wrung-out sponge. Add water during the turn if it is dry.
TM3 or TM4?
The TM3 handles 3 m rows at up to 675 m³/h. The TM4 handles 4 m × 2 m rows at up to 1,200 m³/h and needs about a 100 hp tractor with crawler gear.
Full specifications
Performance
| Windrow width | Up to 3 m |
| Windrow height | Up to 1.5 m |
| Row length | Any practical length |
| Output | Up to 675 m³/h (ideal conditions) |
Machine
| Mounting | Tractor-mounted |
| Drive | Tractor PTO |
| Rotor height | Hydraulically adjustable |
| Drum | 12 mm, dynamically balanced |
| Blades | Bennox steel spatula blades |

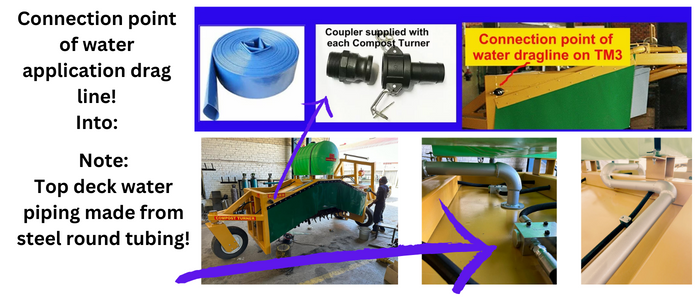

| Water | Integrated application into the turning zone |
| Safety | Rubber curtains |
Product Gallery
