Sealed Biochar Kilns – Horizontal & Vertical, 2 to 14 m³
- Sealed retort kilns for clean, consistent biochar and charcoal production

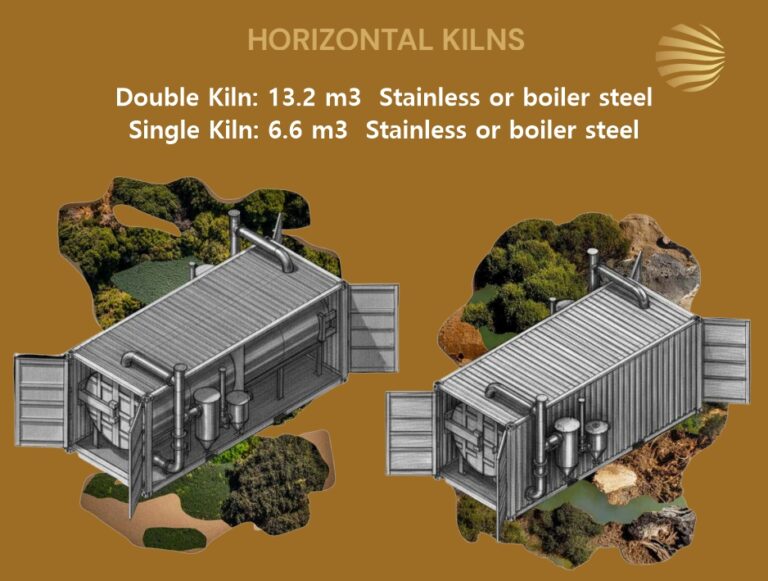

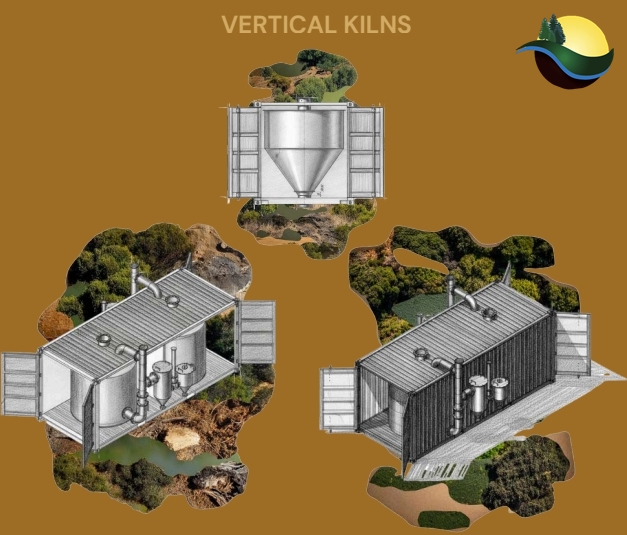

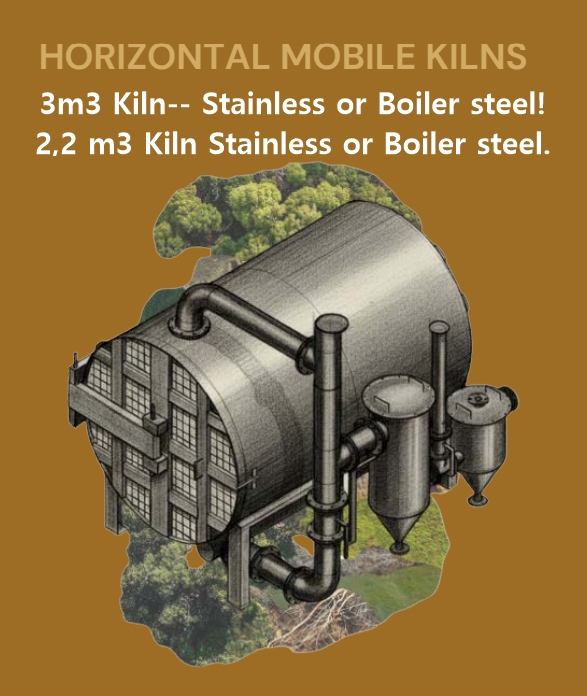

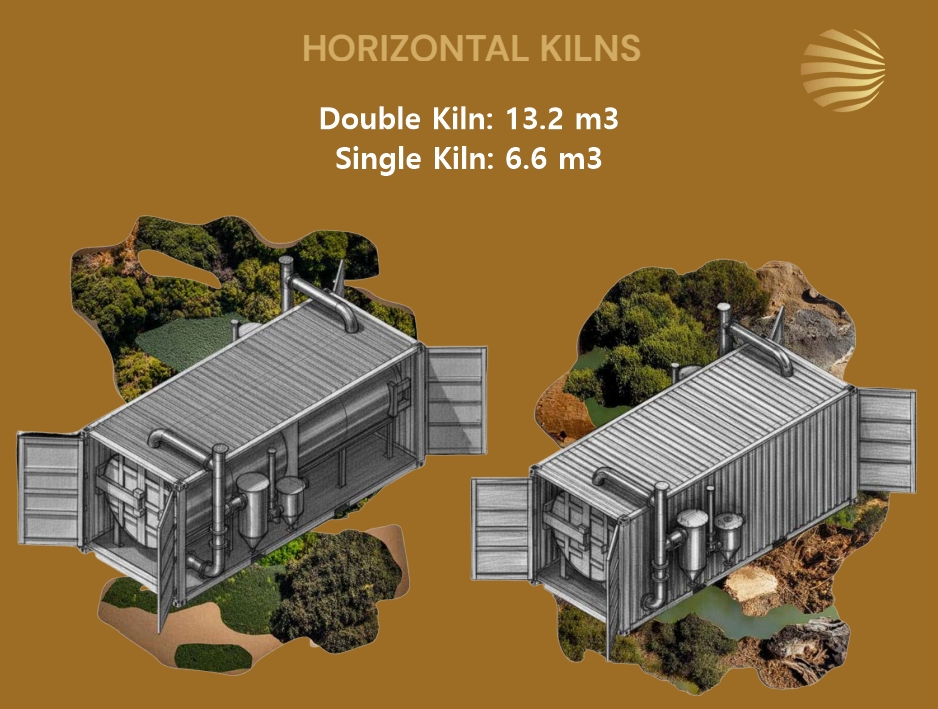

- Four models from 2 m³ to 14 m³, in horizontal or vertical layout
- Condensers recover tar and wood vinegar; syngas is recycled and burnt
- Built in stainless steel (to 1,050 °C) or boiler steel plate (to 550 °C)
- Much less smoke than open pits, earth mounds and basic kilns
- Models
- 4
- Kiln volume
- 2 m³ to 14 m³
- Layout
- Horizontal or vertical
- Type

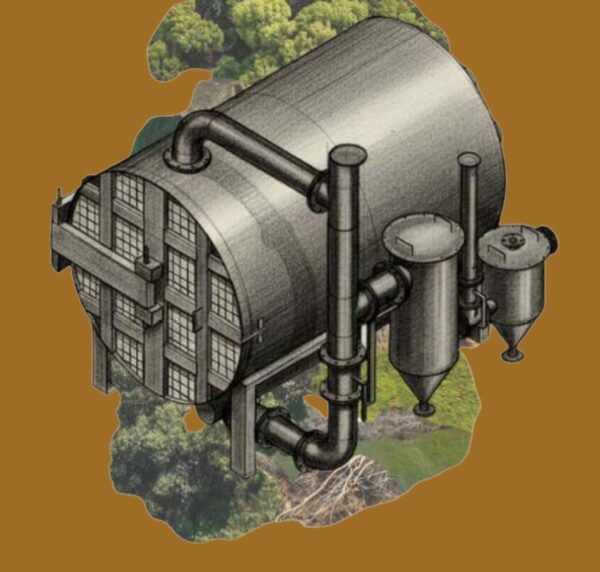

- Sealed retort, indirectly heated
- By-products
- Tar and wood vinegar via condensers
- Syngas
- Recycled through condenser and burnt
Product Specifications
Product information
A sealed retort kiln heats biomass indirectly in a closed vessel, so the oxygen is controlled and the char comes out consistent batch after batch. Unlike an open burn, the smoke is not wasted: gases pass through condensers that recover tar and wood vinegar, and the remaining syngas is recycled and burnt.
How it works
1. Load dry wood chips, branches, prunings or other woody biomass into the sealed vessel.
2. The vessel is heated from outside; the biomass turns to char without burning to ash.

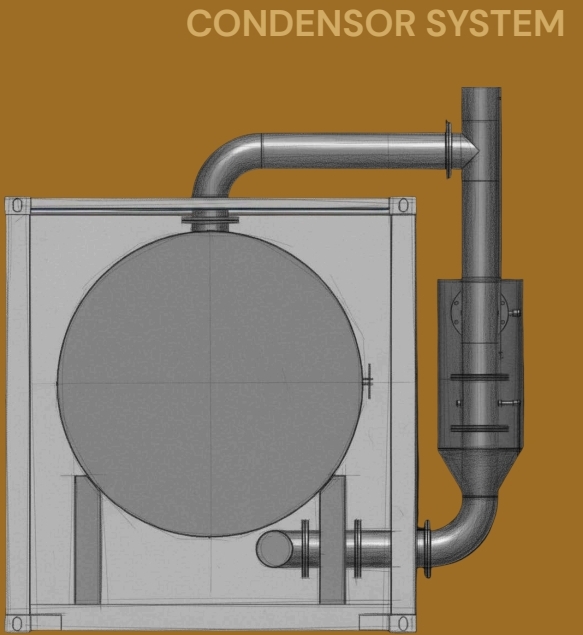

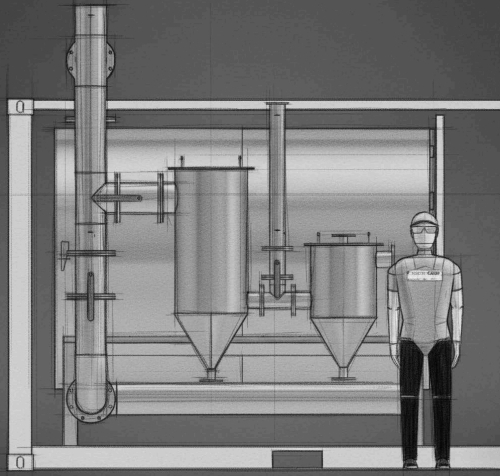

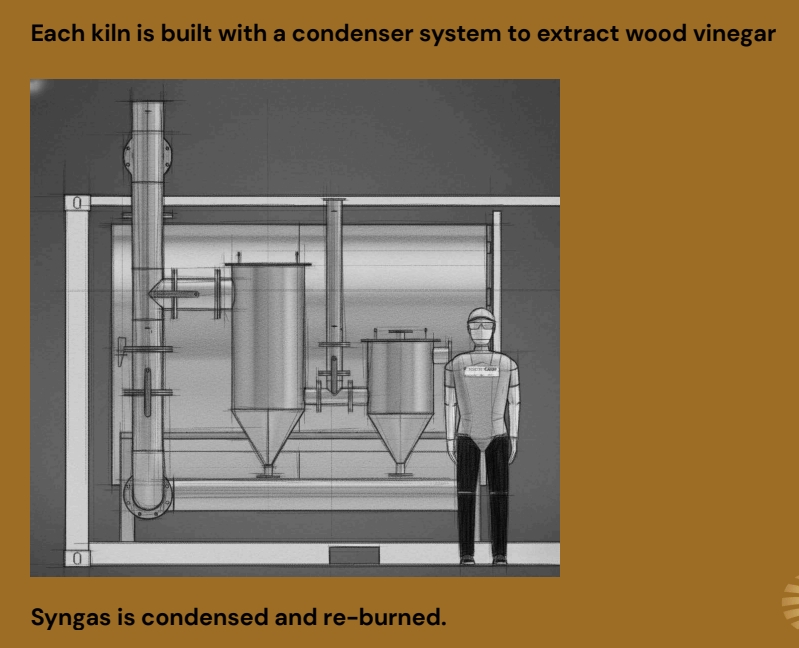

3. Vapours pass through the condensers, recovering tar and wood vinegar (pyroligneous acid).
4. Syngas is recycled and burnt, reducing smoke.
What you produce
- Biochar for soil improvement and compost
- Charcoal for fuel or briquettes
- Wood vinegar and tar from the condensers
Why sealed?
Traditional pits, earth mounds and basic kilns are inefficient and produce heavy smoke. A sealed kiln gives better control of the process, cleaner air and greater operator safety.
Frequently asked questions
What can I put in the kiln?
Forestry residues, wood chips, branches, orchard prunings, agricultural waste and invasive alien vegetation.
What is hot commissioning?
The kiln's first high-temperature run, done to check thermal performance, airflow, safety systems and how the steel expands.
Is there a simpler option?
Yes, the Kon-Tiki open-flame kilns, from 500 to 3,500 litres.
Full specifications
Range
| Models | 4 |
| Kiln volume | 2 m³ to 14 m³ |
| Layout | Horizontal or vertical |
Process
| Type | Sealed retort, indirectly heated |
| By-products | Tar and wood vinegar via condensers |
| Syngas | Recycled through condenser and burnt |
Construction
| Stainless steel option | Rated to 1,050 °C |
| Boiler steel option | Rated to 550 °C |
