225 Trailer Wood Chipper & Grinder – 190 mm Capacity
- Chips everything from brush to branches up to 190 mm diameter
- Flip a lever to grind the chips through an 8–20 mm screen, for bush feed or fine mulch
- 12–16 m³/h chipping, 3–6 m³/h grinding
- Own power: 35 hp petrol, 45 hp diesel, or 22/30 kW electric
- Roadworthy trailer, towable at up to 120 km/h, supplied ready to register
- South African design: more than 600 gravity-feed 225 chippers working by the end of 2021
- Chipping capacity
- 190 mm diameter, down to brush
- Feed throat
- 258 × 200 mm
- Feed tray
- 460 × 911 × 1,000 mm, slotted rubber safety curtain
- Output, chipping
- 12–16 m³/h
- Output, grinding
- 3–6 m³/h
- Grinding screen
- 8–20 mm
Product Specifications
Product information

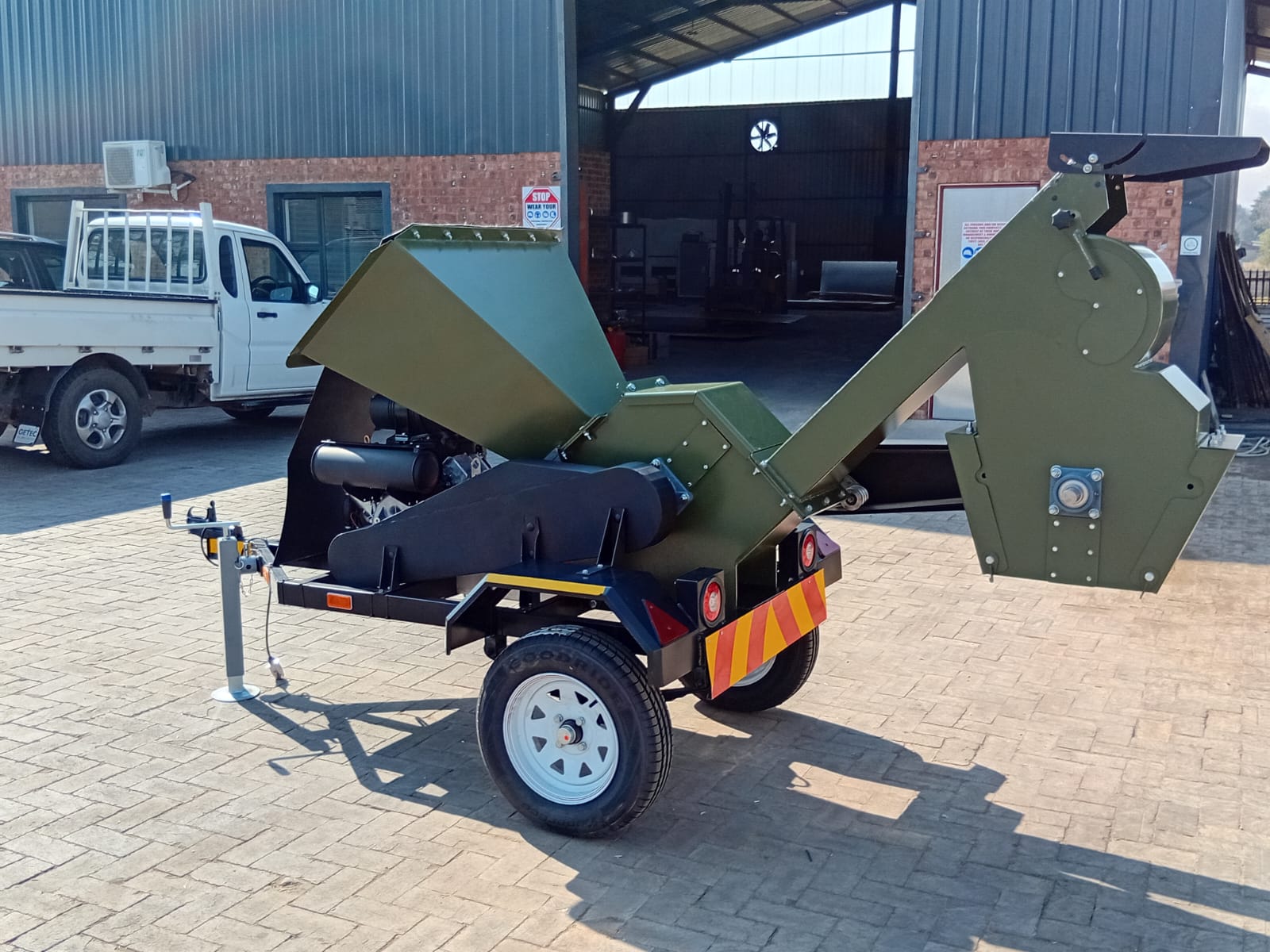

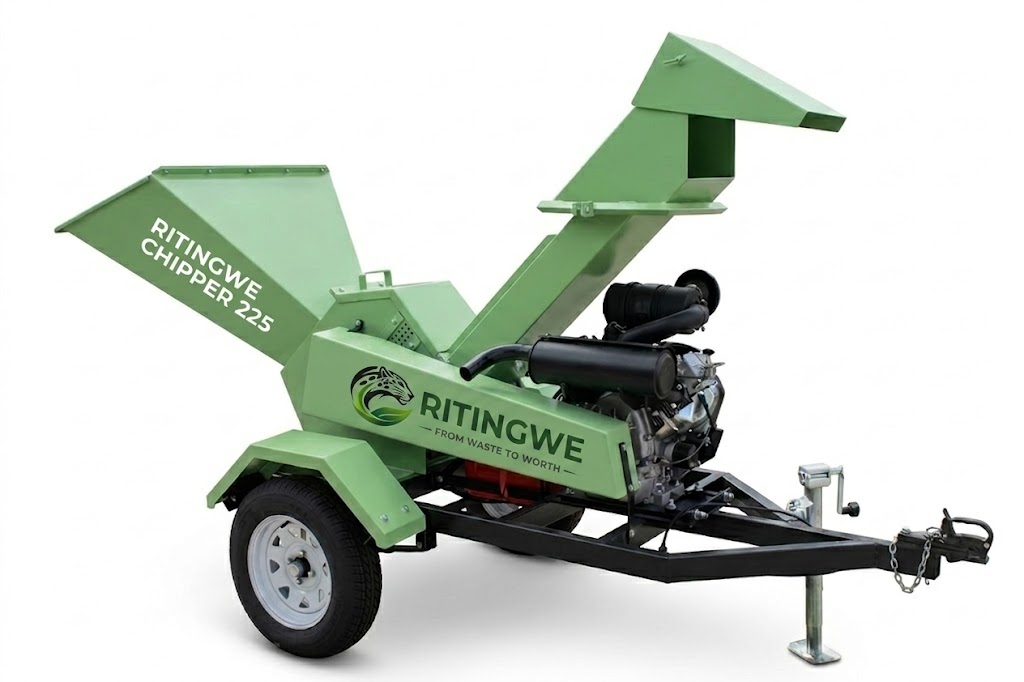

The 225 Trailer Chipper & Grinder is a gravity-feed drum chipper on a road-legal trailer. It turns branches, prunings and invader bush into wood chips. With the grinder engaged, it produces fine material for mulch, compost or livestock feed blends. Contractors, farms, estates and municipalities tow it from site to site.

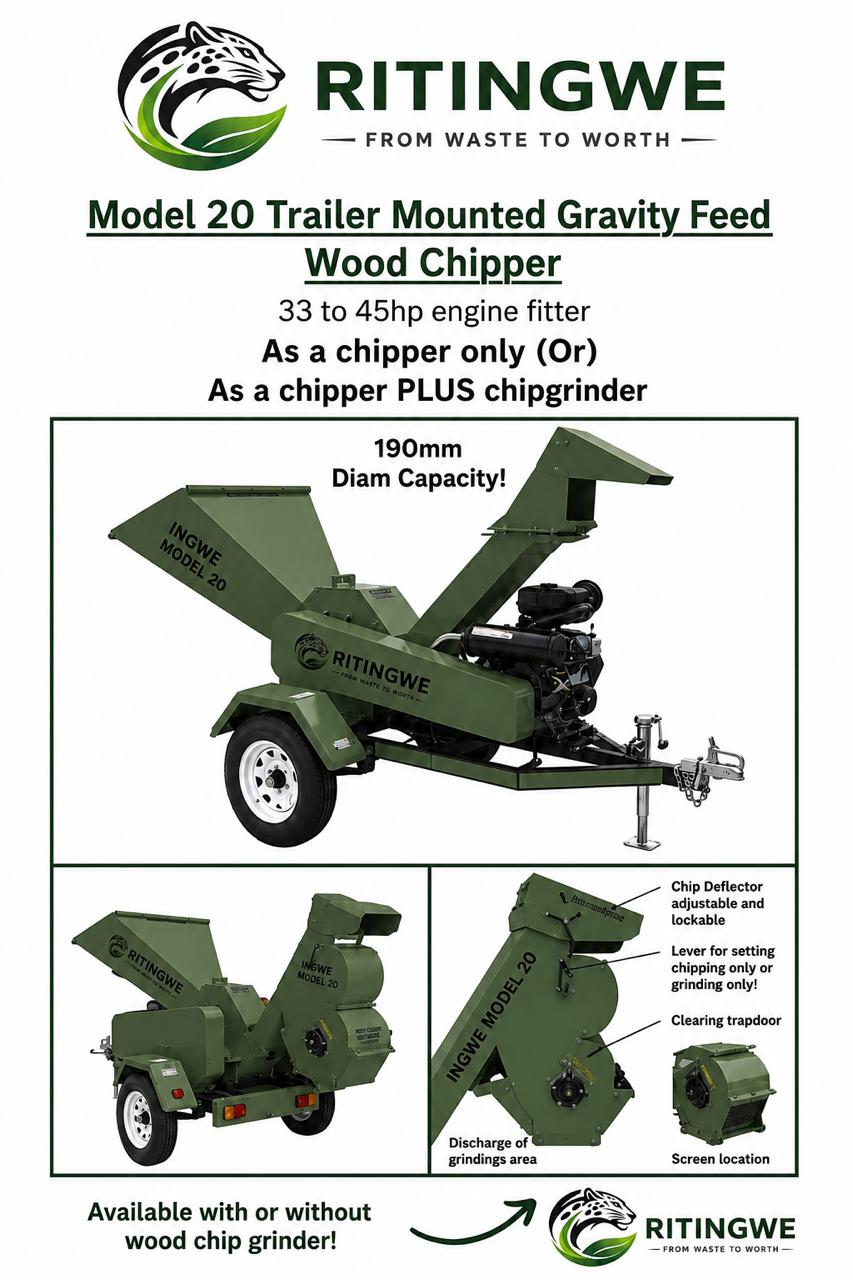

Chip or grind with one machine

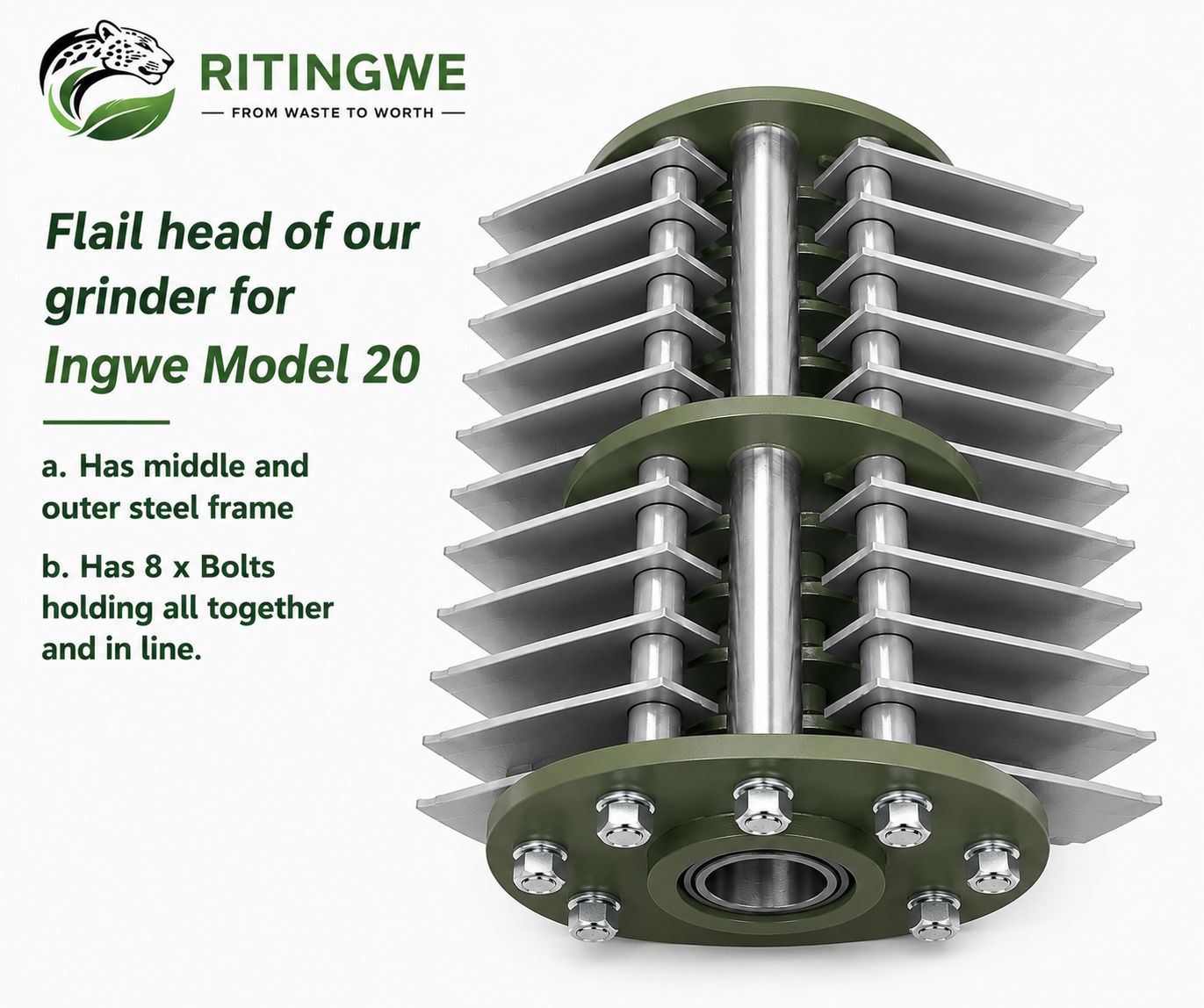

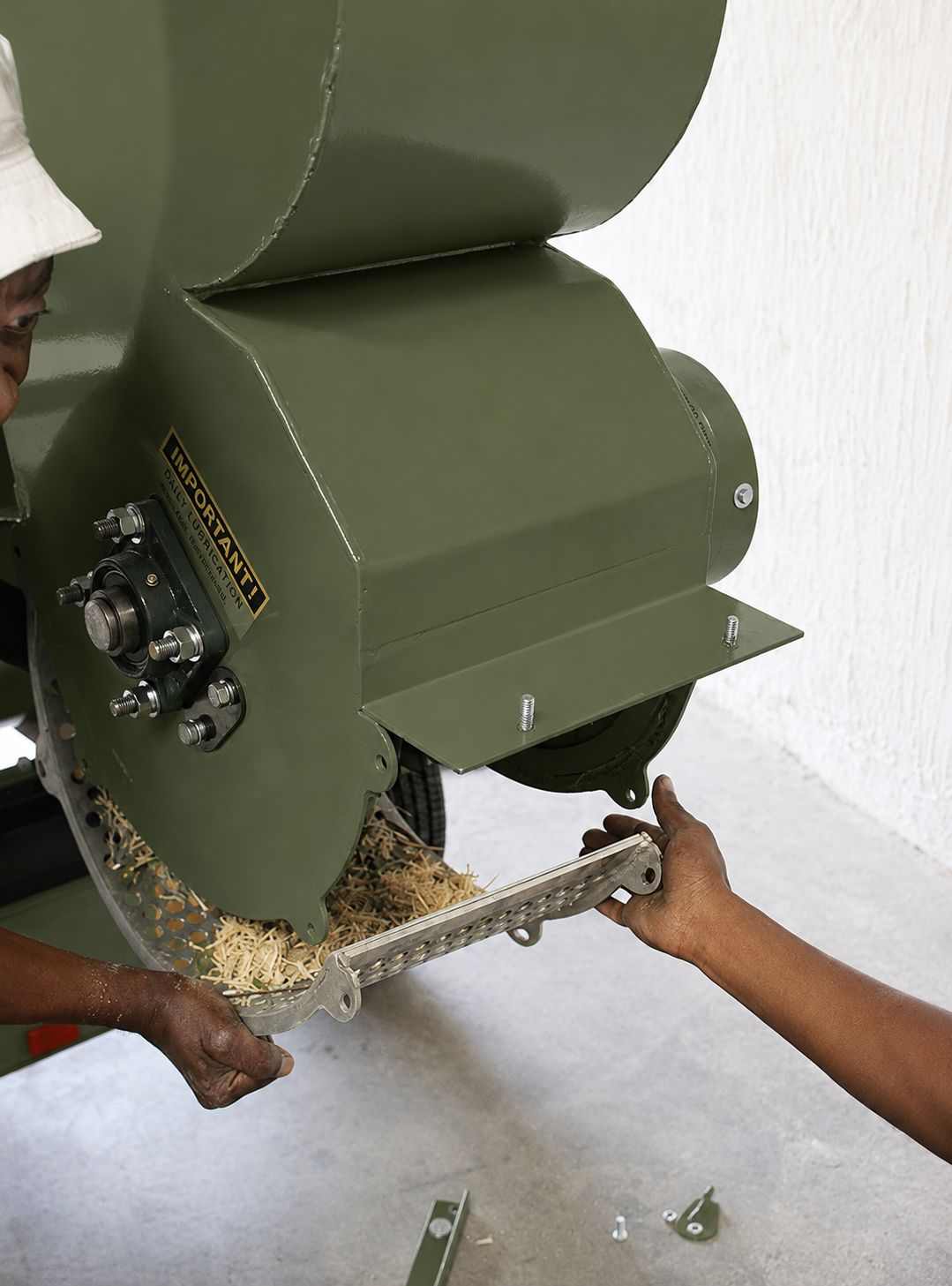

In chipping mode the drum cuts wood up to 190 mm into chips at 12–16 m³ per hour. Flip the lever and the chips pass through a grinding screen of 8–20 mm, at 3–6 m³ per hour. That finer output is what bush feed and fine mulch need.
Built to last
- 400 kg drum, precision balanced, with 12 mm side walls on a 50 mm shaft
- Drain holes in the drum stop trapped rainwater from upsetting the balance
- Two 12 mm double-edged blades, hardened to 47–58 HRC; each edge can be sharpened 5 times
- Blades held by four fine-thread bolts through a single locking plate

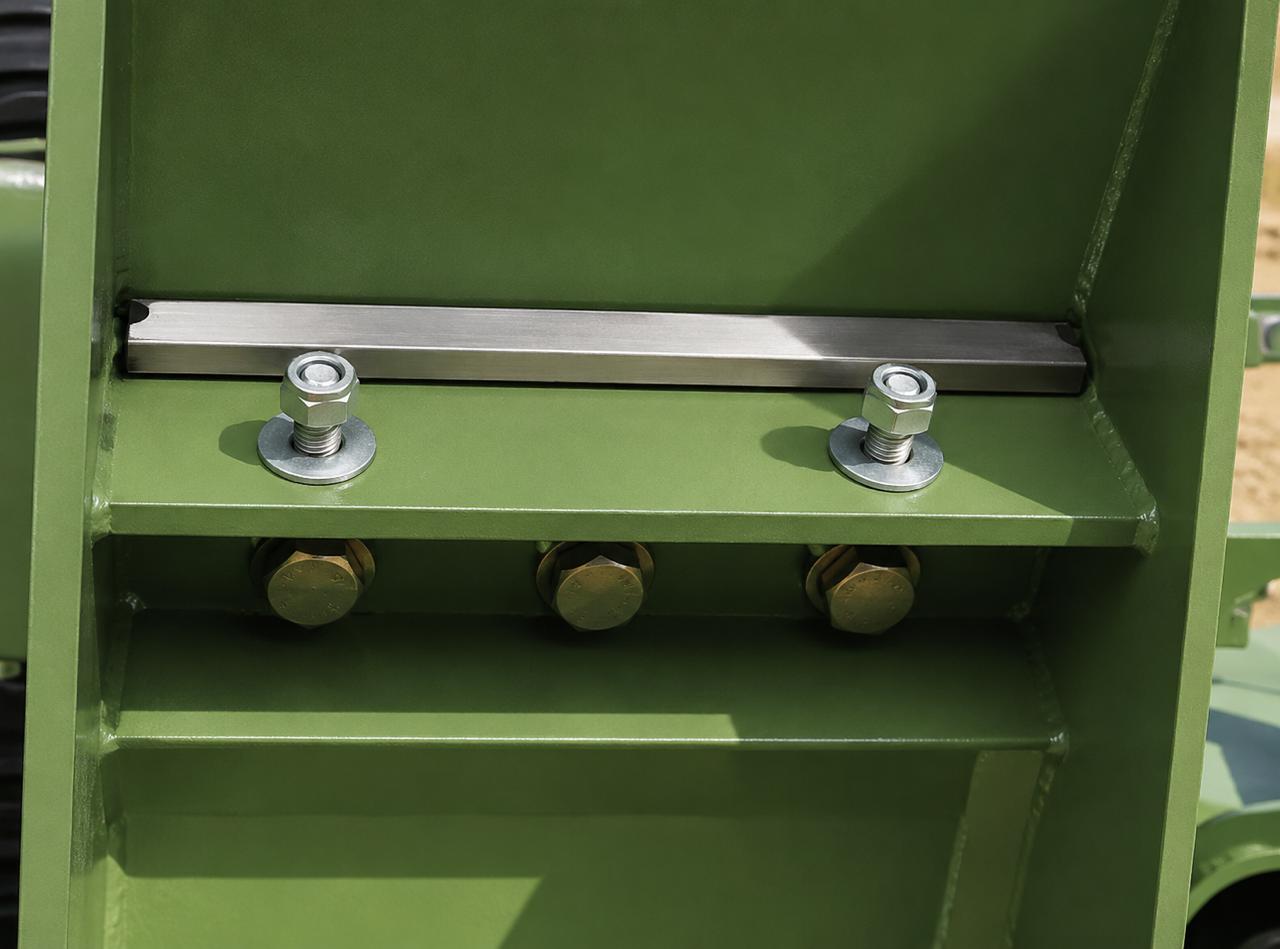

- Four-sided anvil with locator and locking bolts
- The first 225 drum chippers, sold in 2004, are still working
Power options
- 35 hp twin-cylinder Briggs & Stratton petrol
- 45 hp Deutz or Kirloskar diesel (on the heavy-duty trailer)
- 22 kW or 30 kW electric motor with star-delta starter
Frequently asked questions
Can I tow it on public roads?
Yes. It comes with lights, indicators and a jockey wheel, with roadworthy papers to register in your name. It is balanced for towing at up to 120 km/h.
How long do the blades last?
Each blade has two edges, and each edge can be resharpened 5 times, down to a minimum width of 115 mm.
Is there a tractor-mounted version?

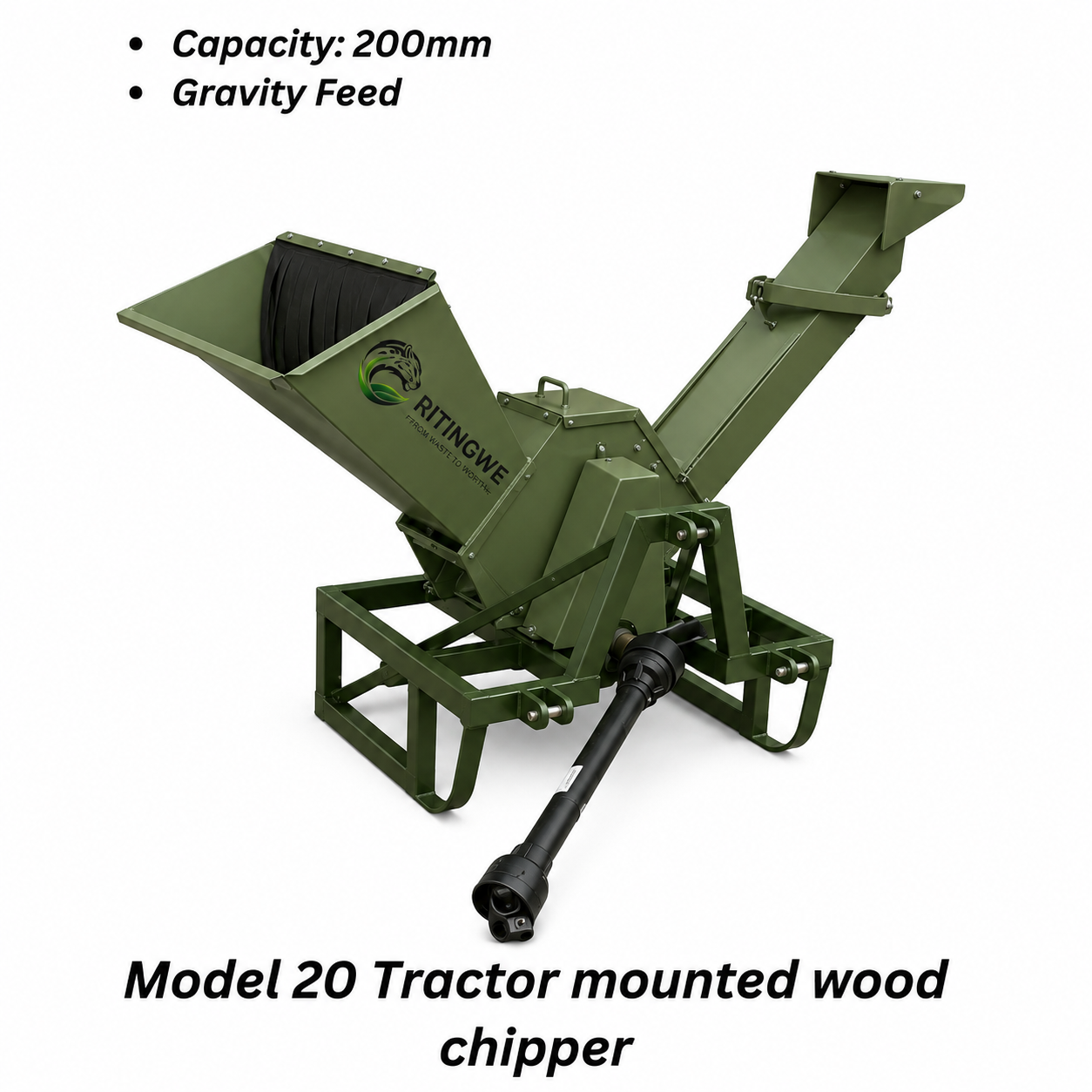

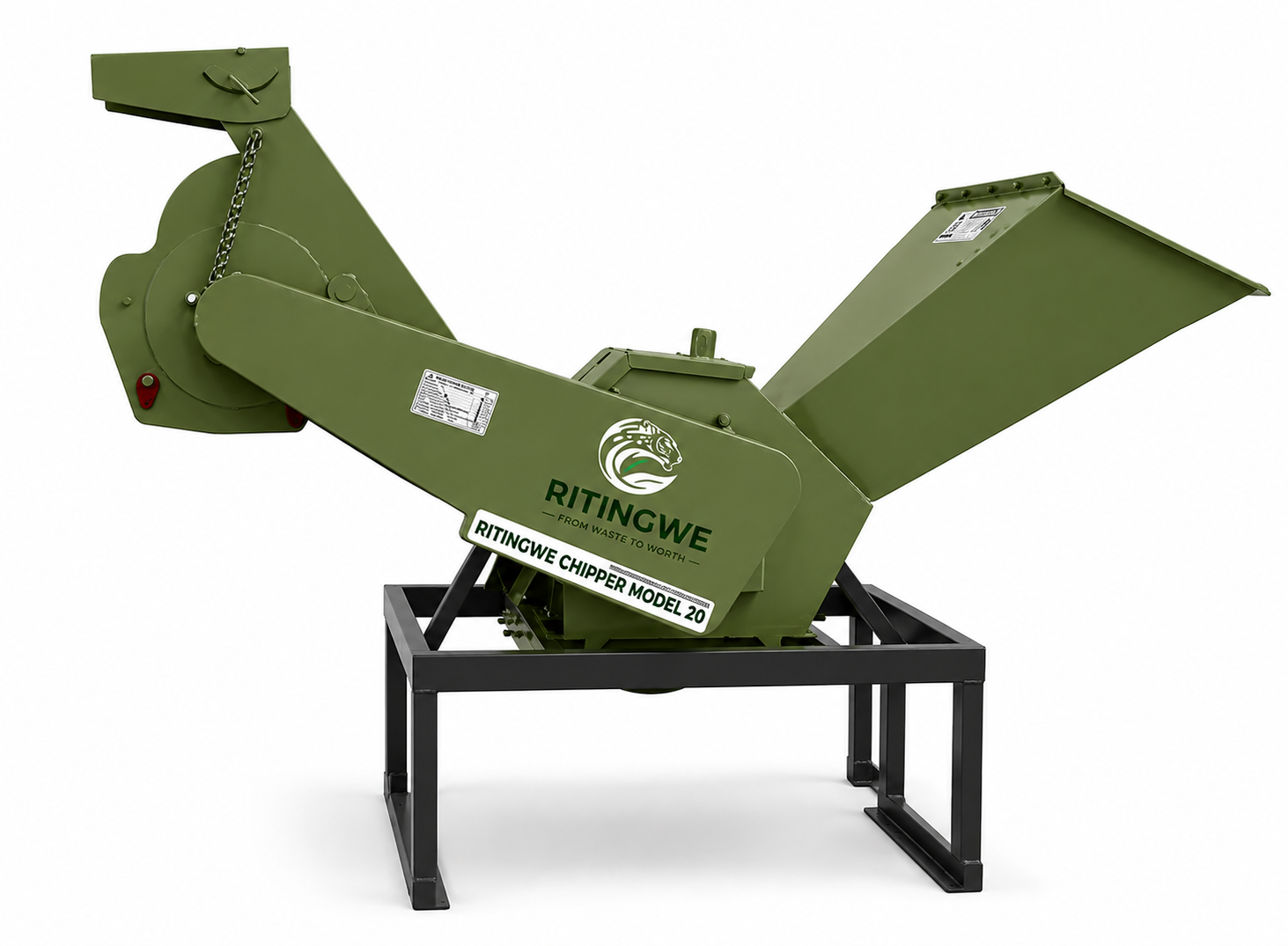

Yes, the 225 is also built as a PTO-driven, tractor-mounted chipper, with or without the grinder.
What is "225"?
It is the model name of the drum chipper range; the maximum chipping capacity is 190 mm.
Full specifications
Capacity
| Chipping capacity | 190 mm diameter, down to brush |
| Feed throat | 258 × 200 mm |
| Feed tray | 460 × 911 × 1,000 mm, slotted rubber safety curtain |
| Output, chipping | 12–16 m³/h |
| Output, grinding | 3–6 m³/h |
| Grinding screen | 8–20 mm |
Drum & blades
| Drum | 400 kg, dynamically balanced; 12 mm side wall, 10 mm drum wall, 50 mm shaft |
| Drum drive | 3 × B-section V-belts |
| Blades | 2 × 12 mm, double-edged, hardened 47–58 HRC, 2.8 kg each |
| Blade life | Up to 5 sharpenings per edge (min. width 115 mm) |

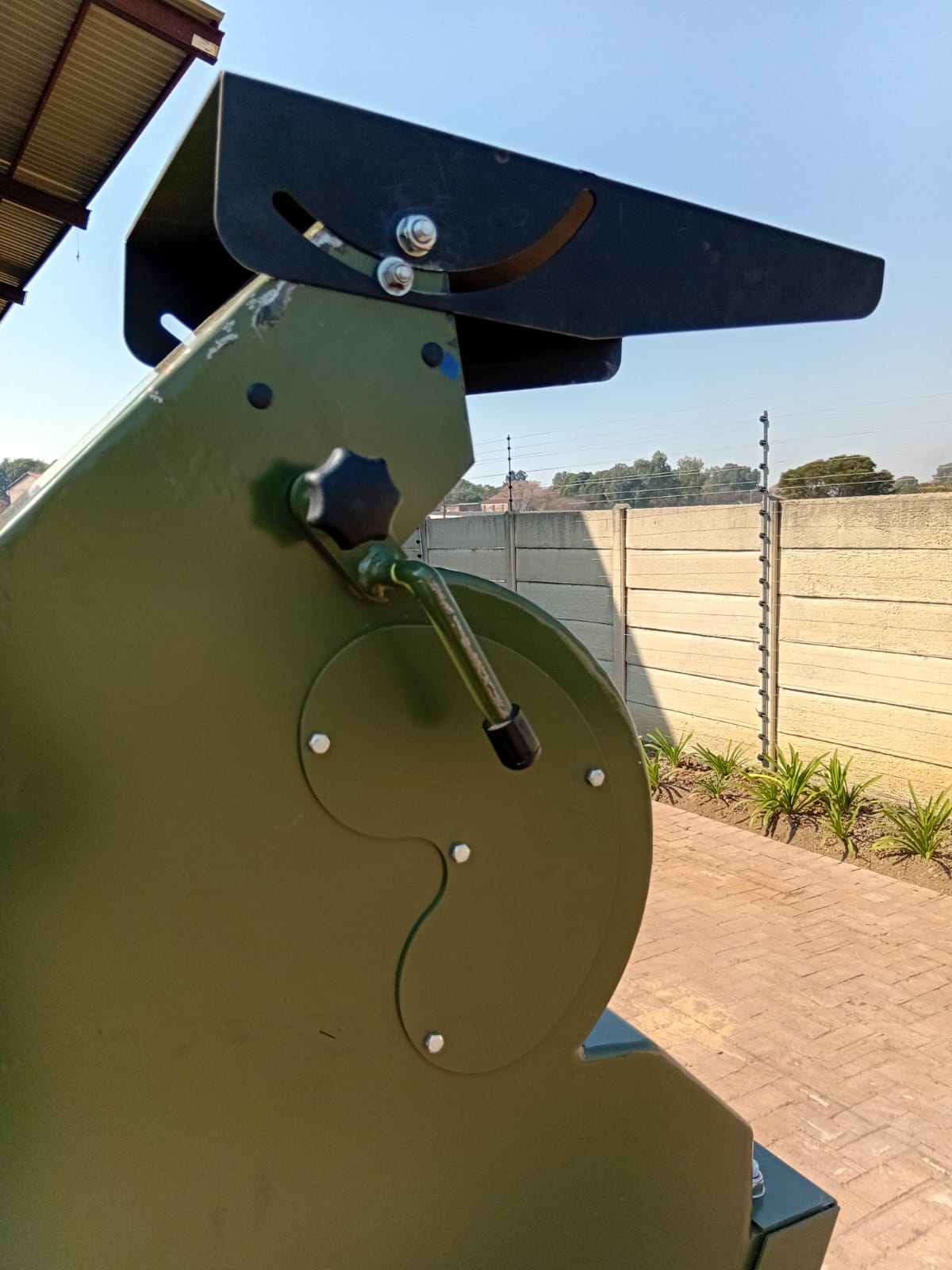

| Discharge | Rotates 360°, with deflector flap |
Power
| Petrol | 35 hp twin-cylinder Briggs & Stratton |
| Diesel | 45 hp Deutz / Kirloskar (heavy-duty trailer) |
| Electric | 22 kW or 30 kW, star-delta starter |
Trailer
| Road use | Roadworthy, lights, indicators, jockey wheel |
| Towing speed | Up to 120 km/h |
| Security | Anti-theft dot-matrix marking with certificate |
| Chassis | 2.5 mm rectangular steel profile |
| Hour meter | Fitted |
