225 Tractor PTO Wood Chipper & Grinder – 190 mm
- Tractor-mounted drum chipper with built-in chip grinder, driven by your tractor's PTO
- Chips brush and branches up to 190 mm diameter

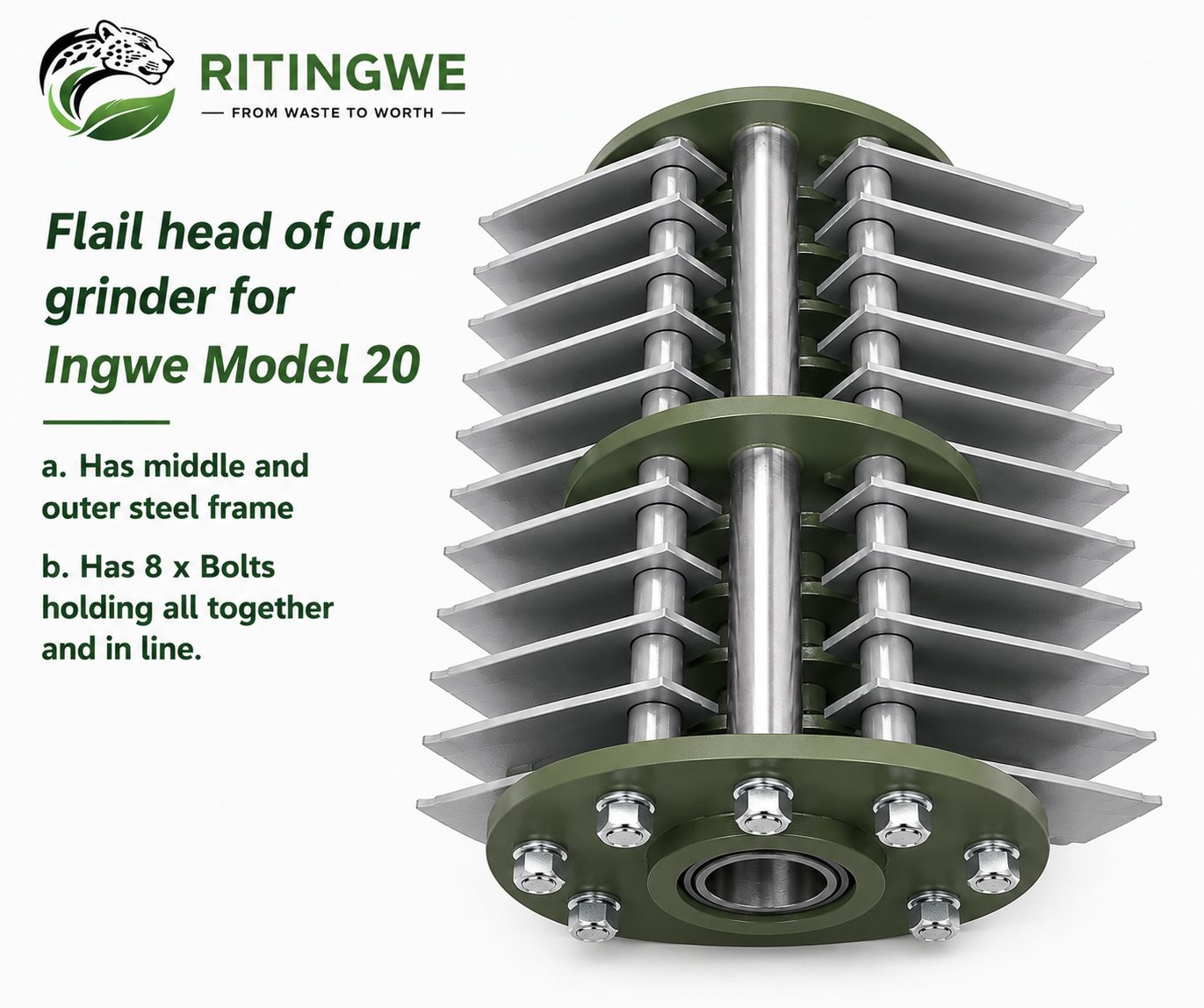

- Flip a lever to grind chips through an 8–20 mm screen for cattle and game feed or fine mulch
- 12–16 m³/h chipping, 4–5 m³/h grinding
- Needs a tractor of 40 kW or more; a 30 kW electric version is also available
- Chipping capacity
- 190 mm diameter, down to brush
- Feed throat
- 258 × 200 mm
- Output, chipping
- 12–16 m³/h
- Output, grinding
- 4–5 m³/h
- Grinding screen
- 8–20 mm
- Drum
- 400 kg, dynamically balanced; 12 mm side wall, 10 mm drum wall, 50 mm shaft
Product Specifications
Product information

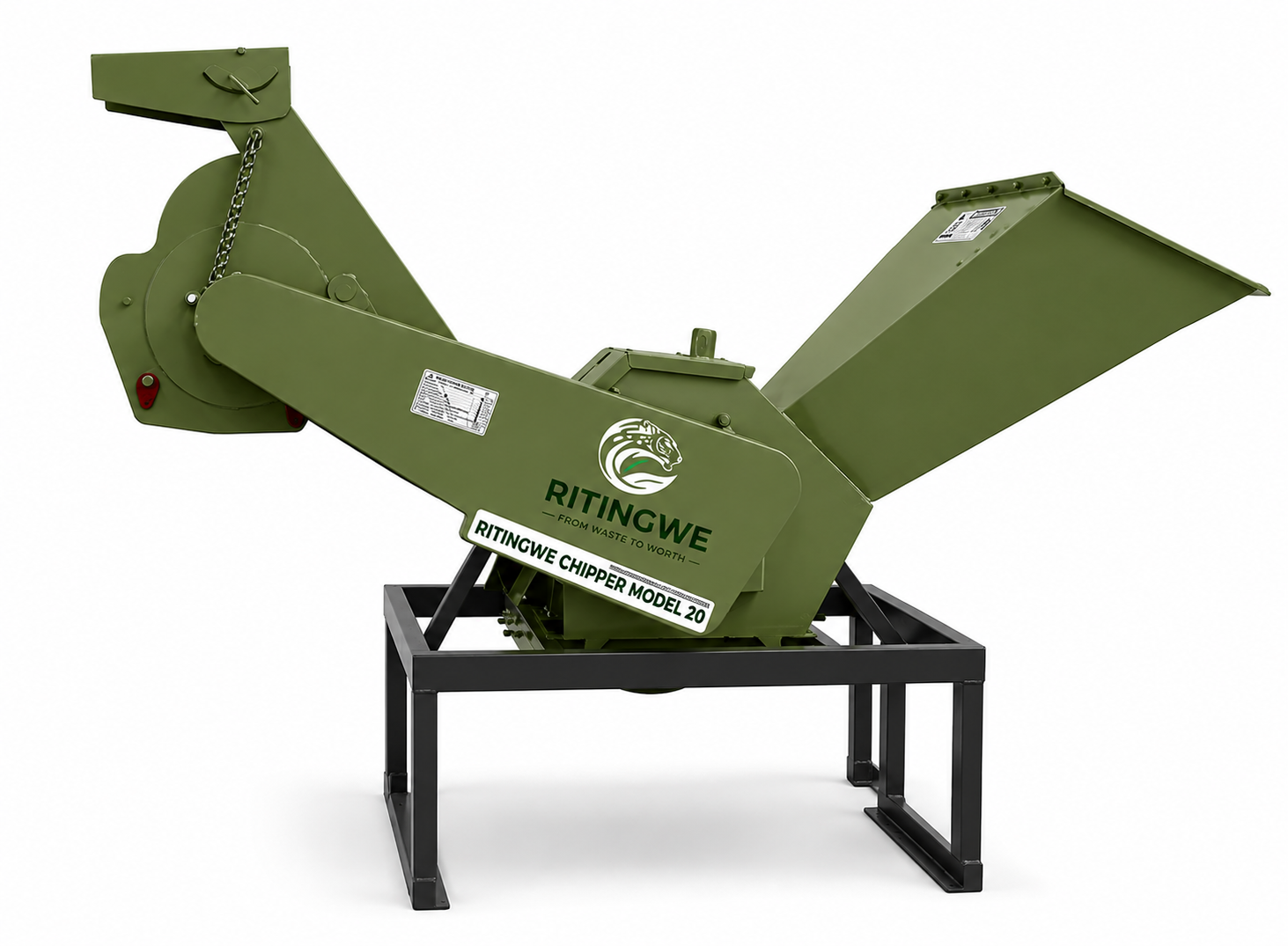

The 225 Tractor Chipper & Grinder is the PTO-driven version of the Ritingwe 225 drum chipper, with a grinder added. It chips branches and brush, and with one lever it grinds the chips into fine material for bush feed, compost or mulch.

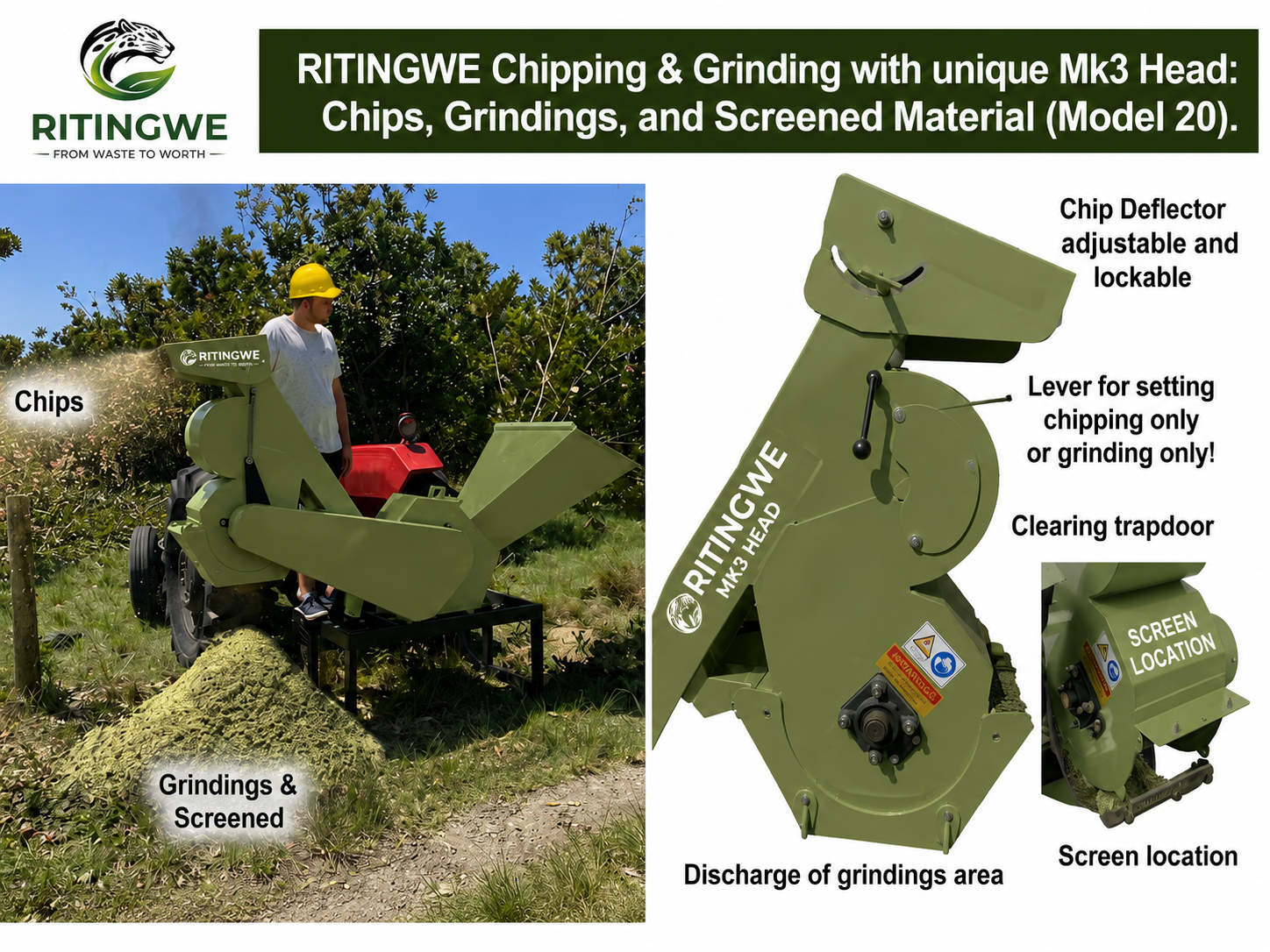

Chip or grind with one lever

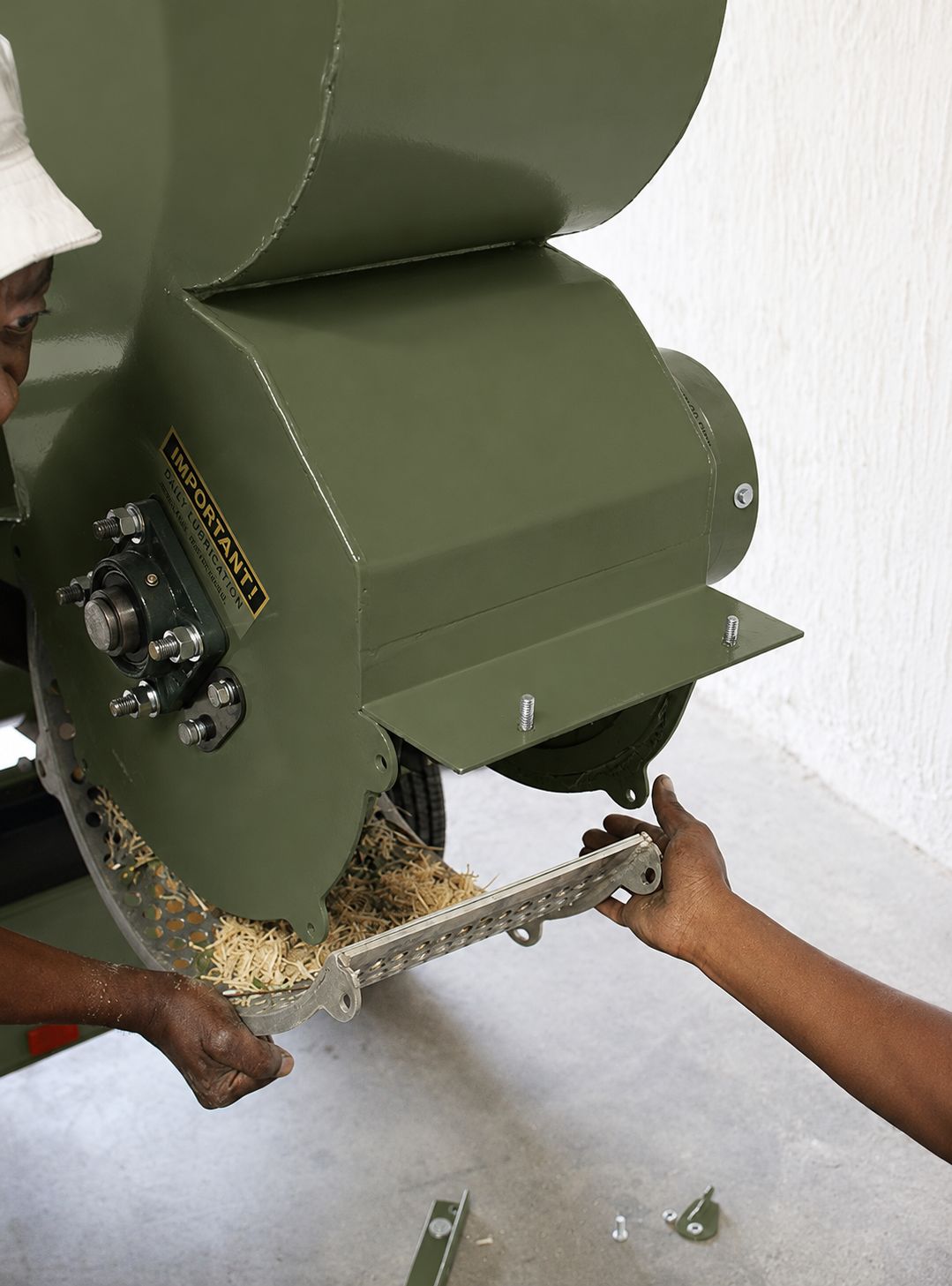

In chipping mode the 400 kg drum cuts wood up to 190 mm into chips at 12–16 m³ per hour. Move the lever and the chips pass through an 8–20 mm grinding screen, producing 4–5 m³ of grindings per hour. Ground bush and selected trees are used as cattle and game feed.
Built to last

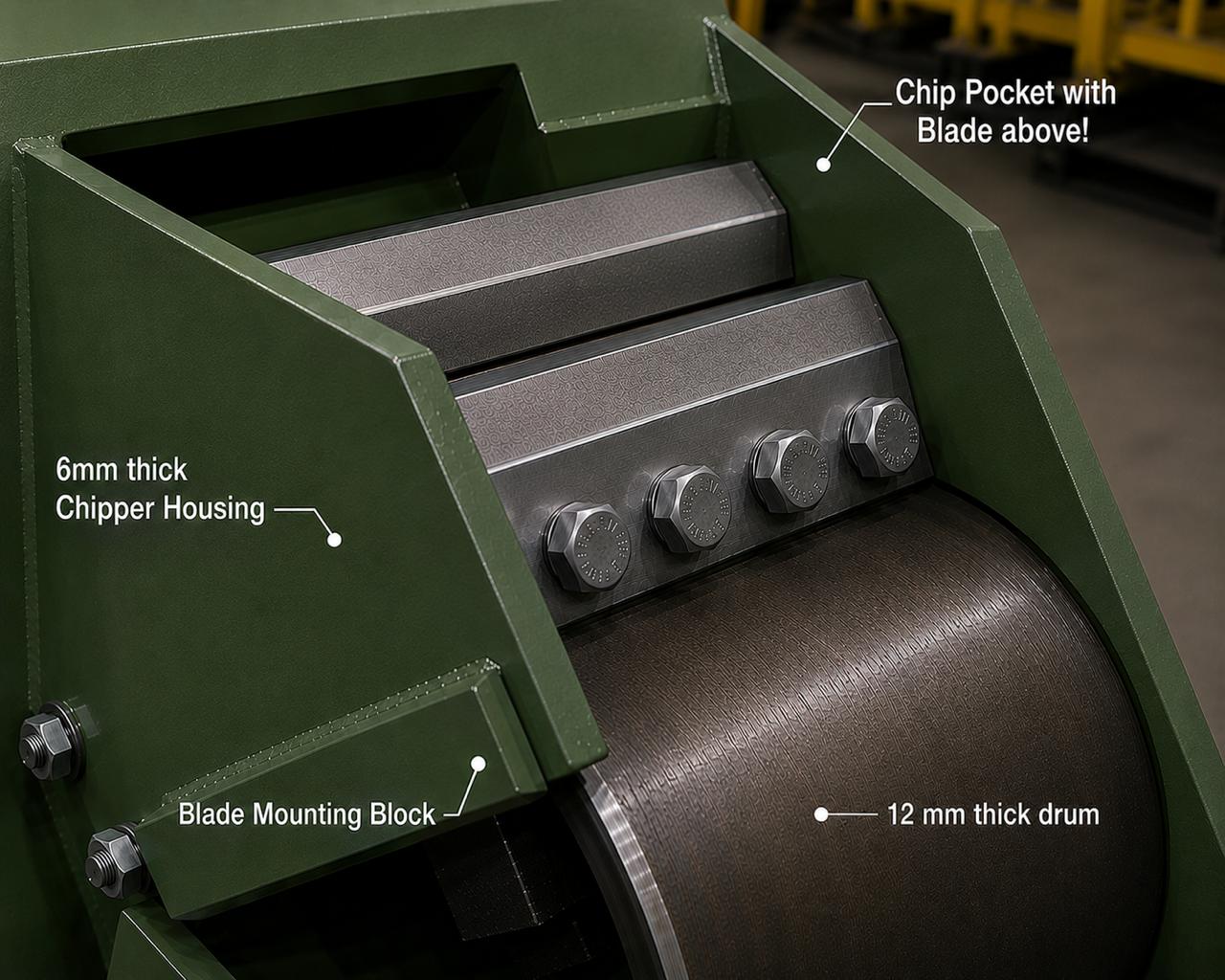

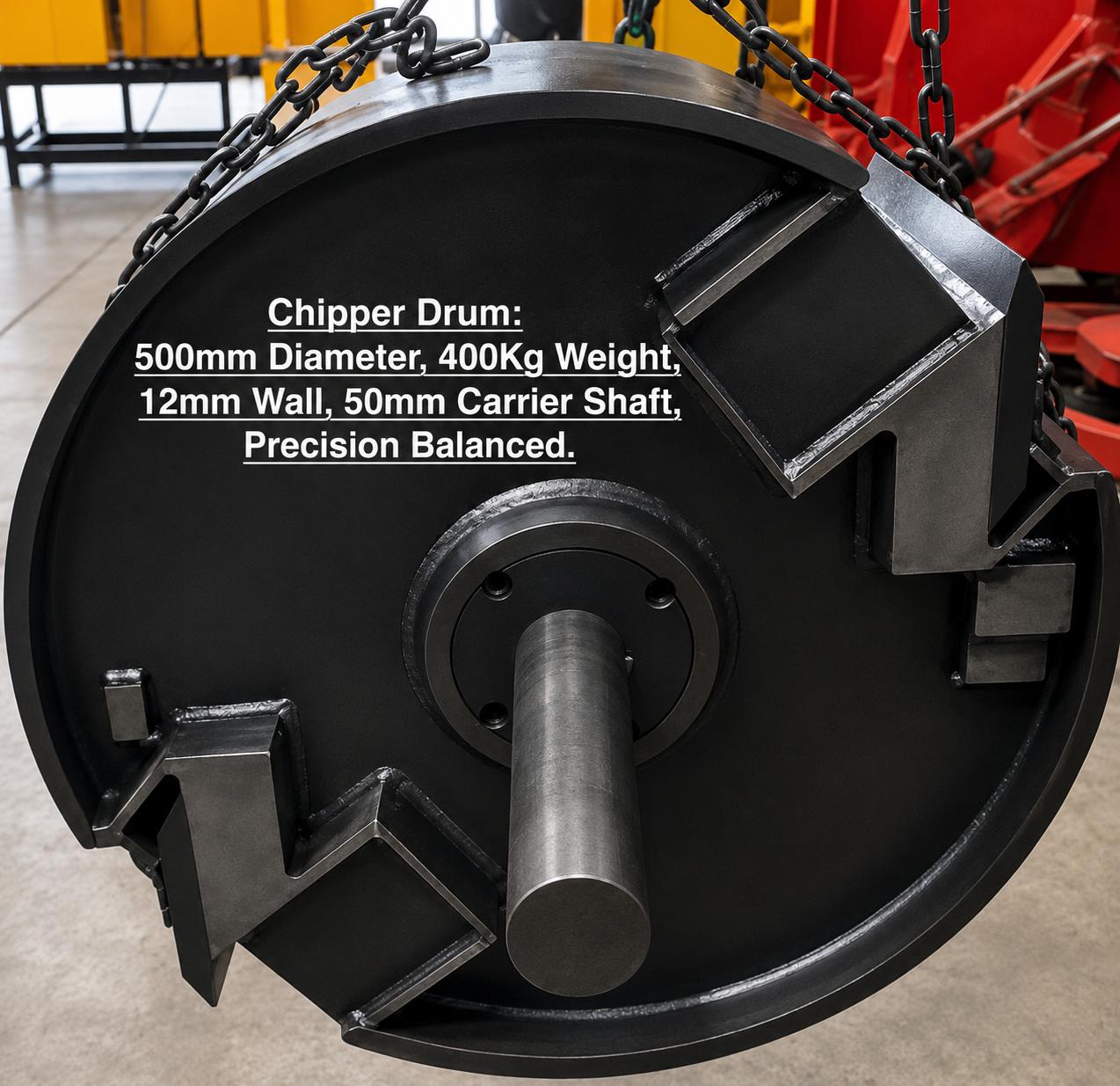

- 400 kg drum, precision balanced, with 12 mm side walls on a 50 mm shaft
- Drain holes in the drum stop trapped water from upsetting the balance

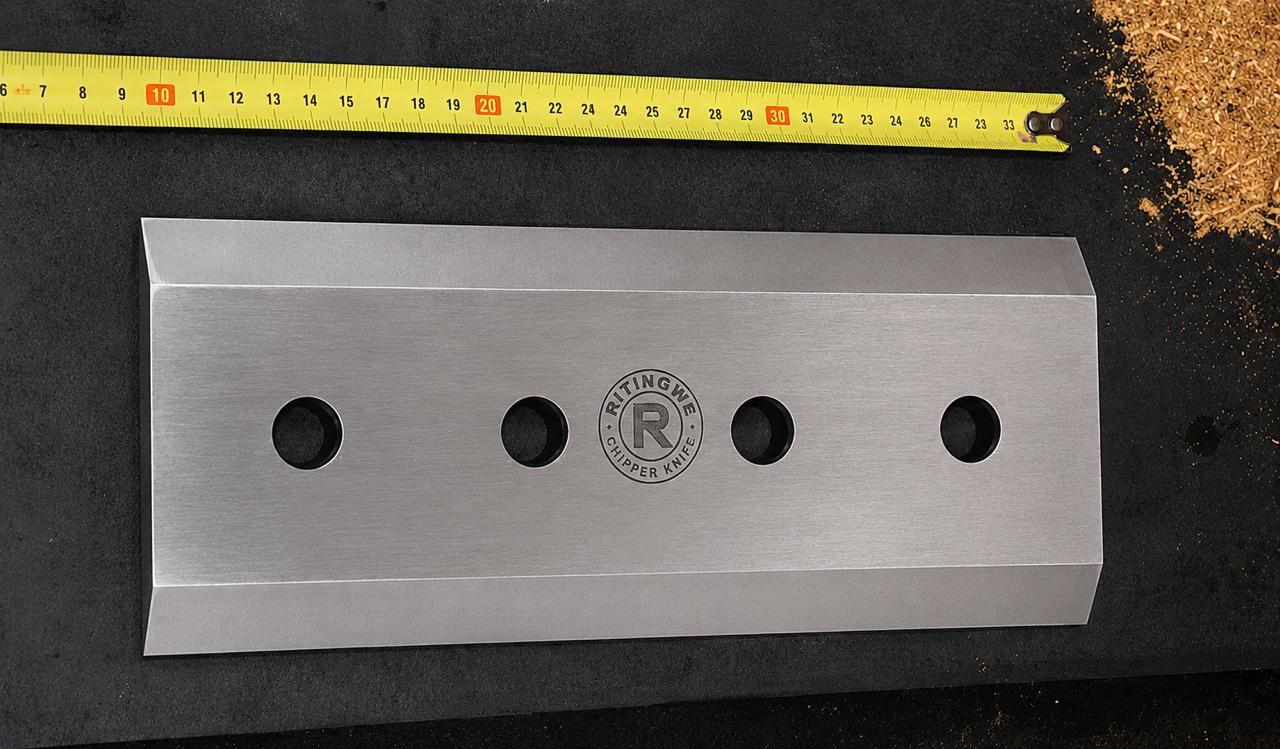

- Two 12 mm double-edged blades, hardened to 47–58 HRC; each edge can be sharpened 5 times

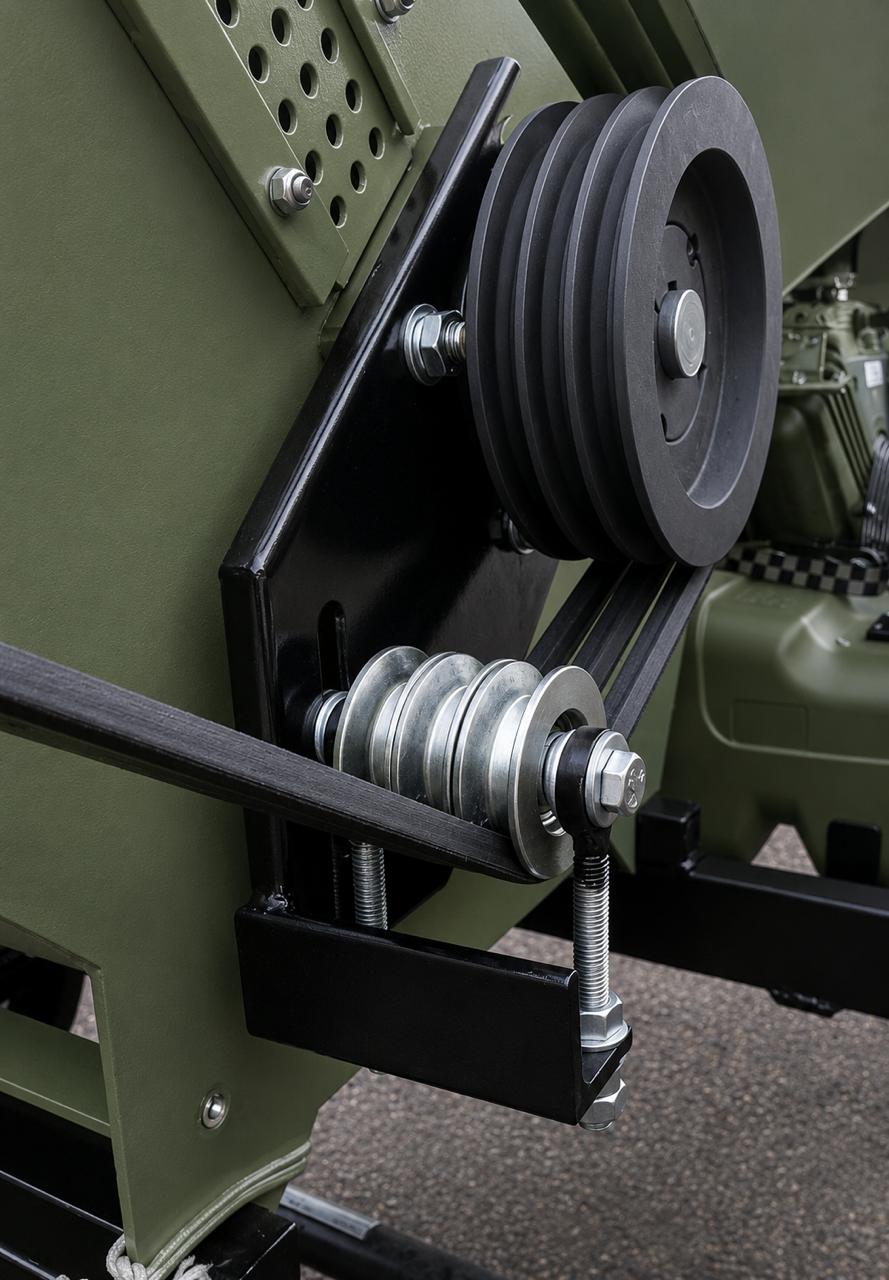

- Four B-section V-belts, so it can run behind large tractors
- Four-sided anvil with locator and locking bolts
- Discharge rotates 360° with a deflector flap
Frequently asked questions
What size tractor do I need?
A tractor of 40 kW or more with a PTO.
Can it run without a tractor?
Yes. It can be fitted with a 30 kW electric motor, ideal for sawmill waste and tea tree, eucalyptus or lavender chippings.
How much does it grind per hour?
About 4–5 m³ of grindings per hour, depending on the material.
Is there a version without the grinder?
Yes, the standard 225 tractor chipper, and a 90-degree version for chipping prunings down orchard rows.
Full specifications
Capacity
| Chipping capacity | 190 mm diameter, down to brush |
| Feed throat | 258 × 200 mm |
| Output, chipping | 12–16 m³/h |
| Output, grinding | 4–5 m³/h |
| Grinding screen | 8–20 mm |
Drum & blades
| Drum | 400 kg, dynamically balanced; 12 mm side wall, 10 mm drum wall, 50 mm shaft |
| Drum drive | 4 × B-section V-belts |
| Blades | 2 × 12 mm, double-edged, hardened 47–58 HRC |
| Blade life | Up to 5 sharpenings per edge (min. width 115 mm) |
| Discharge | Rotates 360°, with deflector flap |
Power
| Drive | Tractor PTO |
| Minimum tractor | 40 kW |
| Electric option | 30 kW motor with control box |
