Model 20 (225) Tractor PTO Wood Chipper – 190 mm
Wood Chippers Ritingwe Model 20 (225)

Model 20 (225) Tractor PTO Wood Chipper – 190 mm

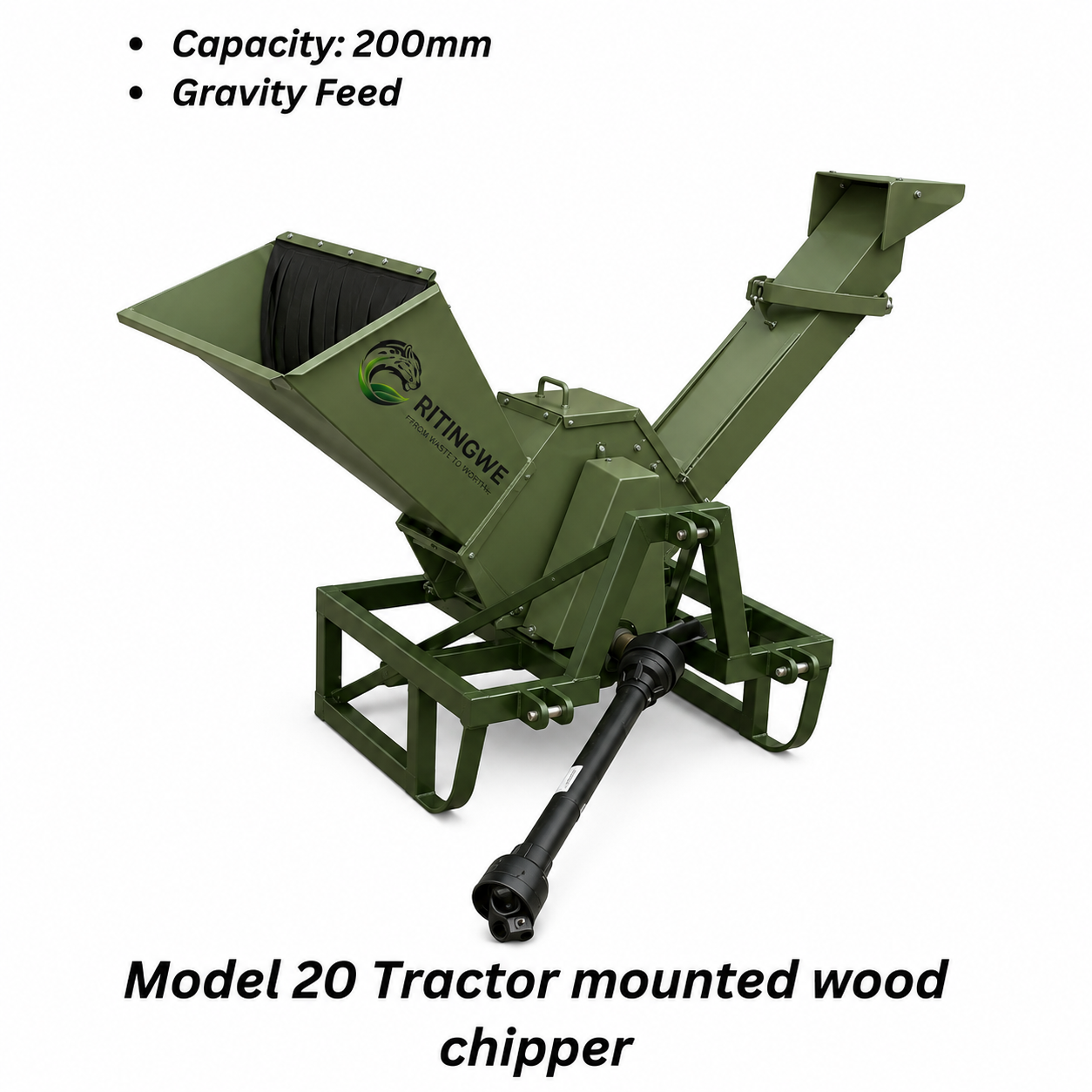

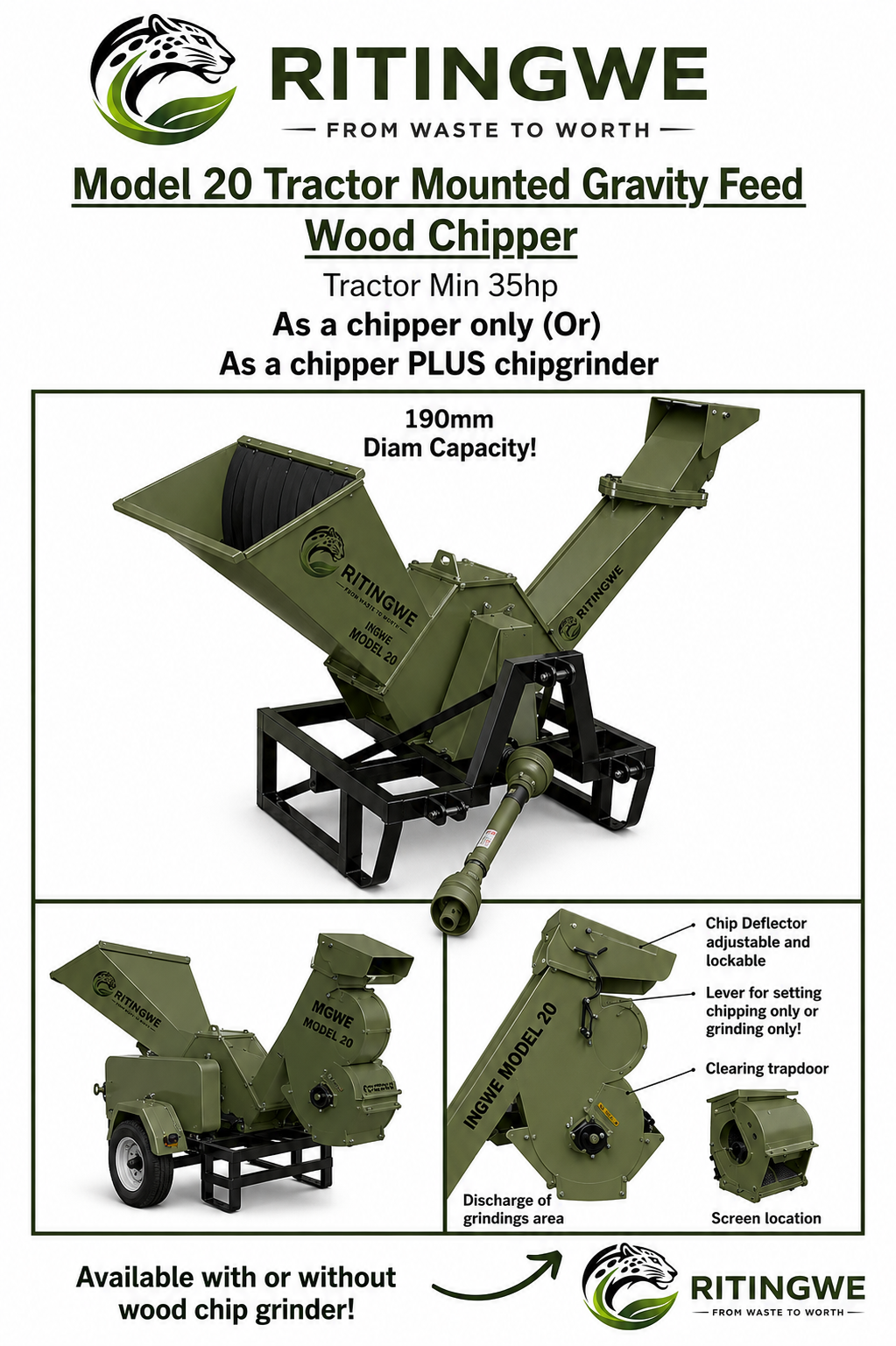

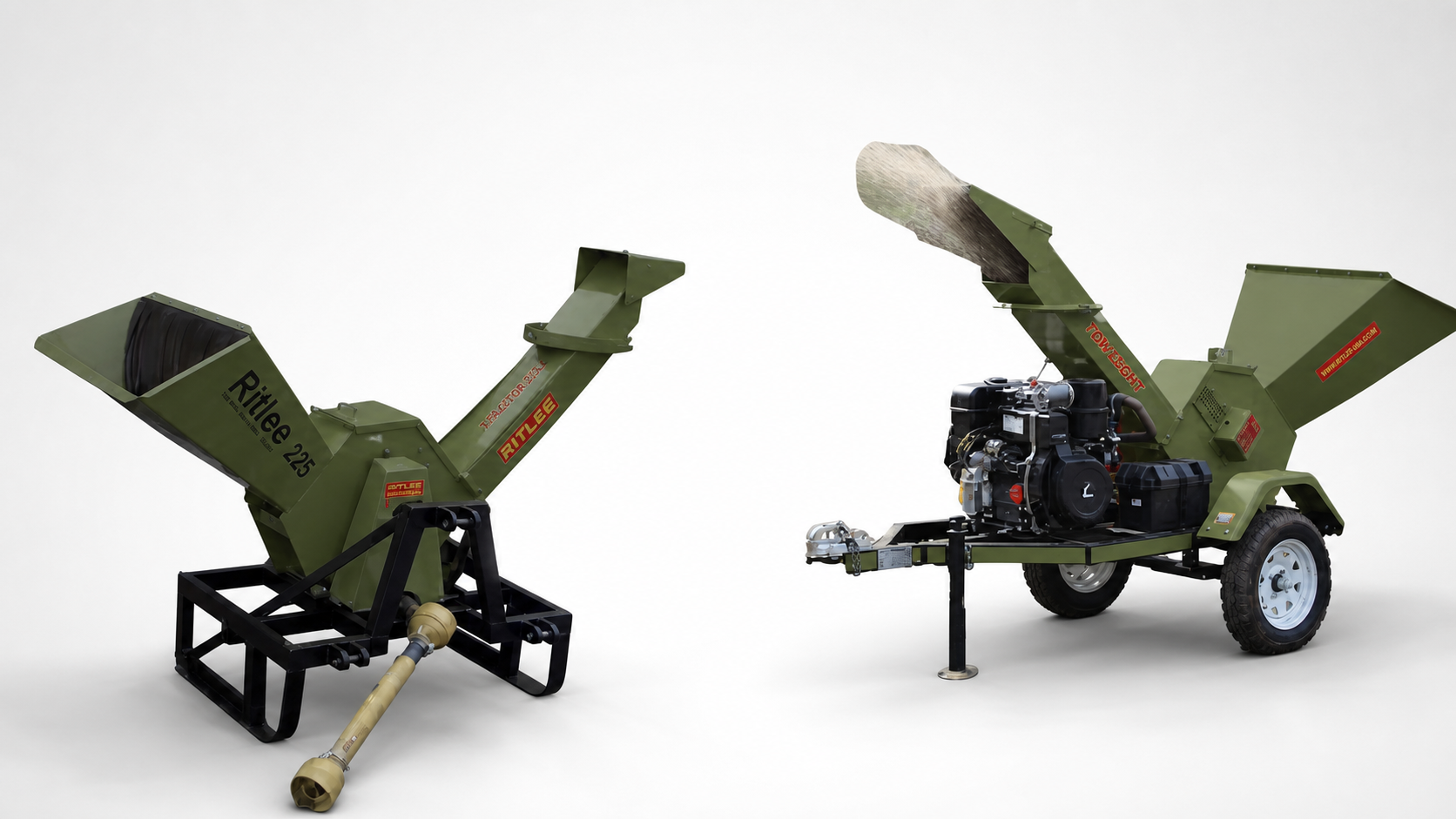

  • Tractor-mounted, PTO-driven drum chipper – uses your tractor's power, no separate engine
  • Chips brush and branches up to 190 mm diameter at 12–16 m³ per hour
  • Heavy 400 kg drum with two double-edged, resharpenable blades
  • Needs a tractor of 40 kW or more

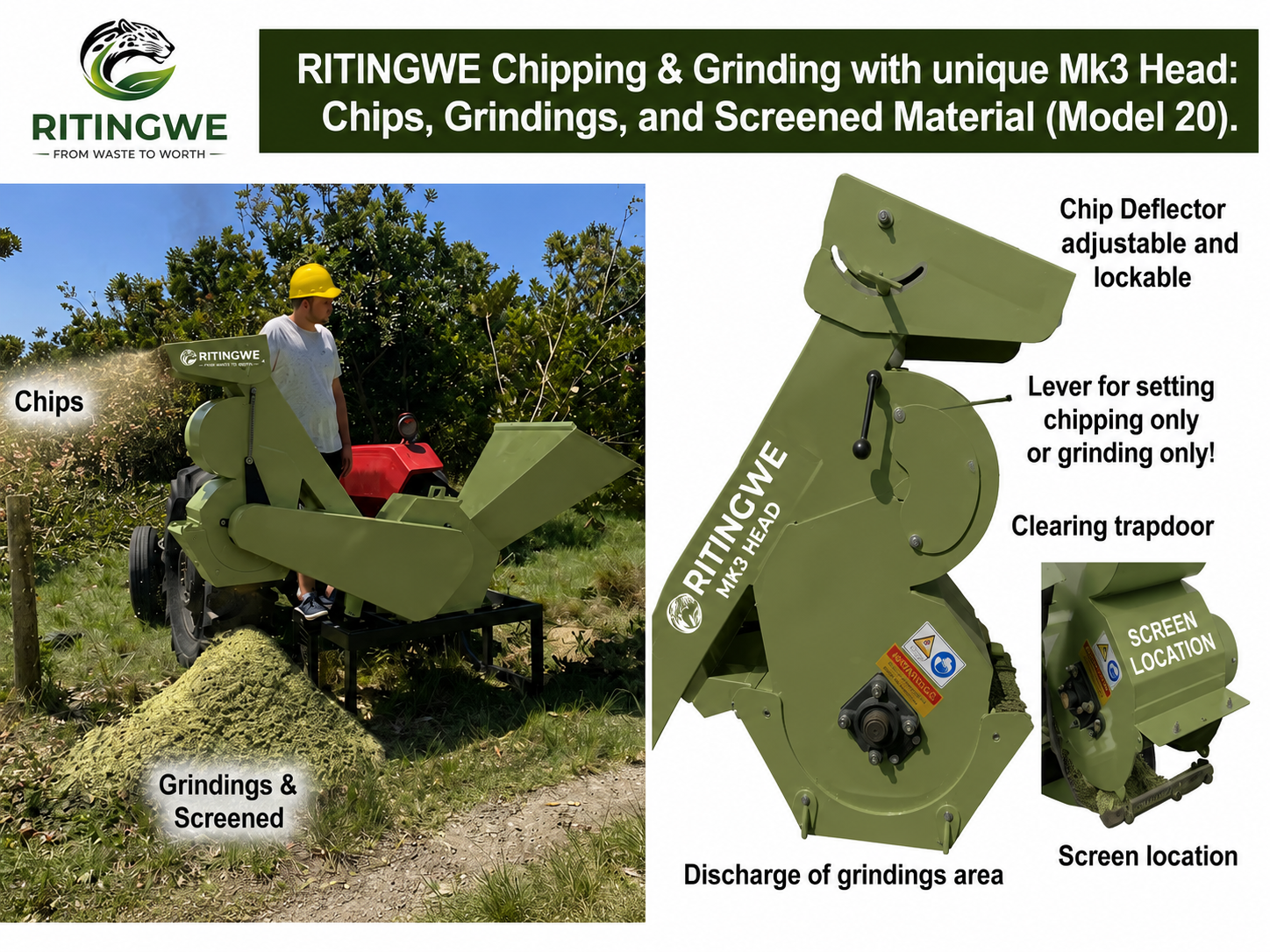

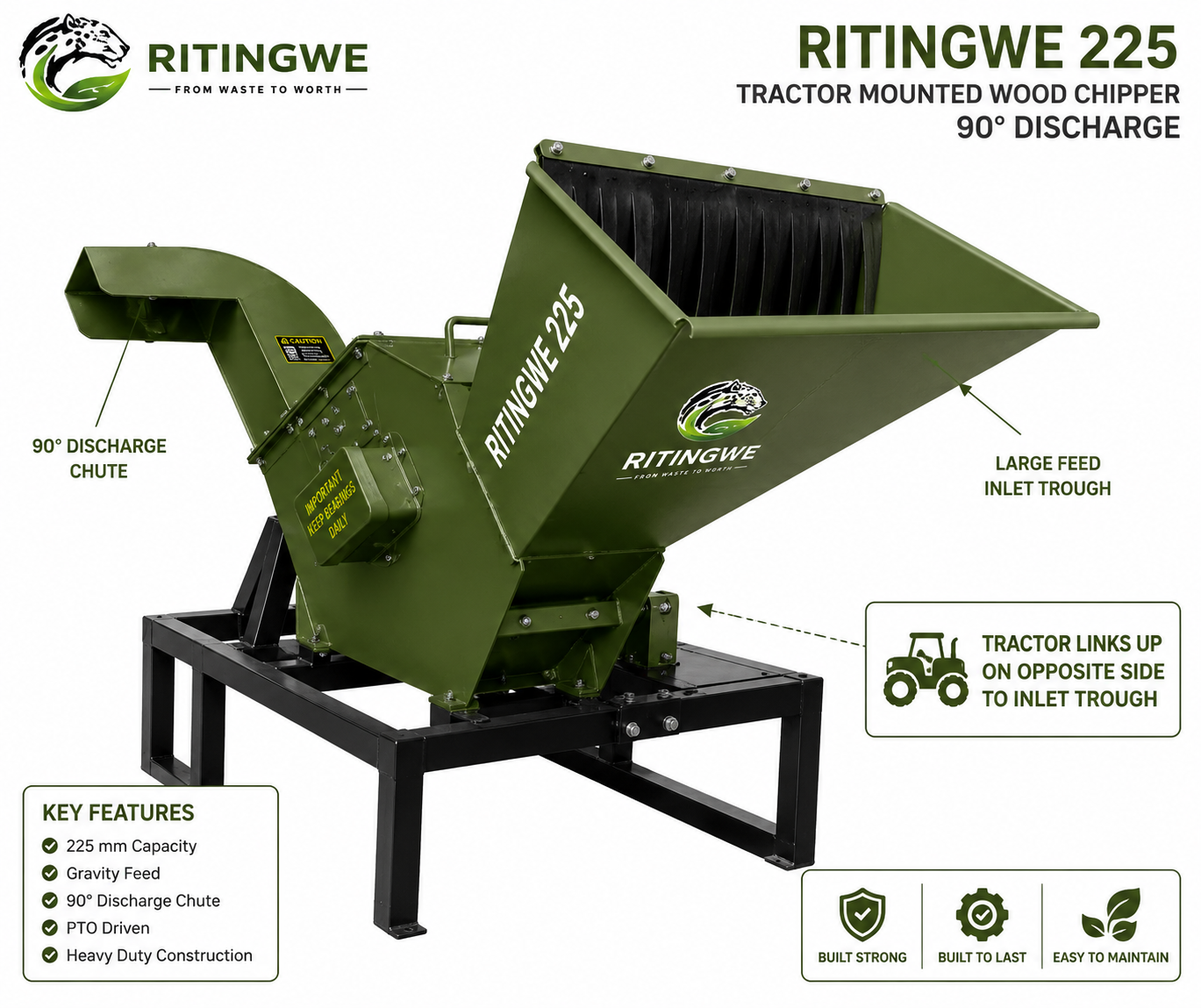

  • Also available with a chip grinder or a 90-degree chute for orchard rows
Chipping capacity
190 mm diameter, down to brush

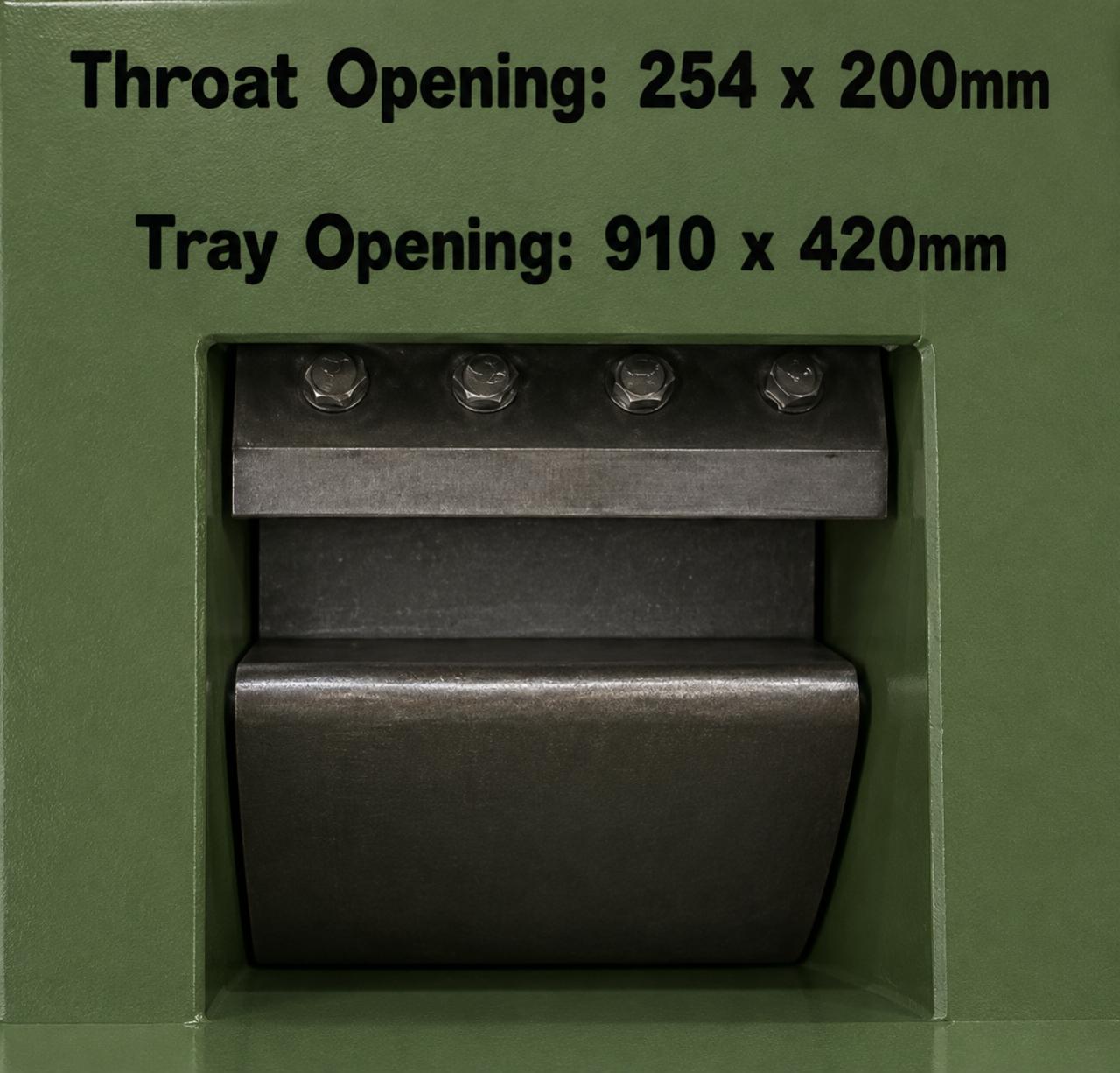

Feed throat
258 × 200 mm
Output
12–16 m³/h
Drum
400 kg, dynamically balanced; 12 mm side wall, 10 mm drum wall, 50 mm shaft
Drum drive
4 × B-section V-belts
Blades
2 × 12 mm, double-edged, hardened 47–58 HRC
Request a Quote

Product Specifications

Product information

The Model 20 (225) is the standard tractor-mounted version of the Ritingwe 225 drum chipper. It runs off the tractor's PTO, so there is no engine to buy or service, and it goes wherever the tractor can.

Where it works best

  • Orchard and citrus prunings chipped between the rows
  • Bulking material for composting
  • Mulch for gardens, estates and flower beds
  • Land clearing and eucalyptus branches on farms

Built to last

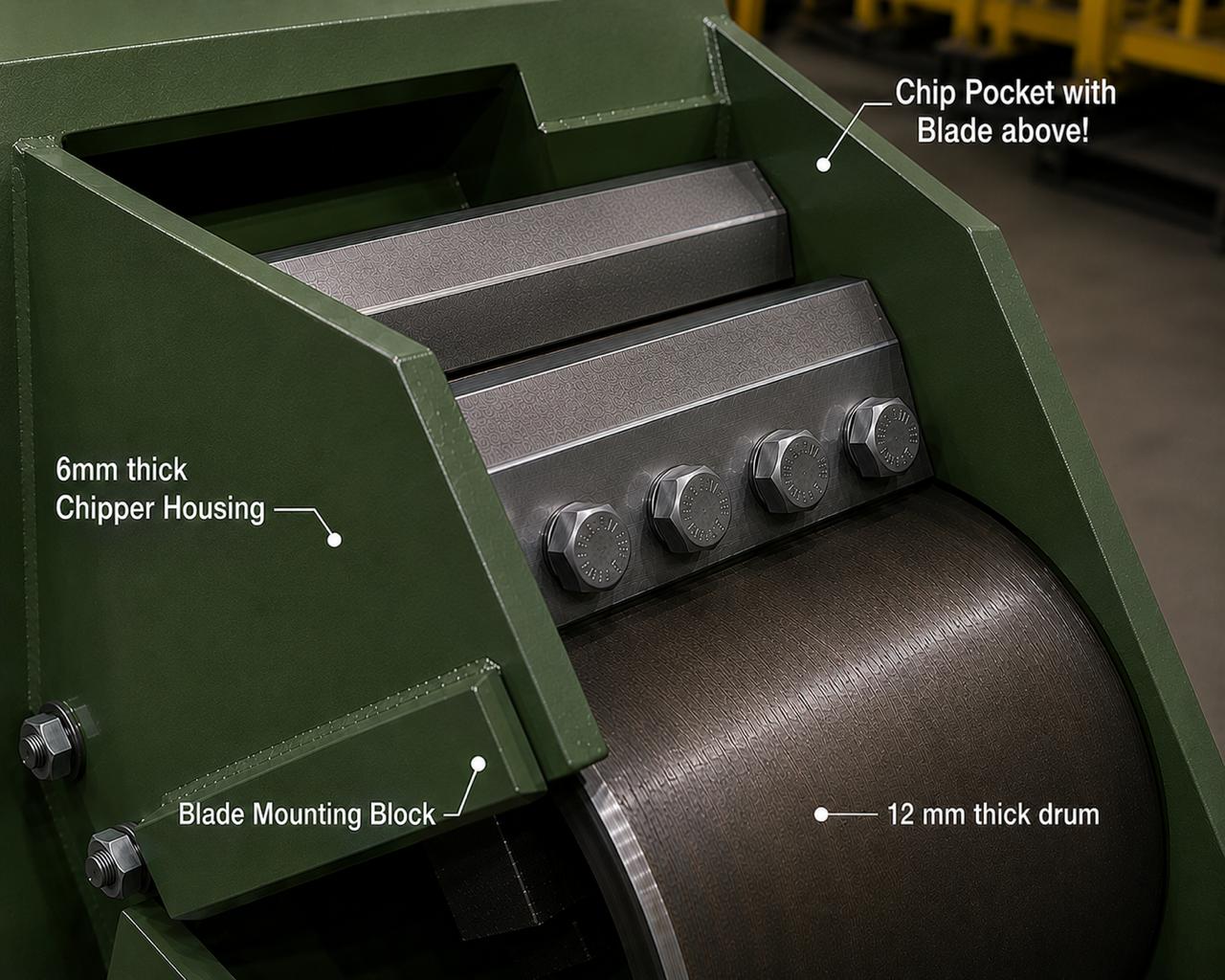

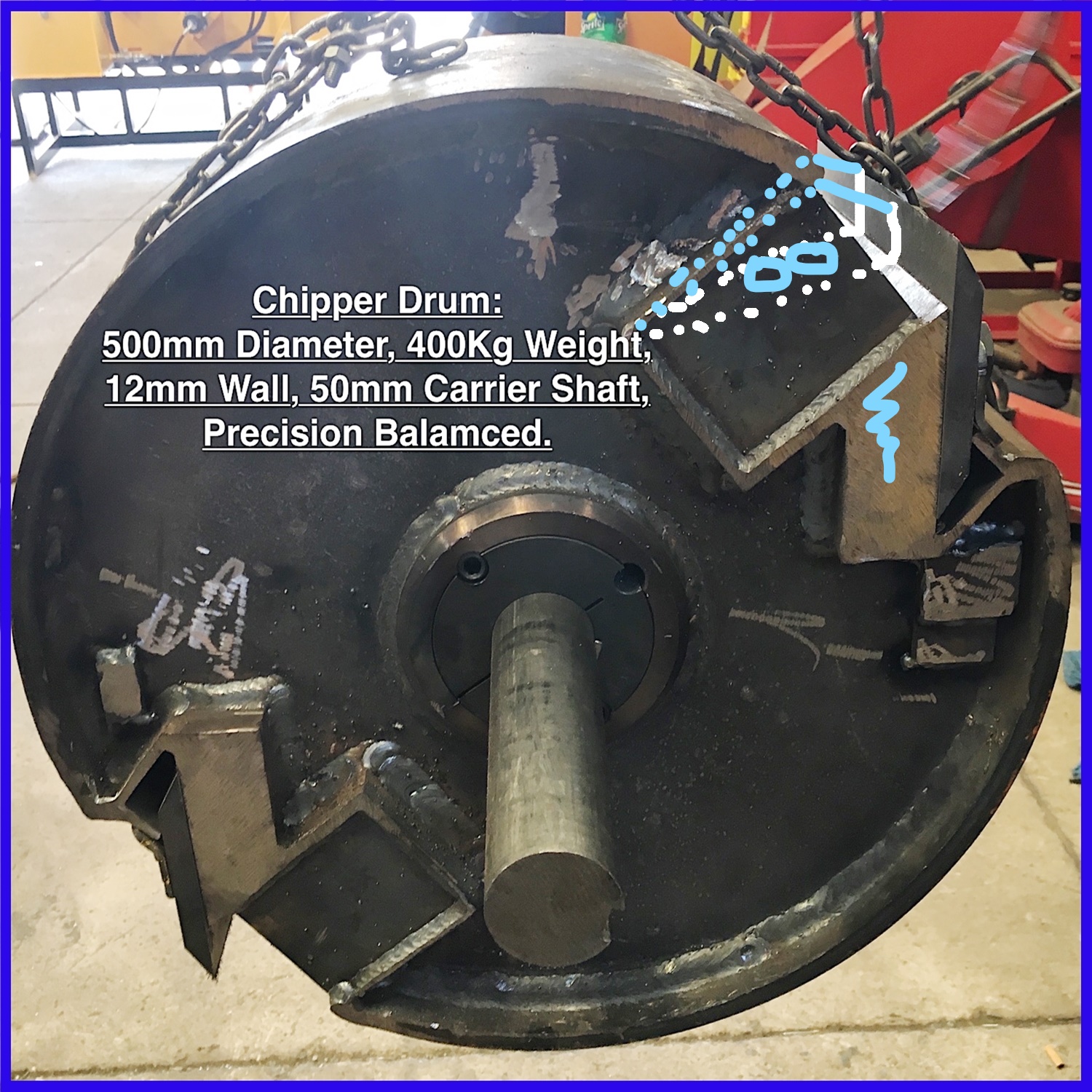

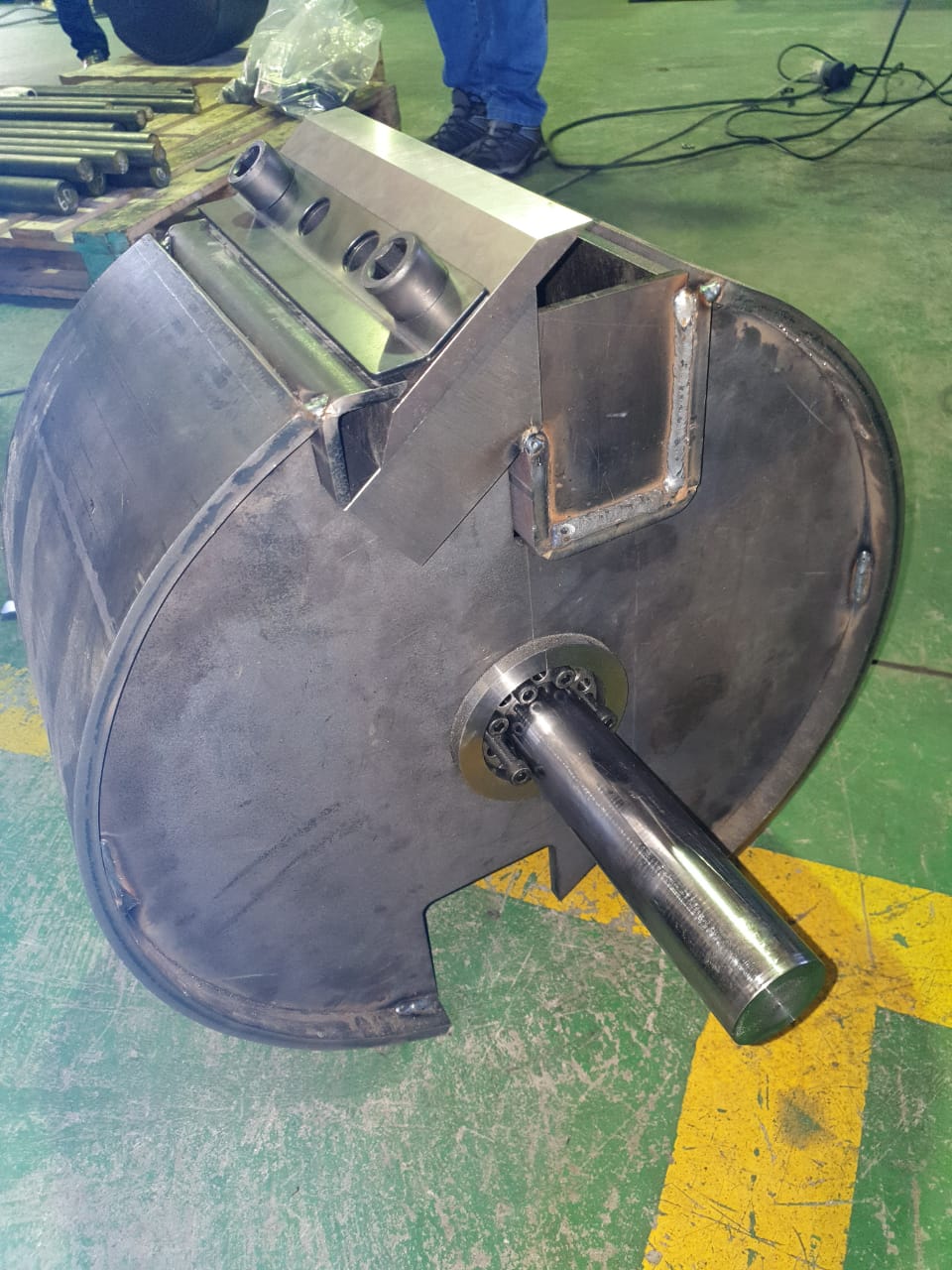

  • 400 kg drum, precision balanced, with 12 mm side walls on a 50 mm shaft

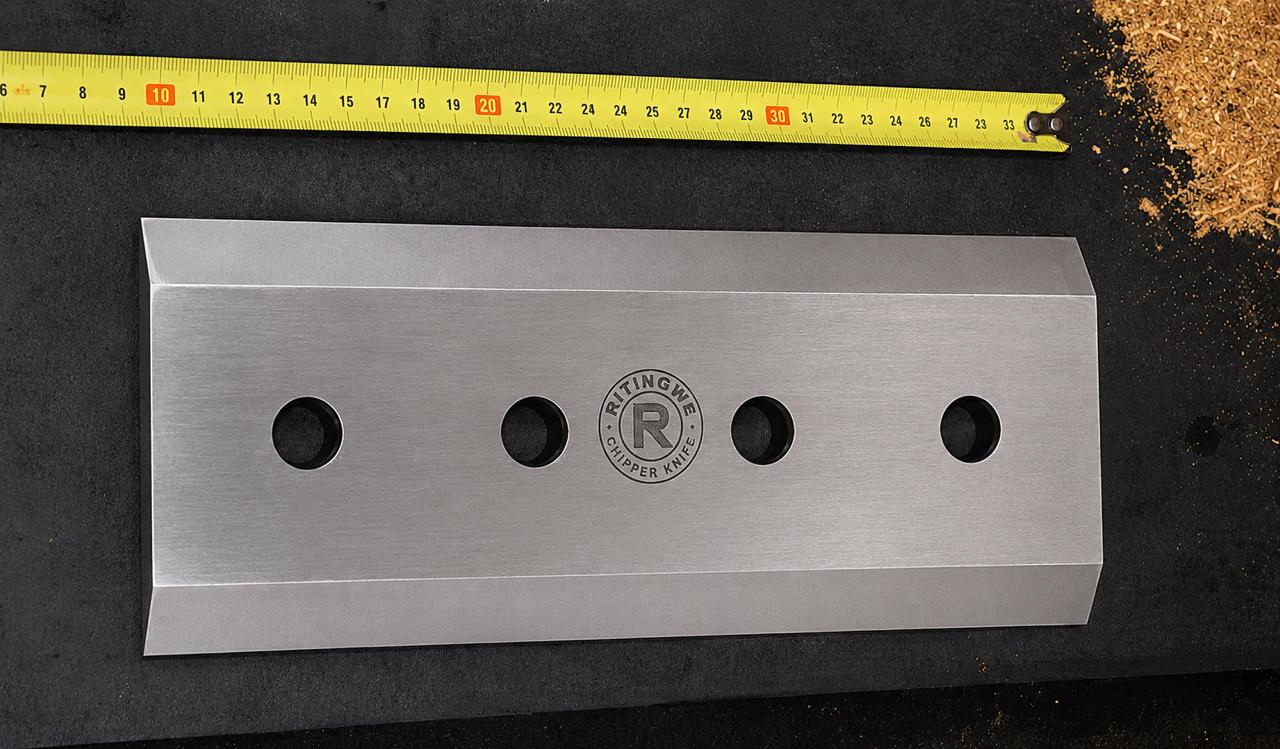

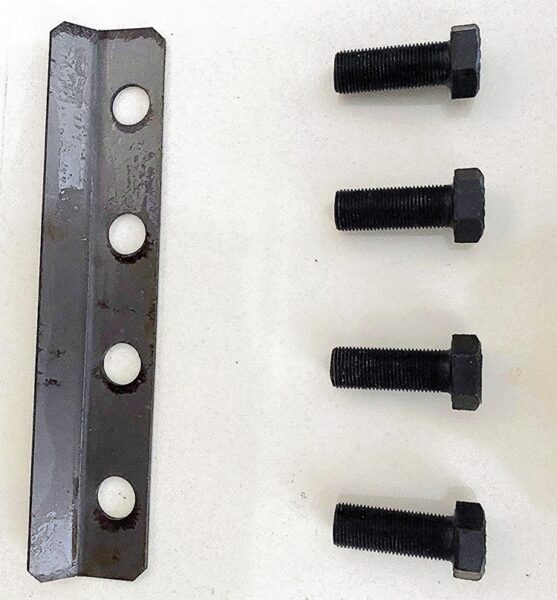

  • Two 12 mm double-edged blades, hardened to 47–58 HRC; each edge can be sharpened 5 times

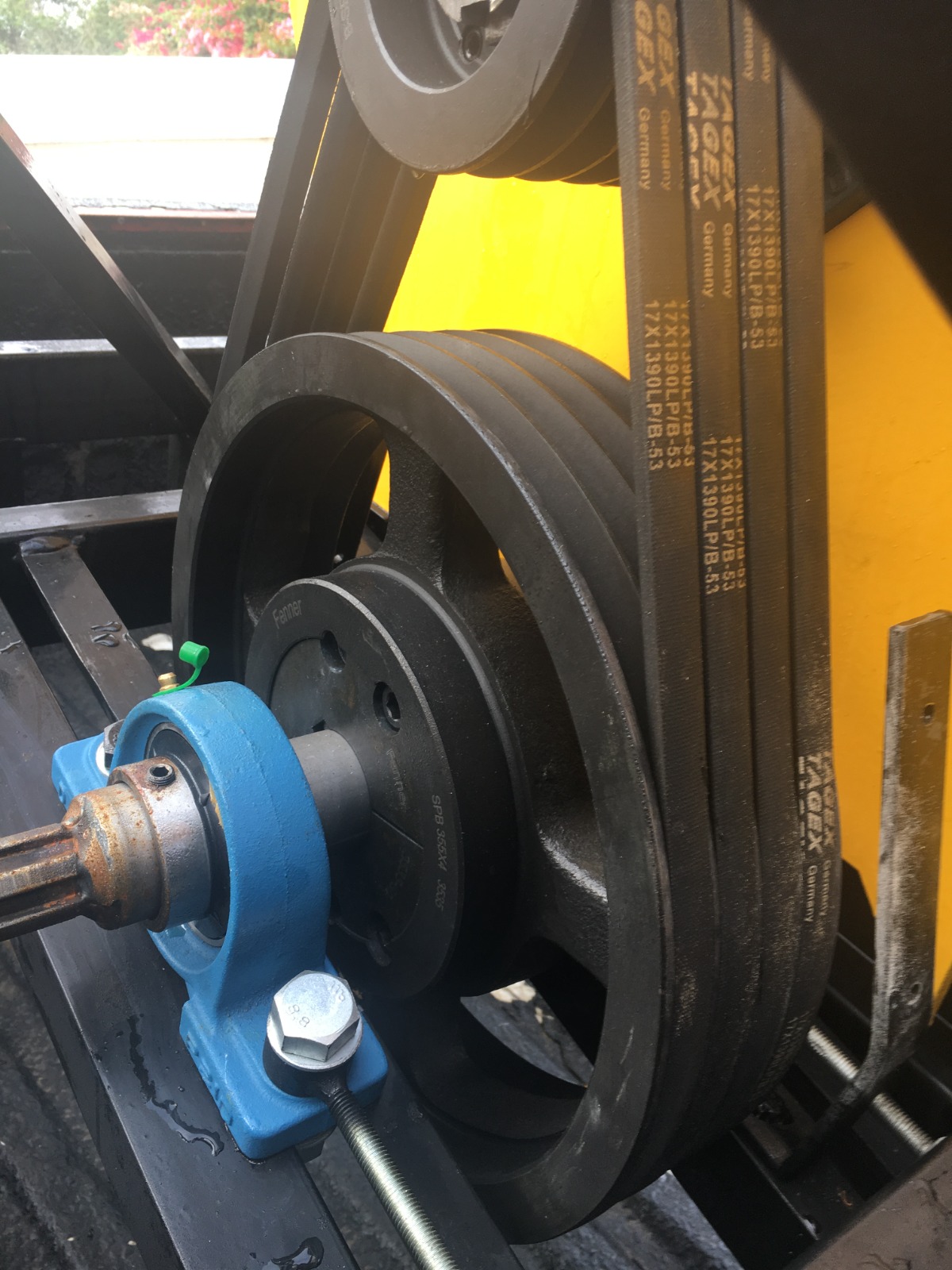

  • Four B-section V-belts for large tractors
  • Discharge rotates 360° with a deflector flap

Frequently asked questions

What size tractor do I need?

A tractor of 40 kW or more with a PTO.

Can I add a grinder later?

The 225 is also built as a chipper with grinder. Ask us which model suits your work.

Is there an electric version?

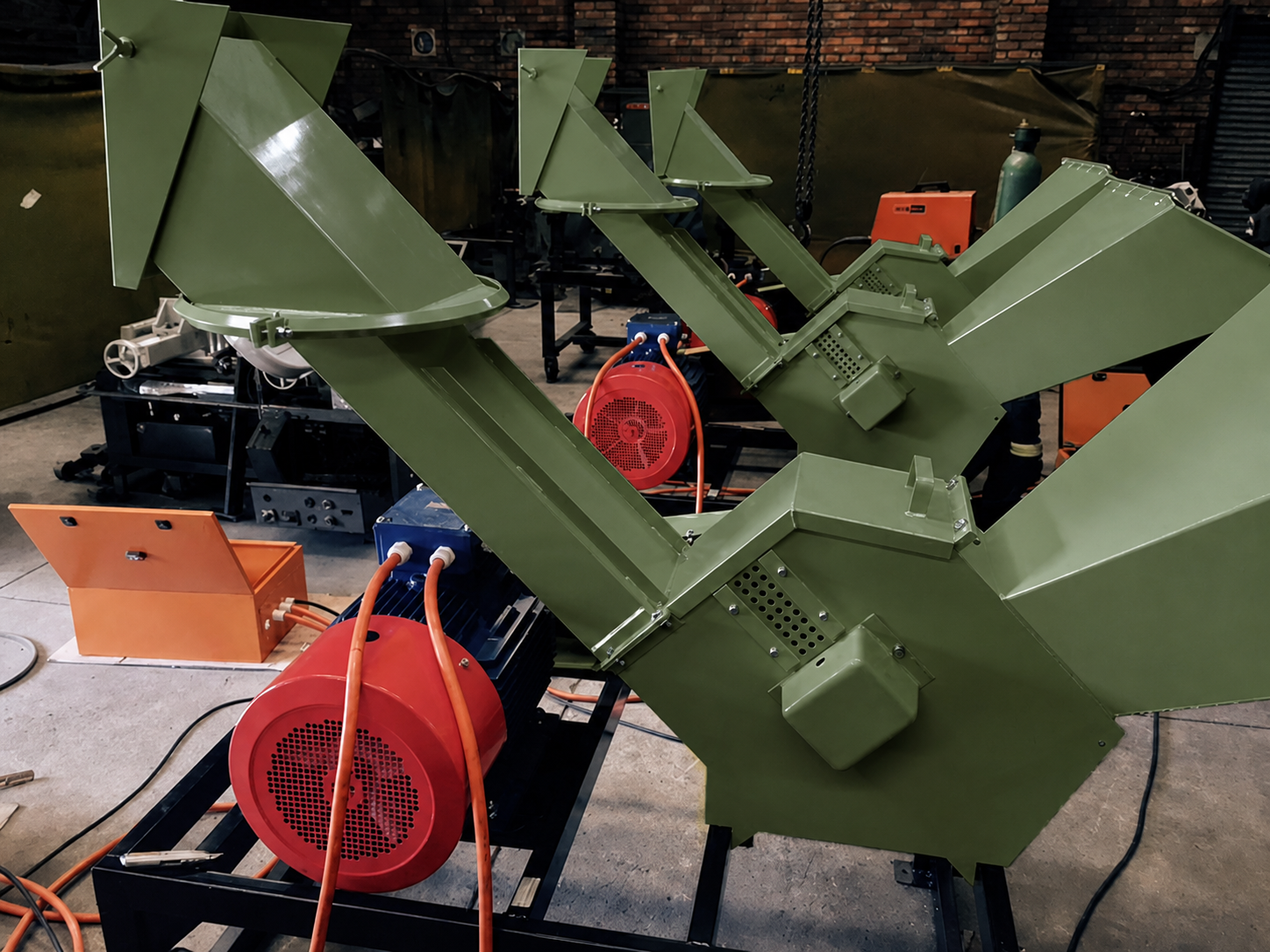

Yes, it can be fitted with a 30 kW electric motor for fixed sites such as sawmills.

Full specifications

Capacity

Chipping capacity 190 mm diameter, down to brush
Feed throat 258 × 200 mm
Output 12–16 m³/h

Drum & blades

Drum 400 kg, dynamically balanced; 12 mm side wall, 10 mm drum wall, 50 mm shaft
Drum drive 4 × B-section V-belts
Blades 2 × 12 mm, double-edged, hardened 47–58 HRC
Discharge Rotates 360°, with deflector flap

Power

Drive Tractor PTO
Minimum tractor 40 kW
Electric option 30 kW motor
